Z10 5K UHD Infrared Thermal Imaging Binoculars 60MP Digital Night Vision Binoculars Camera for Hunting Outdoor with Flashlight

Observe thermal signatures and detailed low-light scenes with the Ponbos Z10 Dual-Sensor Thermal and Digital Night-Vision Binoculars. The device combines a 256 × 192 thermal imaging channel with a separate 4MP GC4653 visible-light sensor, allowing users to view, photograph, and record outdoor scenes during daylight, low light, and complete darkness.

The Z10 features a 7 mm F1.0 thermal objective lens, a separate 25 mm digital-camera lens, a 3.99-inch TFT display, 5W 850 nm infrared illumination, up to 10x digital zoom, and support for TF memory cards up to 128GB.

Its rechargeable 10,000mAh battery and compact handheld design make it suitable for wildlife observation, property monitoring, camping, farm inspection, outdoor exploration, and general night-time viewing.

Key Features

• Dual thermal and digital night-vision imaging

• 256 × 192 thermal detector

• 7 mm F1.0 thermal objective lens

• Wide 24.8° × 18.7° thermal field of view

• 4MP GC4653 visible-light sensor

• Separate 25 mm digital-camera lens

• 3.99-inch TFT colour display

• Up to 10x digital zoom

• 5W 850 nm infrared illuminator

• Nine infrared brightness levels

• Video recording up to listed 5K resolution

• Photo capture up to listed 60MP

• TF card support from 4GB to 128GB

• Rechargeable 10,000mAh battery

• USB Type-C connection

• Integrated flashlight

• Operating temperature from approximately -20°C to 60°C

• CE certification, subject to verification

Product Specifications

• Brand: Ponbos

• Model: Z10

• Product Type: Dual-Sensor Thermal and Digital Night-Vision Binoculars

• Thermal Detector Resolution: 256 × 192 Pixels

• Thermal Detector Type: Confirm Before Publishing

• Thermal Pixel Pitch: Confirm Before Publishing

• Thermal Sensitivity: Confirm NETD Before Publishing

• Thermal Spectral Range: Approximately 8–14 μm

• Thermal Objective Lens: 7 mm

• Thermal Lens Aperture: F1.0

• Thermal Field of View: Approximately 24.8° × 18.7°

• Listed Thermal Viewing Distance: Approximately 1–150 m

• Visible-Light Sensor: GC4653

• Visible-Light Sensor Resolution: 4MP

• Visible-Light Objective Lens: 25 mm

• Lens Type: Listed as Catadioptric, subject to verification

• Display Type: TFT

• Display Size: 3.99 Inches

• Display Resolution: Confirm Before Publishing

• Digital Zoom: Up to 10x

• Infrared Illuminator: 5W, 850 nm

• Infrared Brightness Levels: Nine

• Integrated Flashlight: Supported

• Video Recording: Supported

• Listed Video Resolutions: 5K, 4K, 2K, and 1080p

• Photo Capture: Supported

• Listed Photo Resolutions: 60MP, 42MP, 36MP, 30MP, and 24MP

• Native Media Resolution: Confirm Before Publishing

• Storage Type: TF or MicroSD Card

• Supported Storage Capacity: 4GB to 128GB

• USB Interface: USB Type-C

• Battery Type: Rechargeable Lithium Battery

• Battery Voltage: 3.7V

• Battery Capacity: 10,000mAh

• Operating Time: Confirm Before Publishing

• Charging Time: Confirm Before Publishing

• Operating Temperature: Approximately -20°C to 60°C

• Protection Rating: Confirm Before Publishing

• Dimensions: Approximately 170 × 150 × 57 mm

• Weight: Approximately 0.48 kg

• Certification: CE, subject to document verification

• Country of Origin: China

Dual-Sensor Imaging System

The Ponbos Z10 combines two separate imaging technologies.

Thermal Imaging Channel

The thermal channel detects infrared energy emitted by people, animals, equipment, and surrounding objects. It can generate an image without relying on visible light.

Digital Night-Vision Channel

The GC4653 visible-light camera captures conventional scene detail and can use the integrated 850 nm infrared illuminator in dark environments.

The final product page should explain how users switch between thermal, visible-light, and infrared-assisted viewing modes.

256 × 192 Thermal Detector

The thermal channel uses a listed resolution of 256 × 192 pixels.

This configuration may support:

• Heat-source detection in darkness

• Broad-area outdoor scanning

• Wildlife observation

• General property monitoring

• Compact and lightweight construction

• Thermal viewing in visually difficult environments

Actual thermal performance depends on detector quality, pixel pitch, NETD, weather, humidity, target size, and temperature contrast.

Thermal Detector Details

The supplier information does not include the detector material, pixel pitch, or NETD value.

Before publication, confirm:

• VOx or amorphous-silicon detector

• Cooled or uncooled design

• Pixel pitch

• NETD thermal sensitivity

• Frame rate

• Sensor manufacturer

• Image-processing modes

These specifications are required to evaluate true thermal-image performance.

7 mm F1.0 Thermal Lens

The thermal imaging system uses a 7 mm objective lens with an F1.0 aperture.

This short focal-length lens is designed to provide a relatively wide viewing area for:

• Close-range observation

• Broad-area scanning

• Wildlife monitoring

• Farm inspection

• Property checks

• Outdoor exploration

Before publication, confirm whether the lens uses germanium optical material and whether focus is fixed or adjustable.

Wide Thermal Field of View

The listed thermal field of view is approximately:

• Horizontal: 24.8°

• Vertical: 18.7°

This wide view may help users scan larger areas efficiently, although subjects will appear smaller than with a longer focal-length lens.

Thermal Viewing Distance

The device is listed with a thermal imaging distance of approximately 1–150 metres.

Before publishing this specification, confirm whether it represents:

• Detection distance

• Recognition distance

• Identification distance

• Recommended observation distance

• Maximum useful range

The target type, target size, weather, and temperature contrast should also be documented.

4MP Visible-Light Camera

The digital channel uses a listed GC4653 4MP sensor with a 25 mm lens.

This camera may provide:

• Conventional scene detail

• Daytime colour imaging

• Low-light observation

• Infrared-assisted night viewing

• Photo and video recording

Before publication, confirm:

• Native sensor resolution

• Video frame rate

• Minimum illumination

• Lens aperture

• Focus method

• Visible-light field of view

• Colour and monochrome modes

Lens-Type Conflict

The general specifications identify the lens as catadioptric.

A catadioptric lens combines reflective and refractive optical elements, which is uncommon in this type of handheld binocular.

Confirm whether this term refers to:

• The 25 mm visible-light lens

• The 7 mm thermal lens

• Another optional lens

• Incorrect supplier data

Remove the term unless it is supported by official technical documentation.

Infrared Illuminator

The Z10 includes a 5W infrared illuminator operating at 850 nm.

Nine brightness levels allow the infrared output to be adjusted according to distance and ambient conditions.

An 850 nm illuminator may produce a faint visible red glow at the emitter.

Before publication, confirm:

• Maximum illumination range

• Beam-angle adjustment

• Focusable or fixed beam

• Power consumption

• Automatic shutoff

• Replacement availability

Digital Zoom

The device supports digital enlargement up to 10x.

Confirm whether zoom is available in fixed steps or as continuous adjustment.

Digital zoom enlarges the displayed image but does not increase the native resolution of the thermal or visible-light sensors. Fine detail may decrease at higher zoom settings.

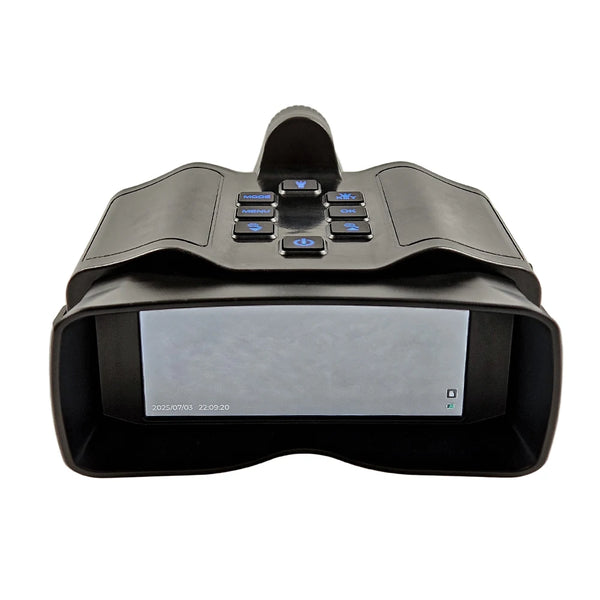

TFT Display

The binocular includes a 3.99-inch colour TFT display.

Before publication, confirm:

• Display resolution

• Screen brightness levels

• Contrast adjustment

• Viewing modes

• Automatic screen timeout

• Eye-shield design

• Diopter adjustment

• Display refresh rate

Display resolution should not be confused with thermal, video, or photo resolution.

Video Recording

The Z10 is listed with the following video options:

• 5K

• 4K

• 2K

• 1080p

These resolutions most likely apply to the visible-light camera rather than the thermal detector.

Before publication, confirm:

• Native video resolution

• Interpolated output options

• Frame rate at each resolution

• File format

• Audio recording

• Maximum clip duration

• Thermal video-recording resolution

• Date and time stamping

Do not describe the device as a 5K thermal camera.

Photo Capture

The listed image resolutions include:

• 60MP

• 42MP

• 36MP

• 30MP

• 24MP

Since the visible-light sensor is listed as 4MP, these higher photo resolutions may be software-interpolated.

Before publishing, confirm:

• Native still-image resolution

• Interpolation method

• Thermal photo resolution

• File format

• Burst mode

• Timestamp support

• Image quality settings

Storage

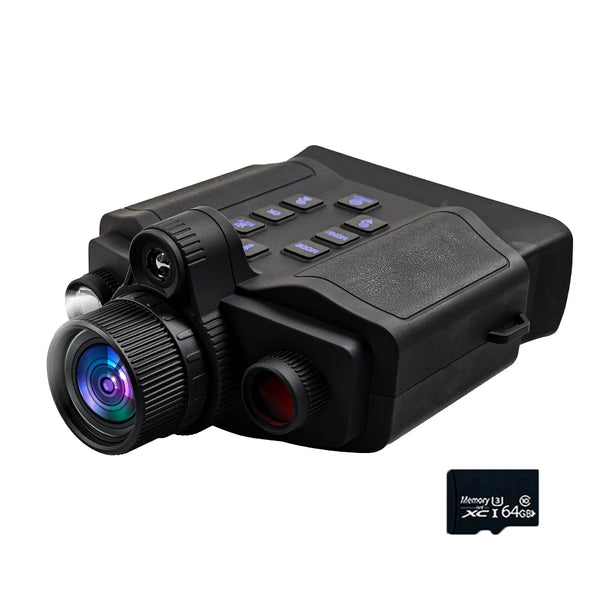

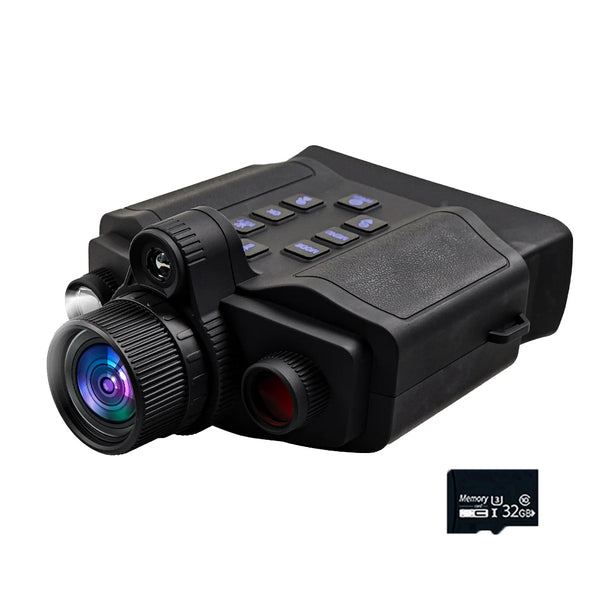

The Z10 supports TF or MicroSD cards from 4GB to 128GB.

Before publication, confirm:

• Whether a memory card is included

• Minimum speed class

• Supported file system

• Maximum individual file size

• Estimated recording capacity

• Card-formatting procedure

• Overwrite or loop-recording support

Battery System

The binocular uses a rechargeable 3.7V lithium battery with a listed capacity of 10,000mAh.

Before publication, confirm:

• Actual battery chemistry

• Built-in or replaceable design

• Operating time per charge

• Charging duration

• Charging power

• Power-bank compatibility

• Low-temperature runtime

• Battery-cycle life

Actual runtime may vary according to infrared brightness, recording, display brightness, digital zoom, and ambient temperature.

USB Type-C Interface

The Type-C connection may support charging, data transfer, or both.

Confirm:

• Charging protocol

• Required adapter output

• Data-transfer support

• Operation while charging

• Power-bank compatibility

• Included cable type

Integrated Flashlight

A visible flashlight is listed as supported.

Before publication, confirm:

• Flashlight output

• Beam pattern

• Brightness settings

• Strobe mode

• Control method

• Effect on battery runtime

The flashlight should be described separately from the infrared illuminator.

Operating Environment

The listed operating-temperature range is approximately:

• Minimum: -20°C

• Maximum: 60°C

A waterproof or dustproof rating is not provided.

Before advertising outdoor durability, confirm:

• IP rating

• Humidity tolerance

• Drop resistance

• Port sealing

• Battery-compartment protection

• Condensation resistance

Physical Design

The listed product dimensions are approximately:

• Length: 170 mm

• Width: 150 mm

• Height: 57 mm

• Weight: 0.48 kg

Confirm whether the weight includes:

• Battery

• Memory card

• Lens covers

• Neck strap

• Eye shield

Suitable Applications

The Ponbos Z10 may be suitable for:

• Wildlife observation

• Farm monitoring

• Property inspection

• Camping

• Outdoor exploration

• Night-time observation

• Search support

• General heat-source detection

• Remote-area monitoring

• Low-light scene recording

Actual performance depends on thermal contrast, available light, infrared illumination, weather, distance, and device settings.

Package Contents

Confirm whether the standard package includes:

• Ponbos Z10 binoculars

• Rechargeable battery

• USB Type-C cable

• Power adapter

• Neck strap

• Protective lens covers

• Carrying case

• Cleaning cloth

• Memory card

• User manual

Optional accessories should not be shown as included unless supplied with the selected package.

Certification and Warranty

The product is listed with CE certification.

Before publication, verify:

• Certificate number

• Testing laboratory

• Exact model coverage

• Applicable directives

• Certificate validity

Warranty duration is not listed and should be confirmed before publishing.

Important Use Information

Avoid pointing the thermal detector, visible-light camera, or infrared illuminator directly at the sun, lasers, welding arcs, or other intense energy sources, as these may damage the device.

Keep the lenses clean and dry, protect the binoculars during transport, and use only compatible memory cards, chargers, and accessories.

Follow all applicable privacy, observation, and local-use regulations.
