Convert a compatible daytime observation system into a thermal imaging setup with the WOLF 3C Compact Thermal Clip-On. Featuring a 384 × 288 uncooled VOx detector, 12 μm pixel pitch, 35 mm F1.0 objective lens, and 50 Hz refresh rate, the device is designed to provide detailed thermal imaging in darkness, fog, light rain, and other visually challenging environments.
The WOLF 3C may be used as a front-mounted clip-on or as a standalone thermal viewer, depending on the selected configuration and included accessories. It includes a high-resolution 0.39-inch OLED display, multiple thermal palettes, continuous digital enlargement, picture-in-picture viewing, hotspot tracking, Wi-Fi connectivity, internal storage, and USB Type-C external power support.

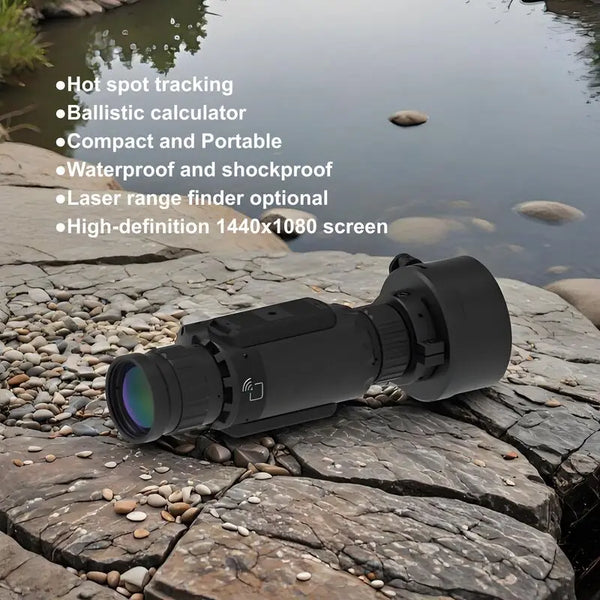

Key Features
- 384 × 288 uncooled VOx thermal detector
- 12 μm pixel pitch
- NETD below 25 mK
- 35 mm F1.0 objective lens
- Approximately 10° × 8° field of view
- 50 Hz thermal refresh rate
- 0.39-inch colour OLED display
- Listed 1440 × 1080 display resolution
- Six thermal colour palettes
- Picture-in-picture mode
- Hotspot tracking
- Image flip
- Continuous digital enlargement
- Built-in 32GB storage
- Optional 128GB storage
- Wi-Fi connectivity
- USB Type-C charging and external power
- Optional laser rangefinder
- Optional calculation functions
- Approximately nine hours battery life
- IP67 environmental protection
- Standard clip-on and rail-mount options
Product Specifications
- Brand: Confirm Before Publishing
- Model: WOLF 3C
- Product Type: Thermal Imaging Clip-On and Standalone Viewer
- Thermal Detector Resolution: 384 × 288 Pixels
- Alternative Listed Resolution: 640 × 512 Pixels, subject to variant confirmation
- Detector Type: Uncooled VOx Focal Plane Array
- Pixel Pitch: 12 μm
- Spectral Response: Approximately 8–14 μm
- Thermal Sensitivity: NETD Below 25 mK at F1.0
- Refresh Rate: 50 Hz
- Startup Time: Less Than Approximately Five Seconds
- Objective Lens: 35 mm
- Lens Aperture: F1.0
- Field of View: Approximately 10° × 8°
- Optical Magnification: 1x in Clip-On Configuration
- Digital Zoom: Continuous Enlargement with Optional 1x, 2x, and 4x Steps
- Display Type: Colour OLED
- Display Size: 0.39 Inches
- Display Resolution: Listed as 1440 × 1080 Pixels
- Conflicting Display Resolution: 1024 × 768 Pixels
- Image Modes: Automatic, Manual, White-Hot and Black-Hot Variations
- Colour Palettes: White Hot, Black Hot, Iron, Rainbow, Sepia, and Fire
- Picture-in-Picture: Supported
- Image Flip: Supported
- Hotspot Tracking: Supported
- Photo Capture: Supported
- Video Recording: Supported
- Internal Storage: 32GB
- Optional Storage: 128GB
- Wi-Fi: Supported
- Laser Rangefinder: Optional
- Calculation Functions: Optional and Configuration Dependent
- Mounting Options: Clip-On or Picatinny-Style Rail
- Battery Type: Two Rechargeable 18350 Batteries
- Optional Battery Type: Two CR123A Batteries
- Battery Life: Up to Approximately Nine Hours at 25°C
- USB Interface: USB Type-C
- External Power: Supported
- Headphone and Data Interface: 3.5 mm Connector with RS232 and CVBS Functions
- Online Firmware Upgrade: Supported
- Standard Impact Resistance: Listed Below 750G
- Optional Impact Resistance: Up to 1,200G
- Protection Rating: IP67
- Operating Temperature: Approximately -30°C to 60°C
- Storage Temperature: Approximately -40°C to 70°C
- Dimensions: Approximately 150 × 54 × 83 mm
- Weight: Approximately 472 g with Battery in Standalone Configuration
- Eye Relief: Approximately 40 mm in Standalone Configuration
- Warranty: Confirm Before Publishing
- Certification: CE, subject to documentation
- Country of Origin: Anhui, China
Product-Type Clarification
The detailed description identifies the WOLF 3C as a compact thermal clip-on.
The top marketplace fields also mention:
- Night-vision goggles
- Helmet-mounted fusion
- 640 × 512 resolution
- 1024 × 768 OLED display
These likely belong to different products or configurations.
The final listing should identify the device consistently as either:
- Front-mounted thermal clip-on
- Standalone thermal monocular
- Dual-use clip-on and monocular
Do not describe it as helmet-mounted fusion goggles unless the correct mounting system and multispectral configuration are verified.
384 × 288 VOx Thermal Detector
The WOLF 3C uses a listed 384 × 288 uncooled vanadium oxide detector with a 12 μm pixel pitch.
This configuration may support:
- Detailed thermal-image presentation
- Improved separation between nearby heat sources
- Better image quality during enlargement
- Smooth observation of moving subjects
- Thermal viewing without visible light
- Compact and efficient device construction
Actual performance depends on thermal sensitivity, lens quality, weather, humidity, temperature contrast, image-processing settings, and display quality.
Resolution Conflict
The top specifications also list a 640 × 512 resolution.
This value may refer to:
- A higher-resolution WOLF series model
- Another product variant
- An incorrectly copied supplier field
- A separate helmet-mounted system
Do not include 640 × 512 in the final product title or specification table unless the selected unit actually uses that detector.
Thermal Sensitivity
The device is listed with NETD below 25 mK at F1.0.
A lower NETD value generally indicates improved ability to distinguish small temperature differences.
This may help provide clearer thermal images in:
- Fog
- High humidity
- Light rain
- Low-contrast environments
- Uniform backgrounds
- Rapidly changing outdoor temperatures
Before publication, verify the test temperature, image mode, lens configuration, and measurement standard.
35 mm F1.0 Objective Lens
The WOLF 3C uses a 35 mm thermal objective lens with an F1.0 aperture.
This configuration may provide a balance between:
- Field of view
- Subject detail
- Medium- to long-distance observation
- Image brightness
- Device size
Before publication, confirm:
- Germanium lens material
- Manual or fixed focus
- Minimum focusing distance
- Protective coating
- Lens-cap inclusion
- Base magnification in standalone mode
Pixel-Pitch Conflict
The lens section includes the text “17 μm, 3x,” while the main thermal detector is listed as 12 μm.
The 17 μm value may belong to another detector or product model.
Use the verified 12 μm specification consistently unless a separate 17 μm version is offered.
Field of View
The listed field of view with the 35 mm lens is approximately:
- Horizontal: 10°
- Vertical: 8°
The exact value should be verified for the 384 × 288, 12 μm detector configuration.

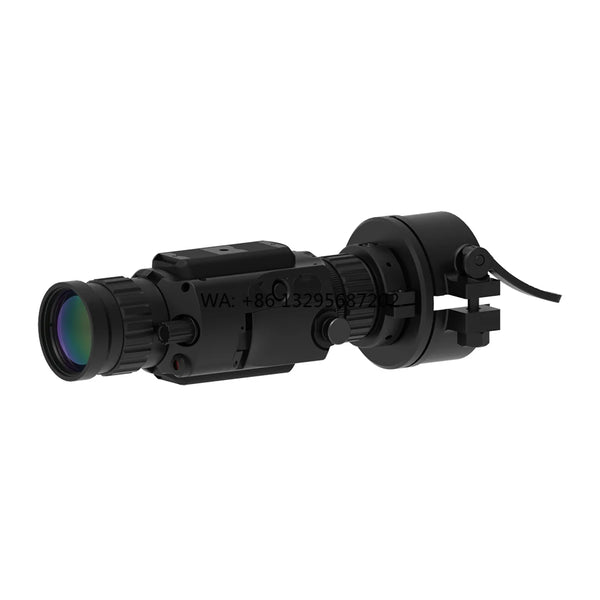

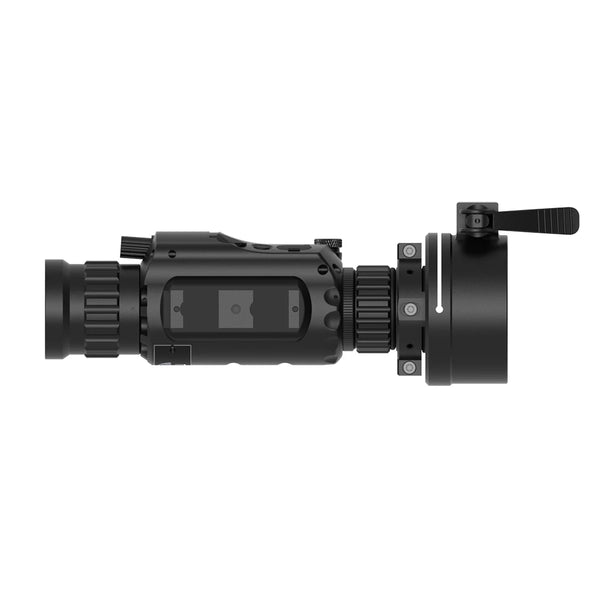

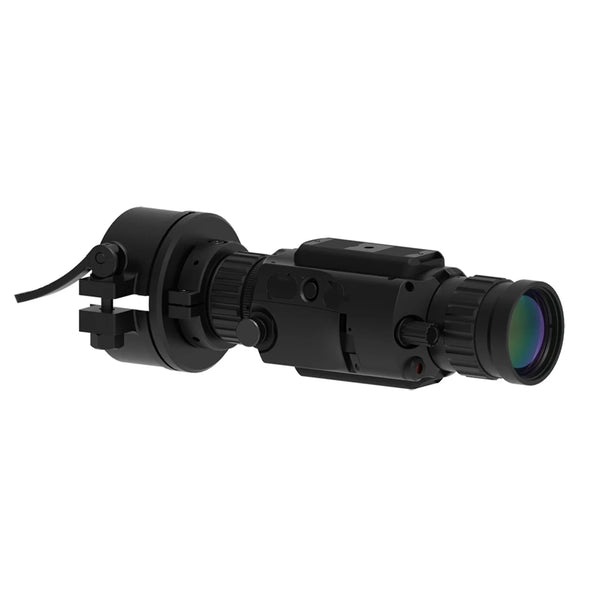

Clip-On Configuration
The WOLF 3C is designed to attach in front of a compatible daytime optical system.
Potential advantages of a clip-on configuration may include:
- Retaining the existing daytime viewing setup
- Fast installation and removal
- Thermal conversion without changing the primary optical device
- Use of multiple adapter-ring sizes
- Reduced need for major configuration changes
Compatibility depends on objective diameter, alignment, centre height, adapter fit, and optical quality.
Standalone Configuration
The listed 40 mm eye relief and 472 g weight apply to the standalone configuration.
Before publication, confirm whether standalone use requires:
- Separate eyepiece
- Additional rail mount
- Rubber eye cup
- Dedicated battery compartment
- Optional adapter
The weight should be specified separately for clip-on and standalone modes.
Adapter-Ring Options
The listing includes multiple adapter-ring dimensions for approximately 50 mm and 56 mm objective systems.
Available sizes may include:
- 51.6 mm
- 53.4 mm
- 55 mm
- 56 mm
- 57 mm
- 58 mm
- 60 mm
- 61 mm
- 62 mm
- 63 mm
- 64 mm
- 65 mm
These values require clarification because some inner and outer diameter ranges appear duplicated or incorrectly formatted.
Each adapter ring should include:
- Exact internal diameter
- Compatible external objective diameter
- Locking mechanism
- Material
- Included inserts
- Model compatibility
Digital Zoom
The supplier lists continuous digital zoom together with optional 1x, 2x, and 4x steps.
The wording “100–400” likely means:
- 100% enlargement
- 200% enlargement
- 400% enlargement
Digital zoom enlarges the displayed image but does not increase the detector’s native resolution.
Image Controls
The device includes controls for:
- Automatic gain control
- Digital zoom
- Contrast
- Brightness
- Sharpness
- Noise reduction
- Additional image processing
Before publication, confirm the available adjustment levels and whether settings are saved after shutdown.
Thermal Colour Palettes
The WOLF 3C supports six listed thermal palettes:
- White Hot
- Black Hot
- Iron
- Rainbow
- Sepia
- Fire
These modes allow users to select different thermal visualizations for varying environmental conditions and personal preferences.
Image Mode Codes
The technical table also lists image modes such as:
- WFG
- WBG
- Manual
- eWFG
- eWBG
These abbreviations are not customer-friendly and should be explained or removed unless the official manual defines them.
Picture-in-Picture Mode
Picture-in-picture mode displays an enlarged section of the scene while retaining the wider thermal image.
This may support:
- Detailed subject observation
- Maintaining surrounding scene awareness
- Examining smaller thermal features
- Better use of digital enlargement
Confirm the available PIP magnification, size, and screen-position settings.
Hotspot Tracking
Hotspot tracking may automatically mark the warmest visible area within the thermal scene.
This may help with:
- Electrical inspection
- Equipment monitoring
- Property checks
- Heat-source location
- General scene analysis
It should not be described as automatic identification.
Image Flip
Image-flip functionality may allow the display to be rotated or mirrored according to the mounting orientation.
Confirm whether available options include:
- Horizontal flip
- Vertical flip
- 180-degree rotation
- Automatic orientation
OLED Display
The WOLF 3C includes a listed 0.39-inch colour OLED display with a resolution of 1440 × 1080 pixels.
The top specification also lists 1024 × 768 OLED, creating a conflict.
Before publication, confirm:
- Exact panel resolution
- Physical screen size
- Brightness levels
- Contrast adjustment
- Refresh rate
- Diopter range
- Screen timeout
- Burn-in protection
Display resolution should not be confused with thermal detector resolution.
Photo and Video Recording
The WOLF 3C supports image and video recording.
Before publication, confirm:
- Photo resolution
- Video resolution
- Recording frame rate
- File formats
- Audio recording
- Maximum clip duration
- Date and time stamping
- Automatic recording options
- Playback on the device
Built-In Storage
The standard configuration includes 32GB internal storage, with 128GB optional.
The supplier claims storage for up to:
- Approximately 400,000 snapshots
- Approximately 40 hours of video
These capacities depend on:
- Image resolution
- Video bitrate
- File compression
- Recording frame rate
- Reserved system storage
Use verified storage estimates for the selected recording settings.
Wi-Fi Connectivity
Wi-Fi may allow connection to a compatible mobile application or external device.
Potential functions may include:
- Live thermal viewing
- Photo transfer
- Video transfer
- Remote recording
- Device settings
- Firmware updates
Before publication, confirm the official application name, supported platforms, connection range, and account requirements.
Optional Laser Rangefinder
A laser rangefinder is listed as optional.
Before publication, confirm:
- Minimum measurement distance
- Maximum measurement distance
- Measurement accuracy
- Laser wavelength
- Laser classification
- Single and continuous ranging
- Measurement units
- Whether range information is recorded
The rangefinder should not be shown as standard equipment unless included in the selected configuration.
Optional Calculation Function
A calculation function is listed as supported and dynamically adjusted using optional rangefinder information.
Before publication, confirm the exact features and supported inputs through official manufacturer documentation.
Do not publish detailed performance or accuracy claims without verified specifications.
Battery System
The standard power system uses:
- Two rechargeable 18350 batteries
An optional configuration may use:
- Two CR123A batteries
The listed operating duration is up to approximately nine hours at 25°C.
Before publication, confirm:
- Battery capacity
- Included battery quantity
- Charging method
- External charger inclusion
- USB charging support
- Hot-swapping support
- Low-temperature runtime
- Whether CR123A cells are rechargeable
Actual runtime may vary with Wi-Fi, recording, display brightness, optional rangefinder use, and ambient temperature.
USB Type-C Interface
The USB Type-C port supports:
- Data transfer
- External power
- Battery charging, subject to battery configuration
Before publication, confirm:
- Charging protocol
- Required input power
- Operation while charging
- Power-bank compatibility
- File-transfer speed
- Included cable
3.5 mm Multifunction Port
The device includes a listed 3.5 mm interface supporting:
- Headphone connection
- RS232 communication
- CVBS analogue video output
Confirm whether a dedicated breakout cable is required and whether it is included.
Impact-Resistance Options
The device is listed with:
- Standard impact resistance below approximately 750G
- Optional resistance up to approximately 1,200G
These claims require test documentation specifying:
- Test method
- Number of cycles
- Impact direction
- Device configuration
- Pass criteria
- Warranty coverage
IP67 Environmental Protection
The listed IP67 rating may provide:
- Dust-tight protection
- Resistance to temporary water immersion under defined conditions
Before publication, verify:
- Exact tested model
- Immersion depth
- Test duration
- Required port-cover positions
- Battery-compartment sealing
- Warranty conditions
IP67 does not mean the device is intended for continuous underwater use.
Operating Environment
The listed environmental ranges are:
- Operating Temperature: Approximately -30°C to 60°C
- Storage Temperature: Approximately -40°C to 70°C
The Fahrenheit conversion for the storage minimum appears incorrect in the source data. -40°C equals -40°F, not -72°F.
Use verified Celsius and Fahrenheit values consistently.
Physical Dimensions
The standalone configuration with 35 mm lens is listed at approximately:
- Length: 150 mm
- Width: 54 mm
- Height: 83 mm
- Weight: 472 g with batteries
The dimensions exclude selected rubber parts and optional laser rangefinder components.
Suitable Applications
The WOLF 3C may be suitable for:
- Wildlife observation
- Property inspection
- Outdoor patrols
- Search support
- Farm monitoring
- Night-time observation
- Electrical inspection
- Equipment monitoring
- Security observation
- General heat-source detection
Actual performance depends on lens configuration, thermal contrast, weather, adapter fit, distance, and device settings.
Available Configurations
The product should be divided into clear configurations such as:
- WOLF 3C clip-on without rangefinder
- WOLF 3C standalone kit
- WOLF 3C with optional laser rangefinder
- WOLF 3C with 32GB storage
- WOLF 3C with 128GB storage
- Standard 750G version
- Optional 1,200G version
Each configuration should have its own SKU, images, included accessories, and price.
Package Contents
Confirm whether the standard package includes:
- WOLF 3C thermal clip-on
- Two rechargeable 18350 batteries
- Battery charger
- USB Type-C cable
- Protective lens caps
- Clip-on adapter
- Selected adapter ring
- Eye cup for standalone use
- Carrying case
- Cleaning cloth
- User manual
Optional items such as laser rangefinder, standalone eyepiece, rail bracket, CR123A battery holder, and 128GB storage should not be shown as standard unless included.
Certification and Warranty
The product is listed with CE certification.
Before publication, verify:
- Certificate number
- Testing laboratory
- Exact WOLF 3C model coverage
- Applicable standards
- Certificate validity
Warranty duration should also be confirmed, including coverage for the detector, OLED display, battery system, recording functions, optional rangefinder, environmental sealing, and included accessories.
Important Use Information
Avoid pointing the thermal detector directly at the sun, lasers, welding arcs, or other intense energy sources, as these may permanently damage the sensor.
Confirm adapter compatibility and secure attachment before use. Use only approved batteries, charging equipment, cables, and accessories.
Keep all protective covers properly closed during outdoor operation and store the device within the manufacturer’s recommended temperature range.
