    WiFi Night Vision Telescope...

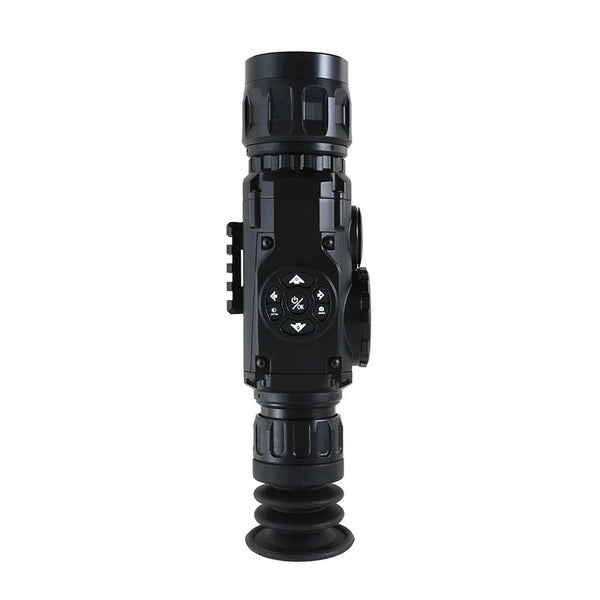

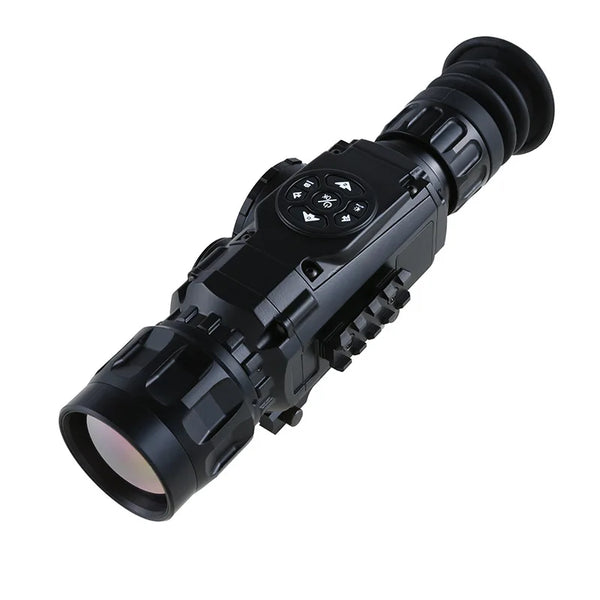

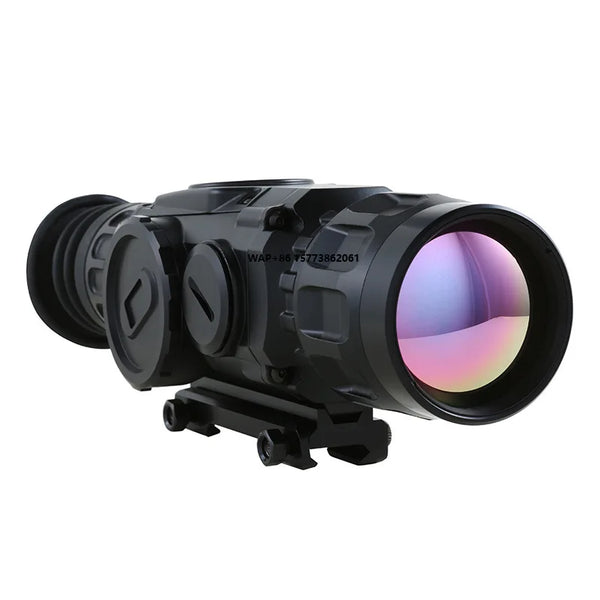

    Observe heat signatures in darkness, low light, fog, and visually challenging environments with the MAIP MP50-DG Thermal Imaging Monocular. Featuring a 384 × 288 vanadium oxide uncooled detector, 17 μm pixel pitch, 50 mm objective lens, and 30 Hz refresh rate, this compact thermal viewer is designed for outdoor observation, property inspection, search applications, wildlife viewing, and industrial monitoring.

    The monocular provides 4.1x base magnification with digital zoom from 1x to 12x. Integrated Wi-Fi support may allow compatible mobile-device viewing, image transfer, or remote operation, subject to the supplied application and firmware.

    Key Features

    • 384 × 288 thermal sensor resolution

    • Vanadium oxide uncooled detector

    • 17 μm pixel pitch

    • 50 mm objective lens

    • 30 Hz refresh rate

    • 4.1x base magnification

    • 1–12x digital zoom

    • 13.3° × 10° field of view

    • Integrated Wi-Fi support

    • Wide listed operating-temperature range

    • Durable alloy housing

    • Portable monocular design

    • OEM, ODM, and OBM support

    • One-year warranty

    Product Specifications

    • Brand: MAIP, subject to confirmation

    • Model: MP50-DG

    • Product Type: Thermal Imaging Monocular

    • Detector Type: Vanadium Oxide Uncooled Detector

    • Sensor Resolution: 384 × 288 Pixels

    • Pixel Pitch: 17 μm

    • Frame Rate: 30 Hz

    • Objective Lens: 50 mm

    • Base Magnification: Approximately 4.1x

    • Digital Zoom: 1–12x

    • Field of View: Approximately 13.3° × 10°

    • Wi-Fi: Supported

    • Housing Material: Alloy

    • Operating Temperature: Approximately -40°C to 60°C

    • Operating Humidity: Below 90% RH

    • Display Type: Confirm Before Publishing

    • Display Resolution: Confirm Before Publishing

    • Detection Range: Confirm Before Publishing

    • Recognition Range: Confirm Before Publishing

    • Identification Range: Confirm Before Publishing

    • Battery Type: Confirm Before Publishing

    • Battery Capacity: Confirm Before Publishing

    • Operating Time: Confirm Before Publishing

    • Charging Interface: Confirm Before Publishing

    • Storage Capacity: Confirm Before Publishing

    • Photo Recording: Confirm Before Publishing

    • Video Recording: Confirm Before Publishing

    • Protection Rating: Confirm Before Publishing

    • Dimensions: Confirm Before Publishing

    • Weight: Confirm Before Publishing

    • Warranty: 1 Year

    • Customization: OEM, ODM, and OBM

    • Country of Origin: Shaanxi, China

    384 × 288 Thermal Detector

    The MP50-DG uses a 384 × 288 thermal detector with a 17 μm pixel pitch.

    This configuration is designed to capture temperature differences and convert them into a visible thermal image without requiring natural or artificial light.

    Thermal imaging performance may vary according to:

    • Target size

    • Temperature contrast

    • Weather conditions

    • Humidity

    • Atmospheric interference

    • Lens cleanliness

    • Display settings

    • Observation distance

    Vanadium Oxide Sensor

    The uncooled vanadium oxide detector does not require a cryogenic cooling system.

    This supports:

    • Faster startup

    • Compact construction

    • Lower power requirements

    • Reduced mechanical complexity

    • Portable observation use

    The detector’s NETD thermal sensitivity should be added when available because it is an important measure of image detail and temperature differentiation.

    50 mm Objective Lens

    The 50 mm lens is designed to provide a narrower field of view and greater observation reach than smaller objective-lens configurations.

    It may be useful for:

    • Distant heat-source observation

    • Wildlife monitoring

    • Farm and property inspection

    • Search operations

    • Equipment inspection

    • Outdoor surveillance

    Exact detection and recognition distances should only be published when supported by manufacturer test data.

    Magnification and Digital Zoom

    The monocular provides approximately 4.1x base magnification and digital zoom from 1x to 12x.

    Digital zoom enlarges the displayed image but does not increase the detector’s native resolution. Image detail may therefore decrease at higher zoom levels.

    Confirm whether the digital zoom operates in:

    • Continuous increments

    • Fixed steps

    • Picture-in-picture mode

    • Combination with base magnification

    Field of View

    The listed field of view is approximately 13.3° horizontally by 10° vertically.

    The incomplete “Field of View: 12” value should be removed unless its unit and meaning are confirmed.

    A wider field of view helps locate subjects quickly, while the 50 mm lens supports more focused observation at distance.

    30 Hz Refresh Rate

    The 30 Hz frame rate is designed to provide smoother viewing than lower-refresh thermal devices during:

    • Handheld movement

    • Subject tracking

    • Scanning

    • Walking observation

    • Equipment inspection

    Final display smoothness also depends on processing speed and display performance.

    Wi-Fi Connectivity

    Integrated Wi-Fi may support connection with a compatible smartphone or tablet.

    Possible functions may include:

    • Live image viewing

    • Photo transfer

    • Video transfer

    • Remote settings

    • Firmware updates

    • Device control

    Before publishing, confirm:

    • Mobile application name

    • Android compatibility

    • iOS compatibility

    • Maximum connection range

    • Whether internet access is required

    • Number of simultaneous users

    Thermal Image Modes

    The supplied information does not list available colour palettes.

    Confirm whether the monocular includes modes such as:

    • White Hot

    • Black Hot

    • Red Hot

    • Iron Red

    • Rainbow

    • Target Highlight

    • Edge Enhancement

    Only available modes should be included in the final listing.

    Display and Image Quality

    The internal display specification is missing.

    Before publishing, confirm:

    • Display technology

    • Display resolution

    • Screen size

    • Brightness adjustment

    • Diopter adjustment

    • Image sharpening

    • Noise reduction

    • Contrast adjustment

    • Digital detail enhancement

    These specifications directly affect the viewing experience.

    Recording and Storage

    Confirm whether the device supports:

    • Still-image capture

    • Video recording

    • Built-in storage

    • MicroSD card

    • USB data transfer

    • Automatic recording

    • Date and time stamping

    • Audio recording

    The package should clearly state whether a memory card is included.

    Battery and Runtime

    Battery details are not included in the supplied specifications.

    Confirm:

    • Battery type

    • Battery capacity

    • Replaceable or built-in design

    • Operating time per charge

    • Standby duration

    • Charging time

    • USB charging standard

    • Power-bank compatibility

    • Low-temperature runtime

    Runtime should be stated as approximate because it can be affected by Wi-Fi, recording, display brightness, zoom use, and ambient temperature.

    Environmental Performance

    The listed operating range is approximately -40°C to 60°C with humidity below 90% RH.

    Before using this claim, verify:

    • Tested operating range

    • Storage-temperature range

    • Waterproof rating

    • Dustproof rating

    • Drop resistance

    • Condensation protection

    • Low-temperature battery performance

    A formal IP rating should only be stated when supported by certification.

    Alloy Housing

    The device is described as using an alloy body.

    This may provide:

    • Improved structural protection

    • Resistance to regular outdoor handling

    • A rigid lens and sensor platform

    • Durable portable construction

    The exact alloy type and surface treatment should only be stated when verified.

    Suitable Applications

    The MP50-DG may be suitable for:

    • Wildlife observation

    • Farm monitoring

    • Search and rescue support

    • Property inspection

    • Electrical inspection

    • Mechanical inspection

    • Night-time outdoor observation

    • Building heat-loss checks

    • Security patrols

    • Industrial maintenance

    Performance depends on the target, environment, weather, and user settings.

    Customization Options

    Available customization may include:

    • Brand logo

    • Packaging

    • Firmware

    • Menu language

    • Image palettes

    • Storage capacity

    • Accessories

    • Housing finish

    • Mobile application branding

    Each customized version should receive an approved final specification sheet.

    Package Contents

    Confirm whether the standard package includes:

    • MP50-DG thermal monocular

    • Protective lens cap

    • Carrying case

    • Neck or wrist strap

    • Charging cable

    • Power adapter

    • Battery

    • Cleaning cloth

    • User manual

    • Storage card

    Optional accessories should not be shown as included unless supplied with the selected package.

    Warranty and Support

    The listed warranty period is one year.

    Before publishing, confirm coverage for:

    • Detector

    • Display

    • Battery

    • Wi-Fi module

    • Buttons and controls

    • Charging port

    • Housing

    • Labour

    • Replacement parts

    • Warranty exclusions

    Important Use Information

    Do not point the thermal detector directly at the sun, welding arcs, lasers, or other extremely intense heat sources, as this may damage the sensor.

    Keep the lens clean and dry, use only approved cleaning materials, and store the monocular in a protective case when not in use.

    Follow all applicable privacy, observation, and local-use regulations.
