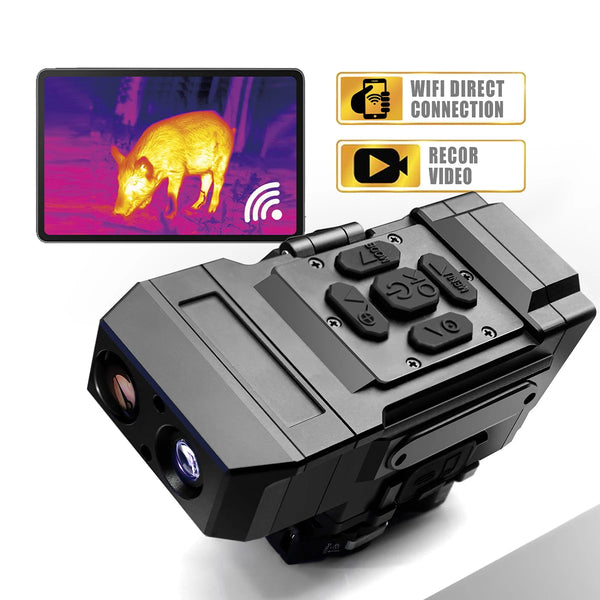

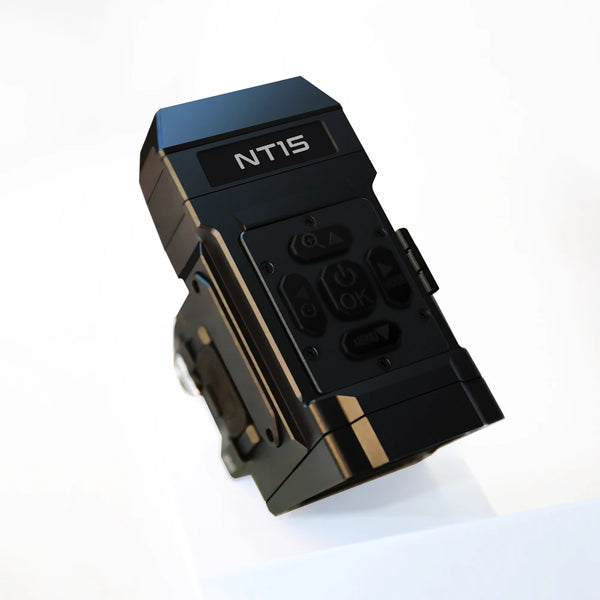

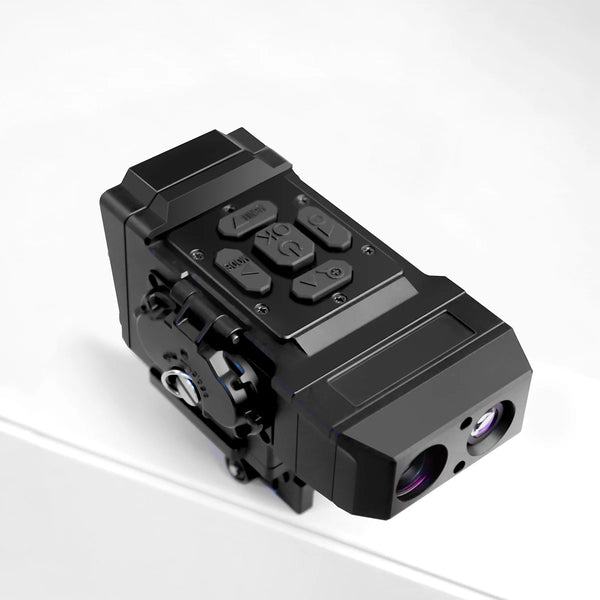

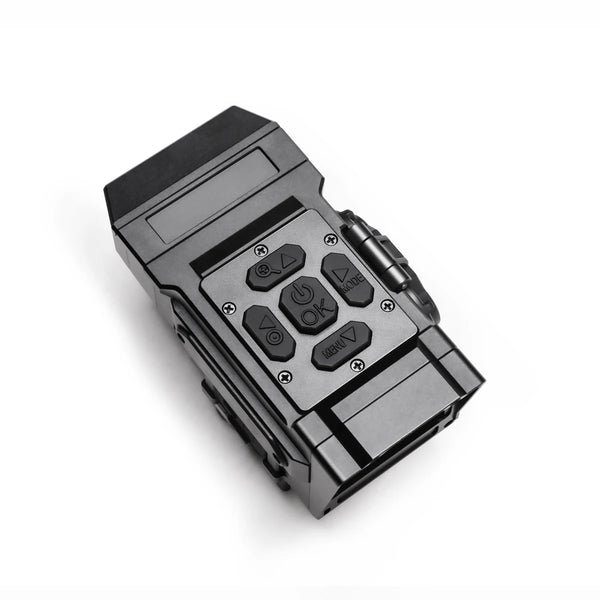

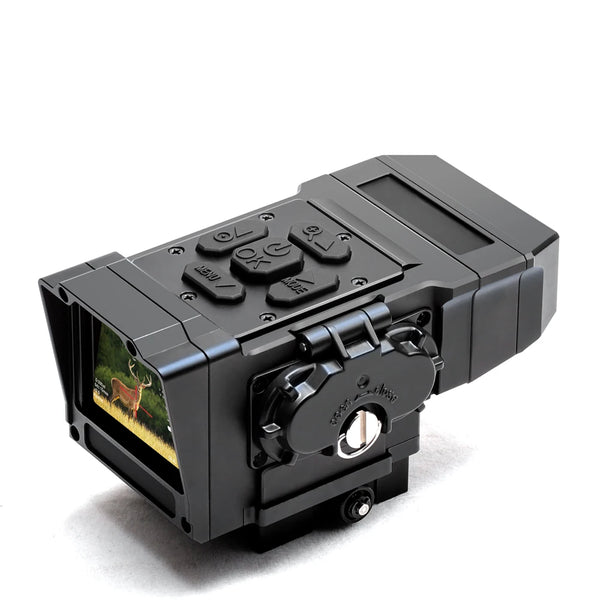

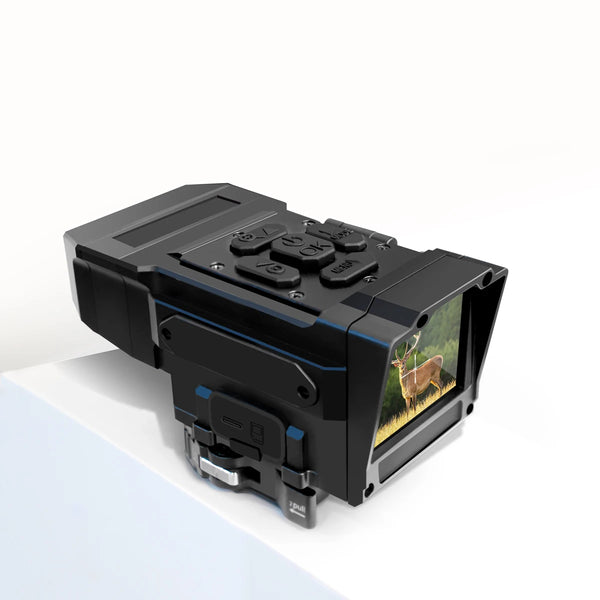

    TRV NT15 256 Thermal Rifle ...

    Observe heat signatures and detailed visible-light scenes with the TRV NT15 Dual-Sensor Thermal Imaging Optic. This compact device combines a 256 × 192 thermal detector with a 1920 × 1440 visible-light camera, allowing users to switch between thermal, digital, and fused image modes.

    The NT15 features a 15 mm infrared objective lens, 12 mm visible-light lens, stepped digital zoom, picture-in-picture viewing, Wi-Fi connectivity, digital recording, and customizable reticle options. Its listed IPX7 protection and up to eight hours of battery life support outdoor observation in varied environmental conditions.

    Key Features

    • Dual thermal and visible-light imaging

    • 256 × 192 thermal detector

    • 12 μm thermal pixel pitch

    • 1920 × 1440 visible-light camera

    • Dual-light fusion mode

    • 15 mm infrared objective lens

    • 12 mm visible-light lens

    • NETD of 25 mK or lower

    • Detection distance up to approximately 1,000 m

    • 1x, 2x, 3x, and 4x digital zoom

    • Picture-in-picture mode

    • Four reticle patterns

    • Four reticle colour modes

    • Wi-Fi connectivity

    • Photo and video recording

    • IPX7 water resistance

    • Up to approximately eight hours battery life

    • Three-year warranty

    Product Specifications

    • Brand: TRV

    • Model: NT15

    • Product Type: Dual-Sensor Thermal and Visible-Light Optic

    • Thermal Sensor Resolution: 256 × 192 Pixels

    • Thermal Pixel Pitch: 12 μm

    • Thermal Sensitivity: NETD ≤25 mK

    • Infrared Objective Lens: 15 mm

    • Visible-Light Lens: 12 mm

    • Visible-Light Resolution: 1920 × 1440 Pixels

    • Dual-Light Fusion: Supported

    • Base Magnification: Confirm Before Publishing

    • Maximum Listed Magnification: Up to Approximately 6x

    • Digital Zoom: 1x, 2x, 3x, and 4x

    • Detection Distance: Up to Approximately 1,000 m

    • Picture-in-Picture: Supported

    • Reticle Options: Four

    • Reticle Colours: Four Modes

    • Dot Size: 2 MOA

    • Adjustment System: MOA

    • Click Value: Confirm Before Publishing

    • Total Adjustment Range: Confirm Before Publishing

    • Focal Plane: Listed as First Focal Plane, subject to verification

    • Side Focus: No

    • Objective Focus: Confirm Before Publishing

    • Recording: Supported

    • Photo Resolution: Confirm Before Publishing

    • Video Resolution: Confirm Before Publishing

    • Video Frame Rate: Confirm Before Publishing

    • Wi-Fi: Supported

    • Internal Storage: Confirm Before Publishing

    • Memory Card Support: Confirm Before Publishing

    • Battery Life: Up to Approximately Eight Hours

    • Battery Type: Confirm Before Publishing

    • Battery Capacity: Confirm Before Publishing

    • Charging Time: Confirm Before Publishing

    • Charging Interface: Confirm Before Publishing

    • Protection Rating: IPX7

    • Listed Impact Resistance: Up to 8,000 J, subject to verification

    • Display Type: Confirm Before Publishing

    • Display Resolution: Confirm Before Publishing

    • Operating Temperature: Confirm Before Publishing

    • Dimensions: Confirm Before Publishing

    • Weight: Confirm Before Publishing

    • Warranty: Three Years

    • OEM/ODM: Available

    • Country of Origin: China

    Dual-Sensor Imaging System

    The NT15 combines two separate imaging channels.

    Thermal Channel

    The thermal detector captures infrared energy emitted by people, animals, machinery, and surrounding objects. It can create an image without relying on visible light.

    Visible-Light Channel

    The 1920 × 1440 visible-light sensor captures conventional scene detail when sufficient natural or artificial light is available.

    The user interface should clearly identify how to switch between thermal, visible-light, and fusion modes.

    256 × 192 Thermal Detector

    The thermal channel uses a 256 × 192 detector with a 12 μm pixel pitch.

    This configuration is designed for:

    • Heat-source detection in darkness

    • Broad-area thermal scanning

    • Compact device construction

    • Digital image enlargement

    • General outdoor observation

    • Property and equipment monitoring

    Actual image quality depends on thermal contrast, weather, humidity, lens focus, image processing, and display quality.

    NETD ≤25 mK

    The listed thermal sensitivity is 25 mK or lower.

    A lower NETD value generally indicates improved ability to distinguish small temperature differences, which may support clearer imaging in:

    • Fog

    • High humidity

    • Light rain

    • Low-contrast thermal scenes

    • Uniform backgrounds

    • Changing temperatures

    The exact test conditions and image-processing mode should be confirmed.

    Visible-Light Camera

    The visible-light channel provides a listed resolution of 1920 × 1440 pixels with a 12 mm lens.

    Before publication, confirm:

    • Sensor type

    • Sensor size

    • Low-light sensitivity

    • Frame rate

    • Day and night operating modes

    • Infrared illuminator support

    • Colour and monochrome options

    • Minimum focusing distance

    The visible-light resolution should not be confused with the thermal detector or internal-display resolution.

    Dual-Light Fusion

    The fusion function combines thermal information with visible-light scene detail.

    This may help provide:

    • Improved edge definition

    • Clearer environmental context

    • Better separation of warm subjects

    • More recognizable scene structure

    • Enhanced observation in mixed-light conditions

    Confirm whether fusion intensity, image alignment, and thermal overlay colours can be adjusted.

    Infrared and Visible Lenses

    The NT15 includes:

    • Infrared Lens: 15 mm

    • Visible-Light Lens: 12 mm

    Before publication, confirm:

    • Infrared lens aperture

    • Visible-light lens aperture

    • Field of view for each channel

    • Manual or fixed focus

    • Minimum focusing distance

    • Lens coating

    • Protective lens covers

    Magnification and Digital Zoom

    The device is listed with magnification up to approximately 6x and digital zoom settings of:

    • 1x

    • 2x

    • 3x

    • 4x

    Confirm whether the 6x value represents:

    • Maximum combined magnification

    • Base magnification plus digital zoom

    • Display enlargement

    • Another configuration

    Digital zoom enlarges the image but does not increase the native resolution of either sensor.

    Detection Distance

    The listed thermal detection distance is up to approximately 1,000 m.

    Detection means that a heat source may be noticed. It does not necessarily mean that the subject can be recognized or positively identified at that distance.

    Actual performance depends on:

    • Target size

    • Thermal contrast

    • Weather

    • Humidity

    • Background conditions

    • Lens focus

    • Display settings

    Recognition and identification ranges should be listed separately when verified.

    Picture-in-Picture Mode

    Picture-in-picture mode displays a magnified section of the image while retaining the wider view.

    This can help with:

    • Detailed observation

    • Subject tracking

    • Maintaining situational awareness

    • Examining smaller thermal features

    • Retaining surrounding scene context

    Confirm available PIP magnification and display-position options.

    Reticle Options

    The device supports four reticle patterns and four reticle colours.

    Before publication, confirm:

    • Reticle names

    • Available colours

    • Reticle scaling

    • Reticle brightness

    • Position adjustment

    • Saved profiles

    • Reticle visibility in thermal, visible, and fusion modes

    The listed 2 MOA dot size should be assigned to the exact reticle configuration.

    MOA Adjustment System

    The NT15 uses an MOA-based digital adjustment system.

    Before publishing, confirm:

    • Adjustment per click

    • Total horizontal range

    • Total vertical range

    • Number of saved profiles

    • Number of saved distances

    • Freeze-frame zeroing

    • Reset function

    • Profile naming

    Focal-Plane Specification

    The product is listed as first focal plane.

    Because the NT15 uses digitally generated reticles, this terminology may refer to software-based scaling rather than a physical optical reticle.

    Use the first focal plane claim only when confirmed in official manufacturer documentation.

    Recording Functions

    The NT15 supports image and video recording.

    Before publication, confirm:

    • Photo resolution

    • Video resolution

    • Frame rate

    • File formats

    • Audio support

    • Internal storage capacity

    • Memory-card support

    • Maximum recording duration

    • Date and time stamping

    • USB file transfer

    Wi-Fi Connectivity

    Integrated Wi-Fi may allow connection with a compatible smartphone or tablet.

    Possible features may include:

    • Live image viewing

    • Remote control

    • Photo transfer

    • Video transfer

    • Settings adjustment

    • Firmware updates

    Confirm the official mobile application, supported Android and iOS versions, and connection range.

    Battery Life

    The listed battery duration is up to approximately eight hours.

    Actual operating time may vary according to:

    • Wi-Fi usage

    • Recording

    • Display brightness

    • Fusion mode

    • Digital zoom

    • Ambient temperature

    • Battery condition

    Before publishing, confirm the battery capacity, chemistry, charging time, replacement process, and charger inclusion.

    IPX7 Water Resistance

    The listed IPX7 rating indicates resistance to temporary water immersion under defined laboratory conditions.

    Before publication, verify:

    • Exact tested model

    • Maximum immersion depth

    • Maximum duration

    • Required port-cover position

    • Battery-compartment sealing

    • Water-damage warranty terms

    IPX7 does not include a certified dust-protection rating.

    Impact Resistance

    The device is listed with impact resistance up to 8,000 joules.

    This claim should only be published when supported by documented testing specifying:

    • Test method

    • Number of cycles

    • Impact direction

    • Device configuration

    • Mounting arrangement

    • Pass criteria

    • Warranty coverage

    Display System

    The internal display details are missing.

    Confirm:

    • OLED, AMOLED, or LCOS technology

    • Display resolution

    • Screen size

    • Brightness control

    • Diopter range

    • Eye relief

    • Contrast adjustment

    • Image sharpening

    • Noise reduction

    Display resolution should be clearly separated from the thermal and visible-light camera resolutions.

    Image Modes

    Confirm whether the thermal channel provides palettes such as:

    • White Hot

    • Black Hot

    • Red Hot

    • Iron Red

    • Rainbow

    • Target Highlight

    • Edge Enhancement

    Also confirm whether the visible-light channel offers colour, monochrome, low-light, or infrared-assisted viewing modes.

    Suitable Applications

    Depending on local rules and final configuration, the NT15 may be suitable for:

    • Wildlife observation

    • Farm monitoring

    • Property inspection

    • Night-time outdoor viewing

    • Search support

    • Security patrols

    • Equipment monitoring

    • Heat-source detection

    • General long-distance observation

    • Dual-spectrum scene viewing

    Performance depends on sensor configuration, thermal contrast, available light, weather, and device settings.

    Package Contents

    Confirm whether the standard package includes:

    • TRV NT15 dual-sensor device

    • Rechargeable battery

    • Battery charger

    • USB cable

    • Lens covers

    • Eye cup

    • Carrying case

    • Cleaning cloth

    • User manual

    • Mounting accessories

    Optional equipment should not be shown as included unless supplied with the selected package.

    Warranty and Support

    The listed warranty period is three years.

    Before publishing, confirm coverage for:

    • Thermal detector

    • Visible-light camera

    • Internal display

    • Battery

    • Wi-Fi module

    • Recording system

    • Environmental sealing

    • Buttons and controls

    • Labour and shipping

    • Warranty exclusions

    Important Use Information

    Avoid pointing either imaging sensor directly at the sun, lasers, welding arcs, or other intense energy sources, as this may damage the device.

    Use the device only according to manufacturer instructions and all applicable local laws.

    Keep both lenses clean and dry, close all protective covers before outdoor use, and inspect the housing, battery, controls, lenses, and mounting components before operation.
