Trailer Mounted Mobile Light Tower with Built In Generator LED Lamps for Night Construction and Road Work Site Use

Provide wide-area temporary illumination for construction sites, road maintenance, emergency response, mining operations, outdoor events, industrial yards, and remote work locations with the YG TPE-2400L LED Lighting Tower.

The TPE-2400L is designed around a 48V DC electrical system and may be powered by a compatible battery bank, solar charging system, or external DC supply. Its listed LED system delivers up to approximately 192,000 lumens with 360-degree overall illumination and dimming support.

The exact lamp power, lamp quantity, battery capacity, solar-panel wattage, operating runtime, mast height, charging duration, mounting system, dimensions, and total weight should be verified before publication.

Key Features

• Listed output up to approximately 192,000 lumens

• Up to approximately 160 lm/W listed efficiency

• 360-degree overall lighting coverage

• 48V DC operating system

• Solar, battery, and external DC power options

• Dimming support

• LED light source

• Ra 70 colour-rendering index

• Custom housing-colour options

• IP23 environmental protection

• Operating-temperature range from approximately -20°C to 60°C

• Listed 50,000-hour working life

• Custom lighting and electrical design

• Two-year warranty

Product Specifications

• Brand: YG, subject to final confirmation

• Model: TPE-2400L

• Product Type: Solar and Battery-Powered LED Lighting Tower

• Light Source: LED

• Lamp Type: LED

• Lamp Quantity: Confirm Before Publishing

• Rated Lamp Power: Confirm Before Publishing

• Listed Luminous Output: Approximately 192,000 lm

• Listed Luminous Efficiency: Approximately 160 lm/W

• Estimated System Lamp Power: Approximately 1,200W, subject to verification

• Beam Coverage: Approximately 360°

• Emitting Colour: White

• Colour Rendering Index: Ra 70

• Colour Temperature: Confirm Before Publishing

• Input Voltage: 48V DC

• Power Sources: Solar, Battery, or External DC

• Battery Type: Confirm Before Publishing

• Battery Voltage: 48V System, subject to configuration

• Battery Capacity: Confirm Before Publishing

• Operating Runtime: Confirm Before Publishing

• Solar-Panel Wattage: Confirm Before Publishing

• Solar Charging Time: Confirm Before Publishing

• External Charging Input: Confirm Before Publishing

• Dimming: Supported

• Dimming Method: Confirm Before Publishing

• Protection Rating: IP23

• Lamp-Base Material: Metal

• Housing Colour: Custom

• Mast Type: Confirm Before Publishing

• Mast Height: Confirm Before Publishing

• Mast-Lifting Method: Confirm Before Publishing

• Mobility System: Confirm Before Publishing

• Stabilizing Supports: Confirm Before Publishing

• Working Temperature: Approximately -20°C to 60°C

• Listed Working Life: Up to Approximately 50,000 Hours

• Dimensions: Confirm Before Publishing

• Weight: Confirm Before Publishing

• Customization: Supported

• Warranty: Two Years

• Country of Origin: Henan, China

Product Configuration Clarification

The specific data describes a 48V DC solar and battery-powered lighting product.

The general supplier text also mentions:

• Diesel generator towers

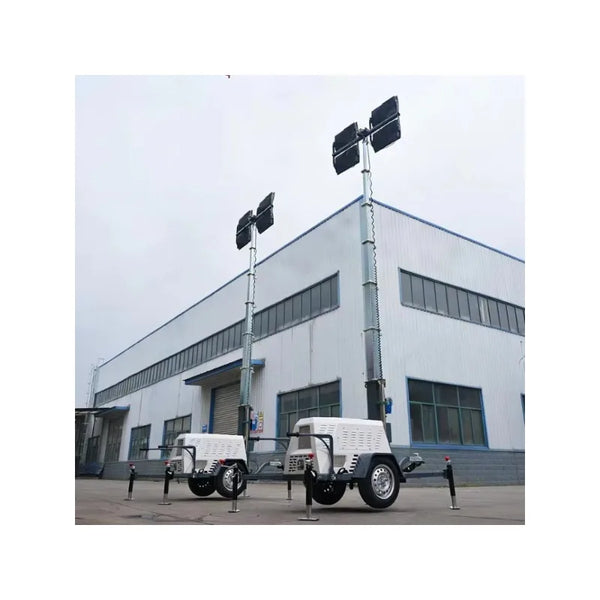

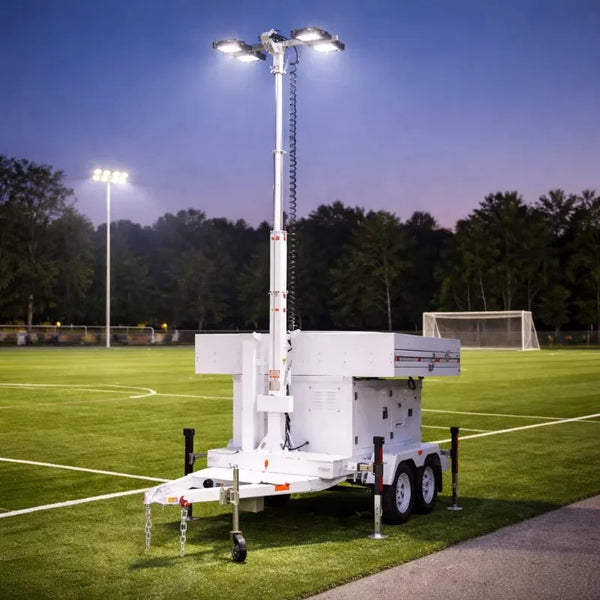

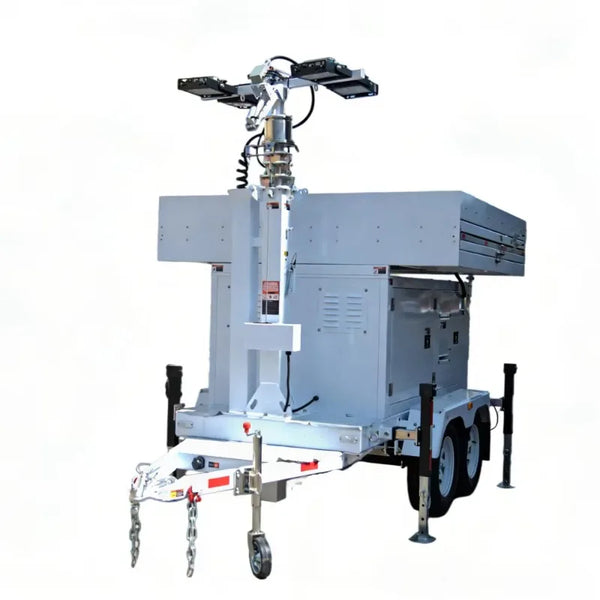

• Trailer-mounted towers

• Hydraulic masts

• AC-powered towers

• Self-loading light towers

These should not be treated as standard TPE-2400L features.

The final listing should identify the selected configuration clearly, such as:

• Solar battery mobile lighting tower

• 48V DC portable lighting tower

• Trailer-mounted solar lighting tower

• Stationary solar area light

Each configuration should have a separate SKU, images, price, battery, solar system, mast, and transport specifications.

Luminous Output

The TPE-2400L is listed with a total luminous output of approximately 192,000 lumens.

Before publication, confirm whether this value represents:

• Total output from all lamp heads

• Initial LED output

• Delivered luminaire output

• Output before optical losses

• Maximum optional configuration

The final product page should also include:

• Lamp quantity

• Power per lamp

• Beam pattern

• Average lux level

• Illuminated area

• Lux at selected distances

• Photometric report

Efficiency and Power Calculation

The listed system values are:

• Luminous output: approximately 192,000 lm

• Luminous efficiency: approximately 160 lm/W

Based on these values:

192,000 lm ÷ 160 lm/W = approximately 1,200W

This suggests a total LED load near 1.2kW.

Before publication, verify whether 1,200W represents:

• Total LED module power

• Complete luminaire input

• Maximum lighting mode

• A multi-lamp combination

Battery and solar-system sizing should be calculated using the complete system load, including drivers, mast controls, communications, and conversion losses.

360-Degree Lighting Coverage

The listed 360-degree angle likely refers to overall illumination around the tower.

This may be achieved through:

• Multiple outward-facing lamp heads

• Circular LED modules

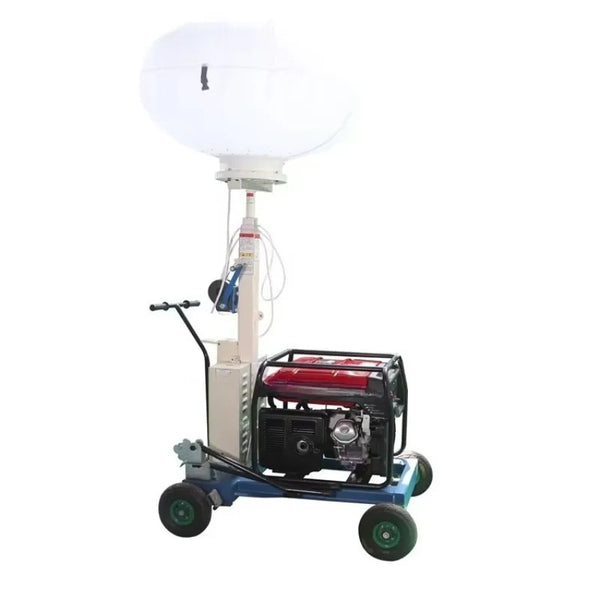

• Balloon-style diffuser

• Rotating lighting assembly

Before publication, confirm:

• Individual lamp beam angle

• Lamp arrangement

• Horizontal coverage

• Vertical beam angle

• Dark zones

• Mounting height

• Light-distribution diagram

48V DC Electrical System

The lighting system operates from a listed 48V DC supply.

A 48V architecture may support:

• Battery-bank operation

• Solar-energy storage

• Lower current than comparable 12V or 24V systems

• Reduced cable losses

• Integration with industrial DC equipment

Before publication, confirm:

• Permitted voltage range

• Maximum current

• Connector type

• Cable size

• Circuit protection

• Polarity protection

• Low-voltage shutdown

• Overvoltage protection

Battery System

Battery specifications are not provided.

Before publication, confirm:

• LiFePO4, AGM, gel, or lead-acid chemistry

• Nominal voltage

• Battery capacity in Ah

• Nominal stored energy in kWh

• Usable depth of discharge

• Cycle-life rating

• Integrated battery-management system

• Battery enclosure

• Charging-temperature range

• Replacement procedure

Battery chemistry and capacity will significantly affect runtime, weight, charging time, and service life.

Estimated Battery Runtime

Runtime should be calculated using:

• Total LED power

• Battery voltage

• Battery capacity

• Usable depth of discharge

• Driver efficiency

• Environmental temperature

• Dimming level

• Auxiliary electrical loads

For example, a nominal 48V 200Ah battery contains approximately 9.6kWh before system losses and discharge limits.

At a 1.2kW lighting load, theoretical runtime would be approximately eight hours before accounting for losses and battery restrictions.

This is only an example and should not be used as the final product claim without an actual battery specification and test.

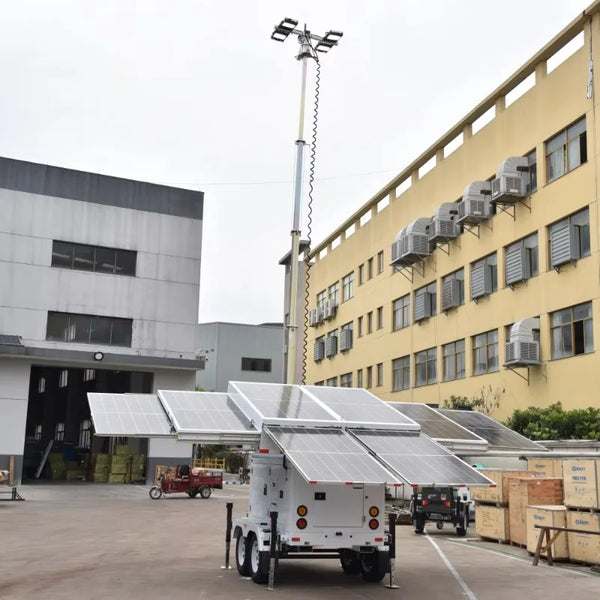

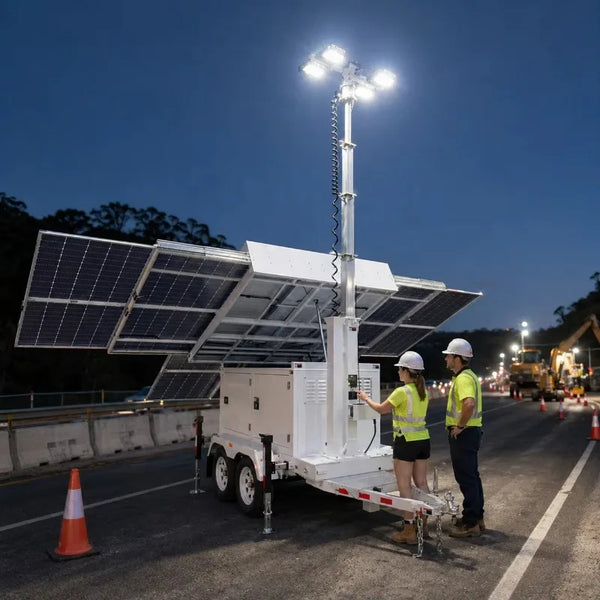

Solar Charging System

The solar configuration requires exact photovoltaic specifications.

Before publication, confirm:

• Solar-panel wattage

• Number of panels

• Panel type

• Panel dimensions

• Folding or fixed design

• Charge-controller type

• MPPT support

• Maximum charging current

• Full charging time

• Expected daily energy yield

• Cloudy-weather autonomy

The required solar capacity depends on daily runtime, battery size, geographic location, weather, and seasonal sunlight.

External DC Power

The product may also operate from an external DC source.

Before publication, confirm:

• Input connector

• Voltage tolerance

• Required current capacity

• Cable length

• Recommended power supply

• Operation while charging

• Automatic source switching

• Reverse-polarity protection

LED Lighting System

The TPE-2400L uses LED lighting technology.

Potential benefits include:

• High energy efficiency

• Instant startup

• Dimming capability

• Reduced maintenance

• Longer service life than many conventional lamps

• Better compatibility with battery and solar systems

Actual performance depends on LED chip quality, driver design, thermal management, ambient temperature, and optical losses.

Colour Rendering

The listed colour-rendering index is Ra 70.

This may be suitable for:

• General construction lighting

• Road work

• Outdoor security areas

• Mining sites

• Temporary industrial illumination

Ra 70 may be less suitable for applications requiring accurate colour differentiation.

Higher-CRI versions should only be advertised if separately tested.

Colour Temperature

The exact colour temperature is not supplied.

Before publication, confirm whether the standard version uses:

• 4000K neutral white

• 5000K daylight

• 6000K cool white

• Another fixed colour temperature

Colour temperature can affect visibility, glare, worker comfort, and perceived brightness.

Dimming Support

The light supports dimming.

Before publication, confirm:

• Dimming range

• Number of brightness levels

• Manual or remote control

• PWM or current-based dimming

• Timer control

• Automatic light sensor

• Battery-saving mode

• Whether dimming affects colour stability

Dimming may extend battery runtime when full output is not required.

IP23 Protection

The listed IP23 rating generally indicates:

• Protection against solid objects larger than approximately 12.5 mm

• Protection against water spray at limited angles

IP23 is lower than IP65 or IP66 and does not indicate:

• Dust-tight construction

• Protection against strong water jets

• Water immersion resistance

• Unrestricted heavy-rain exposure

Before publication, confirm which components are IP23 rated:

• Lamp heads

• Battery enclosure

• Control cabinet

• Solar controller

• Connectors

• Complete machine

Outdoor marketing claims should remain consistent with the verified environmental rating.

Operating Temperature

The listed working-temperature range is approximately:

• Minimum: -20°C

• Maximum: 60°C

Before publication, confirm:

• Battery discharge performance

• Battery charging limits

• LED-driver derating

• Solar-controller operation

• Cable flexibility

• Display or controller performance

• Storage-temperature range

• Humidity tolerance

Some battery chemistries cannot be charged safely below freezing without heating or protection.

Working Life

The LED system has a listed service life of up to approximately 50,000 hours.

Before publication, confirm:

• L70 or L80 lifetime standard

• Ambient test temperature

• LED-driver lifetime

• Daily operating cycle

• Thermal-management conditions

• Battery replacement interval

• Warranty relationship

The battery, solar controller, charger, mast, and mechanical components will have separate service lives.

Mast System

No mast specifications are supplied.

Before publication, confirm:

• Maximum height

• Retracted height

• Number of sections

• Mast material

• Manual, electric, pneumatic, or hydraulic lift

• Raising and lowering time

• Rotation range

• Mechanical locking system

• Maximum wind-speed rating

• Emergency lowering procedure

Mobility System

The listing describes a lighting tower but does not define its chassis.

Confirm whether the product includes:

• Hand-push trolley

• Trailer chassis

• Skid base

• Forklift pockets

• Lifting points

• Stabilizing outriggers

The final listing should include dimensions, weight, towing requirements, and transport restrictions.

Suitable Applications

The TPE-2400L may be suitable for:

• Construction sites

• Road maintenance

• Mining and quarry operations

• Emergency response

• Disaster-relief work

• Outdoor events

• Ports and warehouses

• Industrial yards

• Remote job sites

• Temporary security lighting

• Railway maintenance

• Utility repairs

The final system should be selected according to illumination requirements, nightly runtime, solar availability, environmental conditions, and transport needs.

Customization Options

Available customization may include:

• Lamp quantity

• Total lamp power

• Luminous output

• Beam arrangement

• Colour temperature

• CRI

• Battery chemistry

• Battery capacity

• Solar-panel size

• Charge-controller type

• Mast height

• Mast-lifting system

• Trailer or trolley design

• Dimming control

• Remote monitoring

• Housing colour

• Branding

Each customized configuration should receive an approved technical specification and electrical diagram.

Package Contents

Depending on the selected configuration, the package may include:

• TPE-2400L lighting assembly

• LED lamp heads

• Telescopic mast

• 48V battery bank

• Battery-management system

• Solar panels

• Solar charge controller

• DC charger

• Electrical control cabinet

• Dimming controller

• Mobile base or trailer

• Stabilizing supports

• Power cables

• User manual

• Wiring diagram

Only verified included components should appear on the final product page.

Warranty

The listed warranty period is two years.

Before publication, confirm whether coverage includes:

• LED modules

• LED drivers

• Battery bank

• Battery-management system

• Solar panels

• Charge controller

• DC charger

• Mast

• Lifting mechanism

• Control cabinet

• Dimming system

• Labour

• Replacement parts

• Return shipping

Battery and solar components may have separate warranty periods.

Important Safety Information

Install the lighting tower on firm, level ground and deploy all stabilizers before extending the mast.

Never move, tow, or reposition the unit while the mast is raised.

Use qualified personnel for 48V DC wiring, battery installation, solar connections, charging-system service, mast repairs, and commissioning.

Observe correct battery polarity and use only the charger specified for the selected battery chemistry. Keep electrical connectors protected from rain and standing water according to the verified IP rating.
