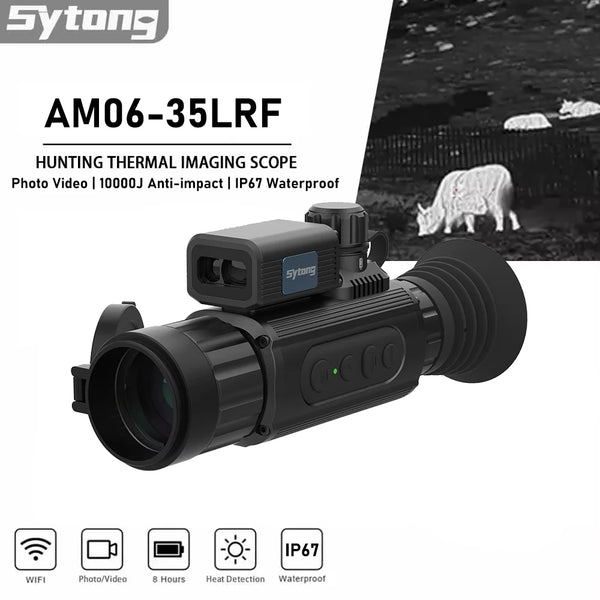

    Sytong AM06-35LRF Thermal I...

    Observe heat signatures in complete darkness, fog, smoke, and visually challenging outdoor environments with the Sytong AM06-35LRF Thermal Imaging Scope. Featuring a 640 × 512 thermal detector, 12 μm pixel pitch, 35 mm F1.0 objective lens, and a 1024 × 768 OLED display, this device is designed for detailed long-distance thermal observation.

    The AM06-35LRF provides approximately 2x base magnification with stepped digital zoom up to 8x. It also includes multiple thermal palettes, picture-in-picture viewing, photo and video recording, Wi-Fi connectivity, 3D gyroscope functions, thermal tracking, and support for memory cards up to 128GB.

    The exact brand, laser-rangefinder specification, display version, recoil rating, and warranty must be verified before publication.

    Key Features

    • 640 × 512 thermal detector

    • 12 μm pixel pitch

    • NETD listed at 18 mK or lower

    • 35 mm F1.0 objective lens

    • Approximately 2x base magnification

    • 1x, 2x, 4x, and 8x digital zoom

    • Detection range up to approximately 1,750 m

    • 1024 × 768 OLED display

    • Optional high-resolution OLED display

    • Multiple thermal image palettes

    • Picture-in-picture mode

    • Integrated photo and video recording

    • Wi-Fi and mobile application support

    • Thermal tracking and 3D gyroscope

    • IP67 environmental protection

    • Up to approximately 8–10 hours battery operation

    Product Specifications

    • Brand: Confirm as Sytong or ZIYOUHU

    • Model: AM06-35LRF

    • Product Type: Thermal Imaging Scope

    • Thermal Sensor Resolution: 640 × 512 Pixels

    • Pixel Pitch: 12 μm

    • Thermal Sensitivity: NETD ≤18 mK, subject to verification

    • Objective Lens: 35 mm

    • Lens Aperture: F1.0

    • Base Magnification: Approximately 2x

    • Digital Zoom: 1x, 2x, 4x, and 8x

    • Conflicting Listed Magnification: 8x

    • Detection Distance: Up to Approximately 1,750 m

    • Laser Rangefinder: Implied by Model Name, exact specification to be confirmed

    • Standard Display: 0.39-Inch OLED

    • Standard Display Resolution: 1024 × 768 Pixels

    • Optional Display: 0.6-Inch OLED

    • Optional Display Resolution: Listed as 1920 × 1480 Pixels

    • Thermal Palettes: White Hot, Black Hot, Sky Mode, Red Hot, False Colour, and Thermal Mode

    • Picture-in-Picture: Supported

    • Photo Recording: Supported

    • Video Recording: Supported

    • Wi-Fi: Supported

    • Mobile Application: Supported

    • Thermal Tracking: Supported

    • 3D Gyroscope: Supported

    • Memory Card: TF Card up to 128GB

    • Battery Type: Rechargeable Panasonic Lithium Battery Pack, subject to verification

    • Battery Runtime: Approximately 8–10 Hours

    • Operating Temperature: Approximately -20°C to 50°C

    • Protection Rating: IP67

    • Listed Recoil Resistance: Up to 10,000J, subject to documented testing

    • Dimensions: Confirm Before Publishing

    • Weight: Confirm Before Publishing

    • Warranty: Confirm Before Publishing

    • Country of Origin: China

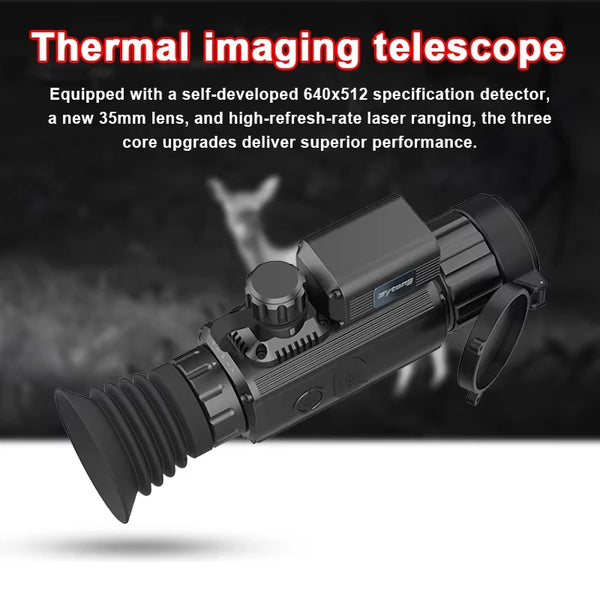

    640 × 512 Thermal Detector

    The AM06-35LRF uses a 640 × 512 thermal sensor with a 12 μm pixel pitch.

    This configuration may support:

    • Detailed thermal imagery

    • Improved separation between nearby heat sources

    • Better image quality during digital magnification

    • Clearer observation of smaller thermal subjects

    • More usable detail at longer distances

    Actual performance depends on weather, thermal contrast, lens quality, image processing, focus, and display settings.

    Thermal Sensitivity

    The detector is listed with a NETD value of 18 mK or lower.

    A lower NETD value generally indicates improved ability to distinguish small temperature differences, which may support clearer images in:

    • High humidity

    • Fog

    • Light rain

    • Low-contrast thermal scenes

    • Uniform backgrounds

    • Changing temperatures

    The exact test conditions and image-processing mode should be confirmed.

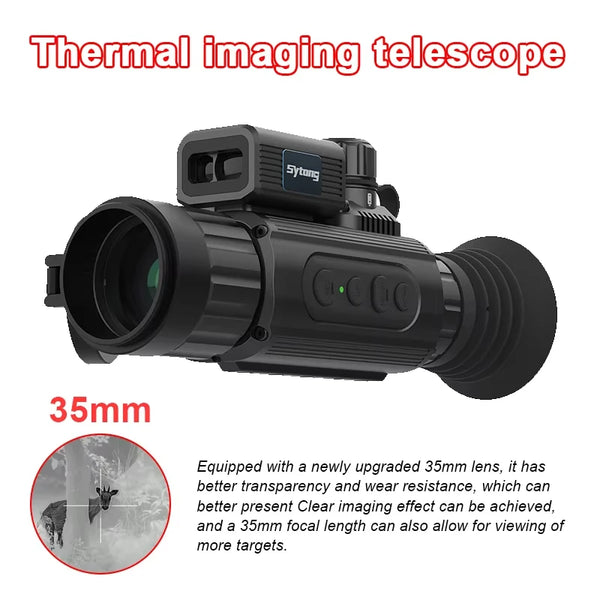

    35 mm F1.0 Objective Lens

    The 35 mm germanium objective lens is listed with an F1.0 aperture.

    This configuration is intended to provide a balance between:

    • Field of view

    • Base magnification

    • Thermal energy collection

    • Observation distance

    • Overall device size

    Before publication, confirm the exact horizontal and vertical field of view, minimum focusing distance, and lens transmission.

    Magnification and Digital Zoom

    The detailed specifications list:

    • Base Magnification: Approximately 2x

    • Digital Zoom: 1x, 2x, 4x, and 8x

    The separate 8x magnification value likely refers to the maximum digital zoom setting rather than optical magnification.

    Digital zoom enlarges the displayed image but does not increase the native sensor resolution. Fine detail may decrease at higher zoom levels.

    Detection Distance

    The device is listed with a thermal detection range of up to approximately 1,750 m.

    Detection means that a heat source may be observed. It does not necessarily mean that the subject can be recognized or positively identified at that distance.

    Actual detection performance depends on:

    • Target dimensions

    • Temperature contrast

    • Weather

    • Humidity

    • Atmospheric interference

    • Background temperature

    • Lens focus

    • User settings

    Recognition and identification ranges should be stated separately when verified.

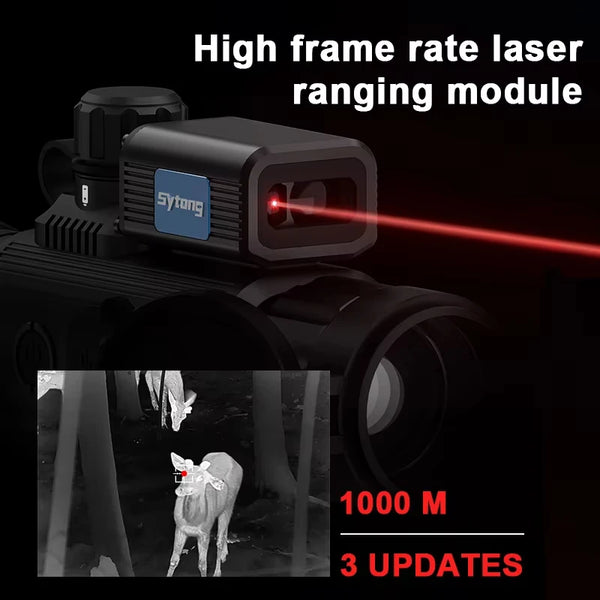

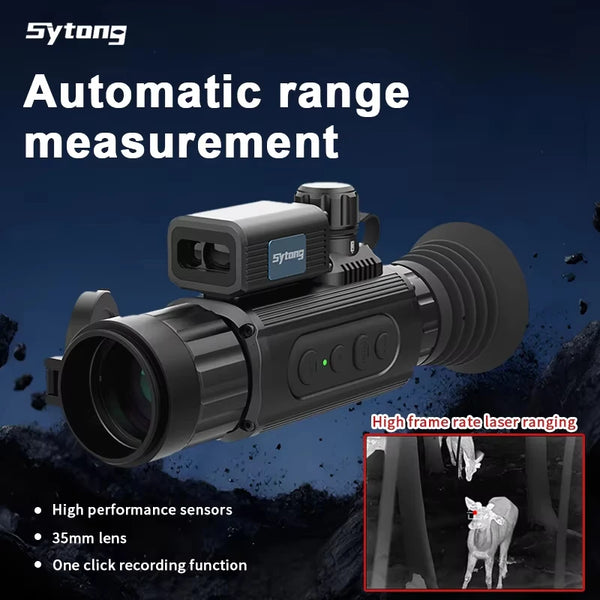

    Laser Rangefinder

    The model name includes “LRF,” which normally indicates a laser-rangefinder version. However, no ranging specifications have been supplied.

    Before publication, confirm:

    • Maximum measuring distance

    • Minimum measuring distance

    • Measurement accuracy

    • Laser classification

    • Single-ranging mode

    • Continuous-ranging mode

    • Measurement units

    • Angle measurement

    • Weather limitations

    Do not advertise an integrated rangefinder unless it is included in the exact supplied configuration.

    OLED Display Options

    Standard Display

    The standard version is listed with:

    • 0.39-inch OLED screen

    • 1024 × 768-pixel resolution

    Optional Display

    A luxury version is listed with:

    • 0.6-inch OLED screen

    • 1920 × 1480-pixel resolution

    The optional display resolution should be verified, as it may be a supplier formatting error.

    Each display version should be published as a separate selectable configuration.

    Thermal Image Modes

    The device includes multiple thermal palettes, including:

    • White Hot

    • Black Hot

    • Sky Mode

    • Red Hot

    • False Colour

    • Thermal Mode

    These display modes may help users interpret thermal scenes under different environmental and observation conditions.

    The exact firmware palette names should be confirmed.

    Picture-in-Picture Mode

    Picture-in-picture mode displays a magnified section of the thermal image while retaining the wider view.

    This can help with:

    • Detailed observation

    • Subject tracking

    • Maintaining situational awareness

    • Viewing smaller thermal features

    • Examining a selected area

    Confirm the available PIP magnification and screen-position options.

    Photo and Video Recording

    The device supports internal photo and video recording.

    Before publication, confirm:

    • Photo resolution

    • Video resolution

    • Video frame rate

    • File formats

    • Audio recording

    • Maximum recording length

    • Available user storage

    • Automatic recording

    • Date and time stamping

    • USB transfer method

    Memory Card Support

    The thermal scope supports a TF memory card with a listed maximum capacity of 128GB.

    Confirm:

    • Included memory-card capacity

    • Supported file system

    • Minimum card speed

    • Whether recording works without a card

    • Maximum recording file size

    A memory card should not be shown as included unless supplied in the package.

    Wi-Fi and Mobile Application

    Built-in Wi-Fi may allow connection with a compatible smartphone or tablet.

    Possible functions may include:

    • Live image viewing

    • Remote device control

    • Photo transfer

    • Video transfer

    • Firmware updates

    • Device configuration

    • File download

    Before publishing, confirm the official application name, supported Android and iOS versions, and Wi-Fi connection range.

    3D Gyroscope

    The listed 3D gyroscope may support functions such as:

    • Device-angle indication

    • Cant-angle display

    • Orientation monitoring

    • Motion-related interface features

    The exact functions should be confirmed from the official firmware documentation.

    Thermal Tracking

    Thermal tracking may highlight or follow prominent heat sources within the displayed scene.

    Before publishing, confirm:

    • Tracking modes

    • Target selection process

    • Tracking limitations

    • Number of simultaneously tracked heat sources

    • Whether the feature works during recording

    Battery and Runtime

    The device uses a listed Panasonic lithium battery pack with approximately 8–10 hours of operating time.

    Actual runtime may vary according to:

    • Wi-Fi usage

    • Video recording

    • Display brightness

    • Digital zoom

    • Thermal tracking

    • Ambient temperature

    • Battery condition

    • Optional rangefinder use

    Confirm the battery capacity, charging time, charging interface, and whether the battery is removable.

    IP67 Environmental Protection

    The IP67 rating indicates that the verified enclosure may provide dust protection and resistance to temporary water immersion under defined test conditions.

    Before publication, verify:

    • Exact covered model

    • Maximum tested depth

    • Maximum immersion duration

    • Port-cover requirements

    • Battery-compartment sealing

    • Water-damage warranty terms

    IP67 does not mean the device is designed for prolonged underwater use.

    Operating Temperature

    The listed operating-temperature range is approximately -20°C to 50°C.

    Battery duration, display performance, and startup time may vary near the minimum and maximum temperature limits.

    The storage-temperature range should also be added when available.

    Recoil-Resistance Claim

    The device is listed with a maximum recoil resistance of 10,000 joules.

    This is a significant performance claim and should only be published when supported by documented testing identifying:

    • Test method

    • Number of test cycles

    • Direction of impact

    • Device configuration

    • Mounting arrangement

    • Pass criteria

    • Warranty coverage

    Avoid claiming compatibility with particular platforms without verified manufacturer documentation.

    Package Contents

    Confirm whether the standard package includes:

    • AM06-35LRF thermal imaging device

    • Rechargeable battery

    • Battery charger

    • USB cable

    • Lens cap

    • Eye cup

    • Carrying case

    • Cleaning cloth

    • User manual

    • Mounting accessories

    • TF memory card

    Optional items should not be shown as included unless supplied with the selected package.

    Warranty and Support

    Before publication, confirm:

    • Warranty duration

    • Thermal-sensor coverage

    • OLED-display coverage

    • Battery coverage

    • Laser-rangefinder coverage

    • Wi-Fi and recording coverage

    • Water-resistance coverage

    • Labour and shipping terms

    • Warranty exclusions

    Important Use Information

    Avoid pointing the thermal detector directly at the sun, welding arcs, lasers, or other intense energy sources, as this may permanently damage the sensor.

    Use the device according to manufacturer instructions and all applicable local laws and regulations.

    Keep the lens clean and dry, close all protective covers before outdoor use, and inspect the housing, battery, controls, lens, and mounting components before operation.
