    Pulsar Thermion 2 XG50 Ther...

    Observe heat signatures in darkness, smoke, fog, and challenging outdoor conditions with the Thermion 2 XG50 Thermal Imaging Optic. The listed configuration combines a 640 × 480 thermal sensor, 12 μm pixel pitch, 50 mm germanium objective lens, AMOLED display, digital recording, and wireless mobile connectivity.

    The device is described as providing 3x base magnification with digital magnification up to 24x. It also includes multiple thermal colour palettes, configurable digital reticles, internal media storage, and rechargeable battery power.

    The supplied information contains conflicting brand, origin, weight, mounting, magnification, and field-of-view specifications. All technical and authenticity details must be verified before publication.

    Key Features

    • 640 × 480 thermal sensor

    • 12 μm pixel pitch

    • NETD below 40 mK, subject to verification

    • 50 mm F1.0 germanium objective lens

    • Approximately 3x base magnification

    • Digital magnification up to 24x

    • 1024 × 768 AMOLED display

    • Eight thermal colour palettes

    • Multiple digital reticle options

    • Built-in photo and video recording

    • 16GB listed internal storage

    • Wi-Fi mobile application support

    • Rechargeable battery system

    • Up to nine hours listed operating time

    • IPX7 waterproof rating, subject to certification

    • USB Type-C external power support

    Product Specifications

    • Brand: Confirm as Pulsar or Unbranded Before Publishing

    • Model: Thermion 2 XG50

    • Product Type: Thermal Imaging Monocular or Digital Thermal Optic

    • Condition: Confirm Before Publishing

    • Thermal Sensor Resolution: 640 × 480 Pixels

    • Pixel Pitch: 12 μm

    • Thermal Sensitivity: NETD Below 40 mK, subject to verification

    • Objective Lens: 50 mm Germanium

    • Lens Aperture: F1.0

    • Base Magnification: Approximately 3x

    • Maximum Digital Magnification: Approximately 24x

    • Conflicting Listed Magnification: 1x

    • Field of View: Approximately 8.8° × 6.6°

    • Linear Field of View: Approximately 15.4 × 11.5 m at 100 m

    • Display Type: AMOLED

    • Display Resolution: 1024 × 768 Pixels

    • Thermal Palettes: Eight Modes

    • Reticle Options: Up to 10 Shapes in Nine Colours, subject to verification

    • Internal Storage: 16GB

    • Recording Format: MP4 Video and JPG Images

    • Recording Resolution: Up to 1024 × 768, subject to confirmation

    • Wi-Fi: Supported

    • Mobile Application: Stream Vision 2, subject to model authenticity

    • Supported Platforms: iOS and Android

    • Listed Detection Range: Up to Approximately 2,300 m

    • Battery Type: Rechargeable

    • Listed Runtime: Up to Approximately Nine Hours

    • External Power: USB Type-C

    • Water Resistance: IPX7, subject to valid test documentation

    • Listed Operating Temperature: Approximately -25°C to 50°C

    • Housing Material: Metal

    • Listed Weight: Confirm as Approximately 900 g or 1,098 g

    • Mounting System: Confirm as 30 mm Rings or 20 mm Base

    • Warranty: Listed as Three Years, subject to seller authorization

    • Country of Origin: Confirm as Lithuania or China

    640 × 480 Thermal Sensor

    The listed 640 × 480 detector uses a 12 μm pixel pitch to capture differences in infrared energy and convert them into a visible thermal image.

    A higher native sensor resolution can support:

    • Improved subject definition

    • More usable detail during digital magnification

    • Clearer separation of nearby heat sources

    • Better observation in low-contrast environments

    Actual performance depends on atmospheric conditions, temperature contrast, lens quality, image processing, and display settings.

    Thermal Sensitivity

    The listed NETD value is below 40 mK.

    NETD measures the detector’s ability to distinguish small temperature differences. Lower values generally indicate greater thermal sensitivity under appropriate test conditions.

    The exact NETD test method and firmware mode should be confirmed before this specification is published.

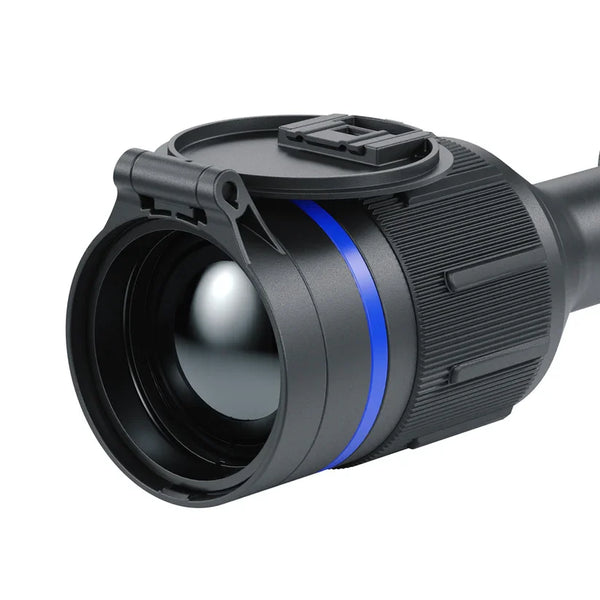

    50 mm Germanium Lens

    The F50 F1.0 germanium lens is designed to collect infrared energy for medium- and long-distance thermal observation.

    The 50 mm focal length generally provides:

    • Narrower field of view

    • Greater apparent subject size

    • Improved observation reach

    • More detailed viewing at distance

    The lens material and aperture must be verified for the exact supplied product.

    Magnification Range

    The detailed information lists:

    • Base Magnification: Approximately 3x

    • Maximum Digital Magnification: Approximately 24x

    The separate specification stating 1x magnification conflicts with these figures and should be removed unless it refers to another version.

    Digital zoom enlarges the displayed image but does not increase the thermal sensor’s native resolution. Image detail may decrease at higher settings.

    Field of View

    The detailed field of view is listed as:

    • Angular: Approximately 8.8° × 6.6°

    • Linear: Approximately 15.4 × 11.5 m at 100 m

    The separate “240 ft” specification is incomplete because it does not state the observation distance or magnification setting.

    Detection Range

    The device is advertised with a detection range of approximately 2,300 m for a human-sized heat source under suitable conditions.

    Detection means that a heat source may be noticed. It does not necessarily mean that the subject can be recognized or positively identified at that distance.

    Actual detection performance varies with:

    • Target size

    • Temperature contrast

    • Weather

    • Humidity

    • Rain or fog

    • Background temperature

    • User settings

    • Display conditions

    Recognition and identification ranges should be stated separately when verified data is available.

    AMOLED Display

    The internal AMOLED display is listed with a resolution of 1024 × 768 pixels.

    Potential display benefits include:

    • High contrast

    • Clear menu visibility

    • Smooth image presentation

    • Good performance in low temperatures

    • Detailed thermal-image playback

    Confirm display refresh rate, brightness controls, diopter range, and eye-relief specification before publication.

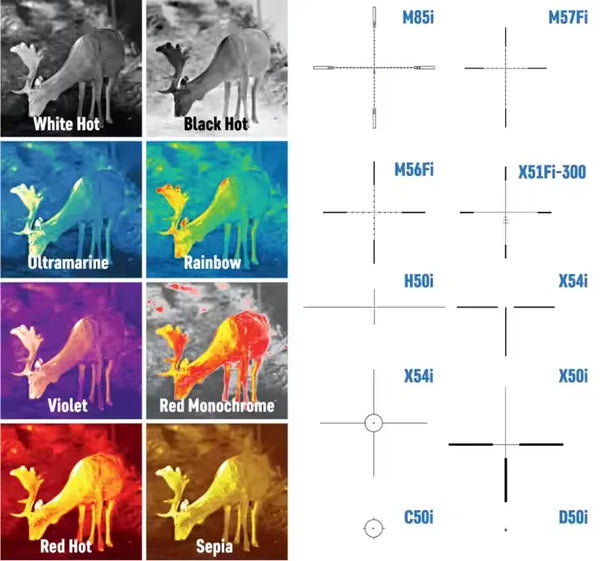

    Thermal Colour Palettes

    The device is listed with eight thermal colour modes.

    Depending on the verified firmware, available modes may include:

    • White Hot

    • Black Hot

    • Red Hot

    • Rainbow

    • Ultramarine

    • Violet

    • Sepia

    • Red Monochrome

    Only palettes available on the supplied model should be included in the final listing.

    Digital Recording

    The optic is described as supporting internal photo and video recording with 16GB storage.

    Confirm:

    • Recording resolution

    • File formats

    • Available recording time

    • Whether audio recording is supported

    • Storage available to the user

    • USB transfer method

    • Automatic recording features

    • Date and time stamping

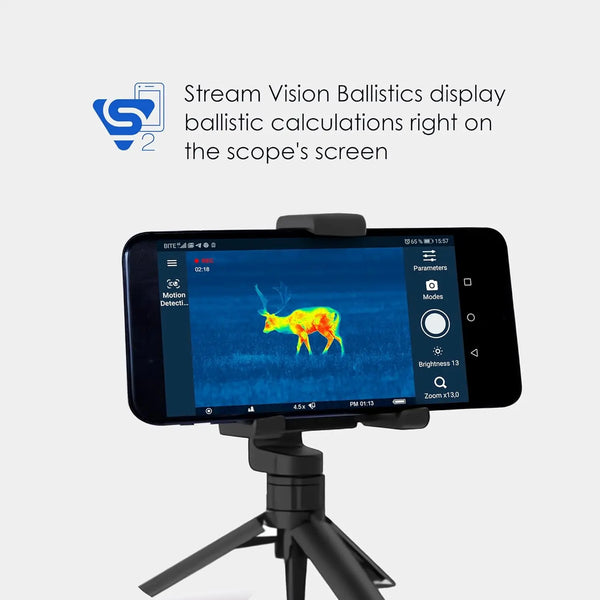

    Wi-Fi Connectivity

    Wi-Fi support may allow the device to connect with a compatible smartphone or tablet.

    Depending on the verified model and application, functions may include:

    • Live-view streaming

    • Remote control

    • File transfer

    • Firmware updates

    • Settings management

    • Image and video sharing

    The application name, regional availability, supported operating systems, and connection range should be confirmed.

    Battery and External Power

    The listed rechargeable battery system provides up to approximately nine hours of operation under selected conditions.

    Actual runtime may vary according to:

    • Ambient temperature

    • Wi-Fi usage

    • Video recording

    • Display brightness

    • Digital zoom

    • Battery condition

    • Firmware configuration

    Confirm the battery model, capacity, charging time, replacement procedure, and whether a charger is included.

    Weather Protection

    The product is described as IPX7 waterproof, meaning the verified housing may resist temporary water immersion under specified laboratory conditions.

    Before publishing this claim, confirm:

    • Valid IP test report

    • Exact tested model

    • Port-cover requirements

    • Battery-compartment sealing

    • Water-resistance limitations

    • Warranty exclusions

    IPX7 does not automatically provide a dustproof rating.

    Operating Temperature

    The listed operating-temperature range is approximately -25°C to 50°C.

    Battery duration, display response, and image processing may be affected near the limits of the operating range.

    The storage-temperature range should also be added when available.

    Construction and Weight

    The housing is described as metal and shock resistant.

    The supplied weight conflicts between:

    • Approximately 900 g

    • Approximately 1,098 g

    Confirm whether the stated weight includes:

    • Battery

    • Lens cover

    • Mounting accessories

    • Eye cup

    • External controls

    Mounting Specification Conflict

    The supplied information lists both:

    • A 20 mm mounting base

    • Standard 30 mm mounting rings

    These are different installation systems.

    The final listing should clearly state the exact mounting method and whether any mounting hardware is included.

    Reticle and Adjustment Features

    The supplied specifications mention multiple digital reticles and several zeroing profiles.

    Before publication, confirm:

    • Number of available reticles

    • Reticle colours

    • Adjustment unit

    • Click or adjustment value

    • Number of zeroing profiles

    • Number of saved distances

    • Freeze-zero function

    • Picture-in-picture support

    • Cant-angle indicator

    The “first focal plane” designation should only be used when the manufacturer specifically applies that terminology to the model.

    Authenticity and Brand Verification

    The product is listed as “pulasr,” while the detailed description refers to the Pulsar Thermion 2 XG50.

    Before using the Pulsar brand name, confirm:

    • Genuine manufacturer serial number

    • Authorized supply source

    • Original packaging

    • Manufacturer warranty eligibility

    • Matching firmware

    • Official product documentation

    • Country of manufacture

    An unverified or compatible product should not be advertised as an original branded model.

    Package Contents

    Confirm whether the standard package includes:

    • Thermal imaging device

    • Rechargeable battery

    • Battery charger

    • USB Type-C cable

    • Lens cover

    • Carrying case

    • Cleaning cloth

    • User manual

    • Mounting hardware

    Optional accessories should not be presented as included unless supplied with the selected package.

    Warranty

    A three-year warranty is mentioned in the detailed information.

    Before publication, confirm:

    • Warranty provider

    • Regional eligibility

    • Detector coverage

    • Display coverage

    • Battery coverage

    • Water-damage terms

    • Labour and shipping responsibility

    • Authorized-service requirements

    An original manufacturer warranty should not be advertised unless the seller and product are eligible.

    Important Use Information

    Avoid pointing the thermal sensor directly at the sun, lasers, welding arcs, or other intense energy sources, as these may damage the detector.

    Use and installation must comply with all applicable local laws, licensing requirements, privacy rules, and manufacturer instructions.

    Keep the lens clean and dry, protect the device during transport, and inspect the housing, controls, battery, lens, and mounting system before use.
