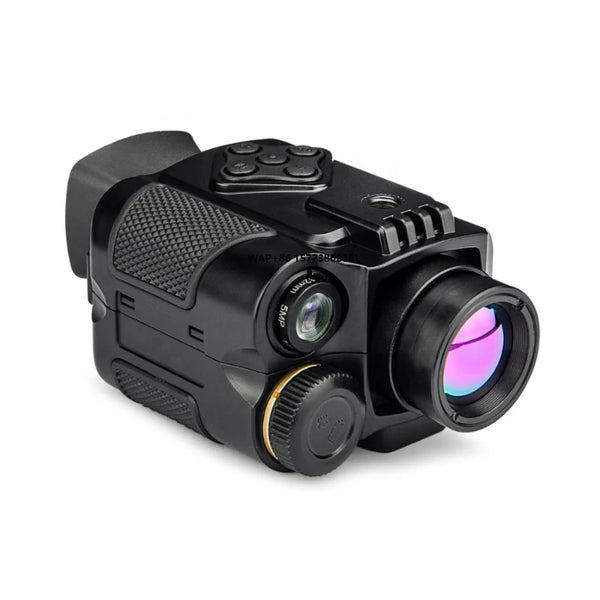

Observe heat signatures and low-light scenes with this compact Dual-Sensor Thermal and Digital Night-Vision Monocular. The device combines a 384 × 288 uncooled vanadium oxide thermal detector with a separate 640 × 480 ultra-sensitive CMOS low-light camera.

Its 19 mm germanium thermal lens, 25 Hz refresh rate, 5x digital zoom, nine thermal colour palettes, integrated recording, LCOS display, and lightweight 206 g body make it suitable for outdoor observation, property inspection, wildlife monitoring, search support, and general night-time viewing.

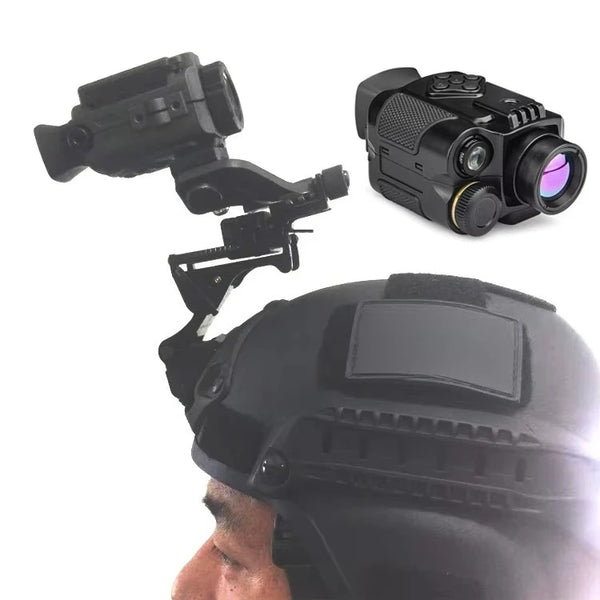

The device is listed as compatible with selected helmet and PVS-14-style mounting systems. Mounting hardware and compatibility should be verified before publication.

Key Features

• Dual thermal and low-light imaging systems

• 384 × 288 thermal detector

• 640 × 480 low-light CMOS camera

• Uncooled vanadium oxide thermal sensor

• 17 μm pixel pitch

• 19 mm germanium thermal objective lens

• 12 mm low-light camera lens

• 25 Hz thermal refresh rate

• 1x base magnification

• Up to 5x digital zoom

• Nine thermal colour palettes

• Photo, video, playback, and deletion functions

• 8GB TF storage card

• Video output

• Compact 206 g body

• IPX4 splash resistance

• Standard 1/4-20 tripod thread

• Helmet-mount compatibility, subject to verification

Product Specifications

• Brand: Confirm Before Publishing

• Model: Confirm Before Publishing

• Product Type: Dual-Sensor Thermal and Low-Light Monocular

• Thermal Detector Type: Uncooled Vanadium Oxide Focal Plane Array

• Thermal Detector Resolution: 384 × 288 Pixels

• Thermal Pixel Pitch: 17 × 17 μm

• Thermal Spectral Range: Approximately 8–14 μm

• Thermal Refresh Rate: 25 Hz

• Thermal Sensitivity: NETD ≤50 mK at 300K

• Thermal Objective Lens: 19 mm

• Thermal Lens Material: Germanium

• Thermal Optical Magnification: 1x

• Thermal Digital Zoom: Up to 5x

• Thermal Human Detection Range: Approximately 3–200 m

• Thermal Palette Count: Nine Modes

• Low-Light Camera Type: Ultra-Sensitive CMOS

• Low-Light Camera Resolution: 640 × 480 Pixels

• Low-Light Objective Lens: 12 mm

• Low-Light Focus: Fixed Focus

• Low-Light Optical Magnification: 1x

• Low-Light Digital Zoom: Up to 5x

• Minimum Low-Light Focus Distance: Approximately 0.2 m

• Low-Light Viewing Range: Approximately 2 m to Infinity, subject to available light

• Internal Display Type: LCOS

• Display Resolution: 640 × 480 Pixels

• Listed Alternative Resolution: 1280 × 960, subject to clarification

• Field of View: Approximately 14.5° × 11°

• Diopter Adjustment: Approximately ±5

• Brightness Levels: Three

• Brightness and Contrast Adjustment: Menu Controlled

• Video Recording: Supported

• Photo Capture: Supported

• Playback: Supported

• Storage: 8GB TF Card

• Video Output: Supported

• USB Interface: Mini USB

• Tripod Mount: 1/4-20 Thread

• Protection Rating: IPX4

• Battery Type: Rechargeable 14500 Lithium Battery

• Battery Voltage: 3.7V

• Battery Capacity: 750mAh

• Charging Input: 5V/2A

• Operating Voltage: Approximately 3.4–4.2V

• Operating Temperature: Approximately -20°C to 50°C

• Operating Humidity: Below 70%

• Dimensions: Approximately 102 × 76 × 49 mm

• Weight: Approximately 206 g

• Country of Origin: Chongqing, China

Dual-Sensor Imaging System

This monocular combines two separate imaging technologies.

Thermal Imaging

The thermal channel detects infrared energy emitted by people, animals, machinery, and surrounding objects. It does not require visible light to form an image.

Low-Light Digital Imaging

The separate CMOS channel uses available visible or near-infrared light to display scene details that may not appear in a thermal image.

The final listing should explain how users switch between the two imaging modes.

384 × 288 Thermal Detector

The thermal channel uses a 384 × 288 vanadium oxide detector with a 17 μm pixel pitch.

This configuration supports:

• Heat-source detection in darkness

• General outdoor thermal observation

• Separation of warm objects from cooler backgrounds

• Digital image enlargement

• Compact and lightweight construction

Thermal image quality depends on temperature contrast, weather, humidity, lens focus, and processing settings.

Thermal Sensitivity

The listed NETD value is 50 mK or lower at 300K.

Lower NETD values generally indicate improved ability to distinguish smaller temperature differences.

The exact thermal performance may vary with:

• Ambient temperature

• Humidity

• Lens condition

• Thermal palette

• Image-processing mode

• Target contrast

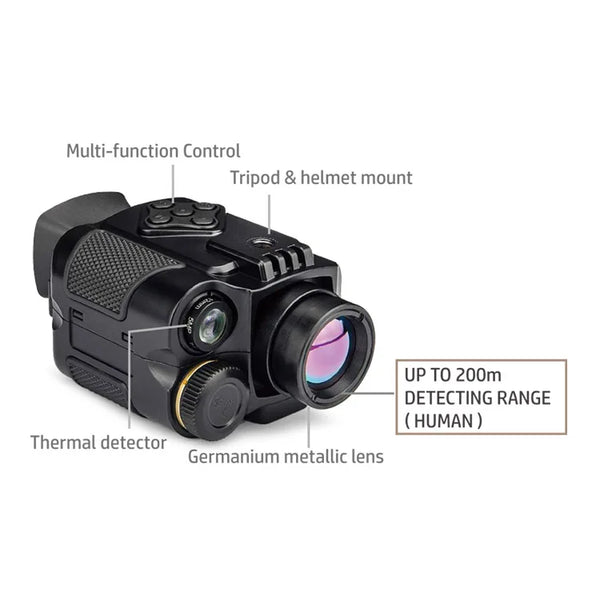

19 mm Germanium Thermal Lens

The thermal channel uses a 19 mm germanium objective lens.

This lens configuration is intended to provide a relatively wide field of view for:

• Short- to medium-range scanning

• Broad-area observation

• Property monitoring

• Wildlife viewing

• Search support

• Equipment inspection

The exact aperture and minimum thermal focusing distance should be confirmed.

Low-Light CMOS Camera

The secondary imaging channel uses a 640 × 480 ultra-sensitive CMOS camera with a 12 mm fixed-focus lens.

It may support:

• General low-light observation

• Visible scene detail

• Object and environment recognition

• Recording in available ambient light

The listing should confirm whether an infrared illuminator is built in, optional, or not supported.

Magnification

Both imaging channels are listed with:

• 1x optical magnification

• Digital enlargement up to 5x

Digital zoom enlarges the displayed image but does not increase the native resolution of either sensor.

Image quality may become softer at higher zoom levels.

Field of View

The listed field of view is approximately:

• Horizontal: 14.5°

• Vertical: 11°

The separate linear field-of-view specification is incomplete and should not be published until its exact distance reference is clarified.

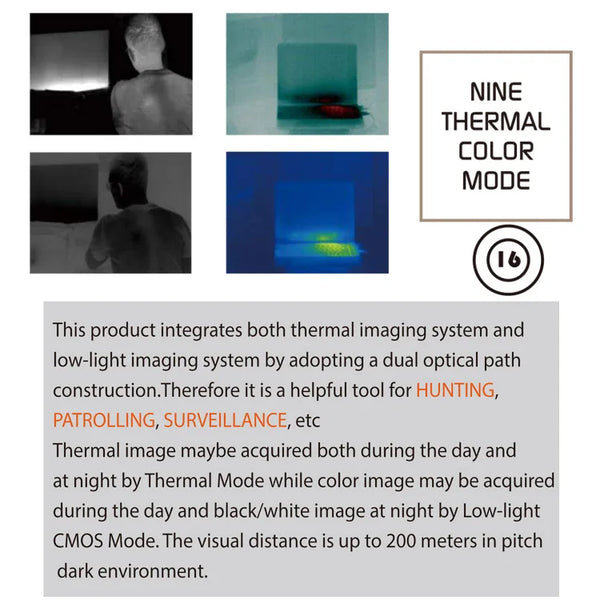

Thermal Colour Palettes

The device supports nine thermal display modes.

Available palettes may include:

• White Hot

• Black Hot

• Red Hot

• Iron Red

• Rainbow

• Fusion

• Target Highlight

• Outline Mode

• Additional False-Colour Modes

The exact palette names should be confirmed from the final firmware.

Internal LCOS Display

The monocular uses a 640 × 480 LCOS display.

Before publication, confirm:

• Display size

• Brightness range

• Contrast range

• Diopter-adjustment operation

• Eye-relief specification

• Screen refresh rate

• Automatic screen shutoff

The listed 1280 × 960 value should not be described as display resolution unless verified.

Recording and Playback

The device supports:

• Video recording

• Still-image capture

• File playback

• File deletion

• Date and time settings

Before publishing, confirm:

• Recorded video resolution

• Video frame rate

• File format

• Photo resolution

• Audio support

• Maximum recording duration

• Date and time stamping

• USB file-transfer procedure

Storage

The device includes a listed 8GB TF card.

Confirm:

• Whether the card is included

• Maximum supported capacity

• Required card speed class

• Supported file system

• Estimated recording duration

• Whether the card can be replaced

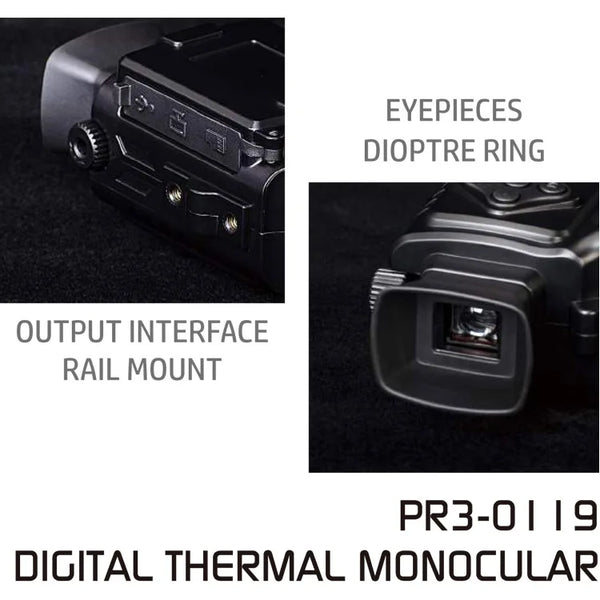

Video Output

Video output is supported, but the exact interface standard should be confirmed.

The final specification should include:

• Analogue or digital output

• Connector type

• Output resolution

• PAL or NTSC compatibility

• Included cable

• Simultaneous internal-display use

Battery System

The monocular uses one rechargeable 14500 lithium battery with a listed capacity of 750mAh.

Before publication, confirm:

• Actual operating time

• Charging duration

• Replaceable battery design

• Included charger

• Spare-battery compatibility

• Charging while operating

• Low-temperature runtime

A specific battery runtime should not be advertised until verified.

IPX4 Splash Resistance

The IPX4 rating indicates resistance to water splashes from different directions under defined test conditions.

The device should not be described as:

• Submersible

• IP67 waterproof

• Dustproof

• Suitable for prolonged heavy rain

All interface and battery covers should remain properly closed during outdoor use.

Compact Design

The listed physical dimensions are approximately:

• Length: 102 mm

• Width: 76 mm

• Height: 49 mm

• Weight: 206 g

Confirm whether the weight includes:

• Battery

• TF card

• Eye cup

• Mounting adapter

• Lens cap

Tripod and Helmet Mounting

The device includes a non-rotating 1/4-20 thread and is described as compatible with selected PVS-14 or helmet mounting systems.

Before publishing, confirm:

• Exact mounting interface

• Required adapter

• Whether the adapter is included

• Helmet compatibility

• Left- and right-eye adjustment

• Flip-up support

• Weight balance

• Safety-release mechanism

Do not advertise universal helmet compatibility without verified adapters.

Suitable Applications

This dual-sensor monocular may be suitable for:

• Wildlife observation

• Farm monitoring

• Property inspection

• Outdoor night-time viewing

• Search support

• Security patrols

• Machinery inspection

• Electrical inspection

• Camping observation

• General heat-source detection

Actual performance depends on the selected mode, weather, available light, target size, and thermal contrast.

Package Contents

Confirm whether the package includes:

• Dual-sensor monocular

• Rechargeable 14500 battery

• Battery charger

• Mini USB cable

• 8GB TF card

• Protective lens cap

• Eye cup

• Carrying pouch

• Tripod adapter

• Helmet-mount adapter

• Cleaning cloth

• User manual

Optional mounting equipment should not be shown as included unless supplied with the standard package.

Warranty and Support

Before publishing, confirm:

• Warranty duration

• Thermal-detector coverage

• CMOS-camera coverage

• Display coverage

• Battery coverage

• Recording-system coverage

• Water-resistance coverage

• Labour and return-shipping terms

• Warranty exclusions

Important Use Information

Avoid pointing either imaging sensor directly at the sun, lasers, welding arcs, or other intense light or heat sources, as this may damage the device.

Keep both lenses clean and dry, close all protective covers before outdoor use, and store the device in protective packaging when not in operation.

Follow all applicable privacy, observation, and local-use regulations.
