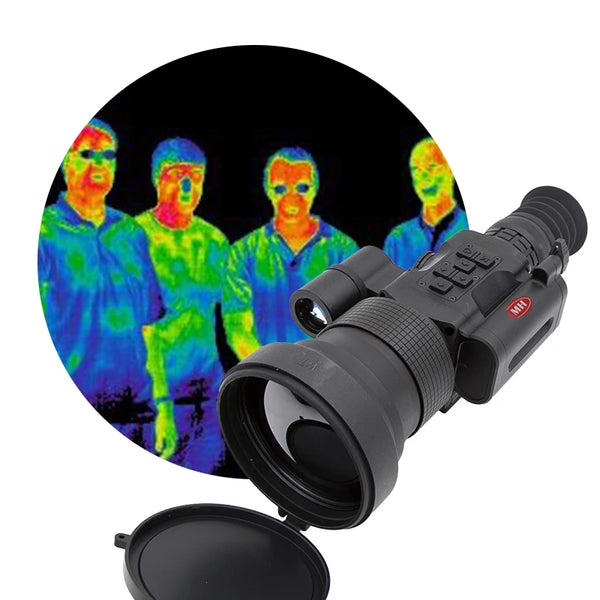

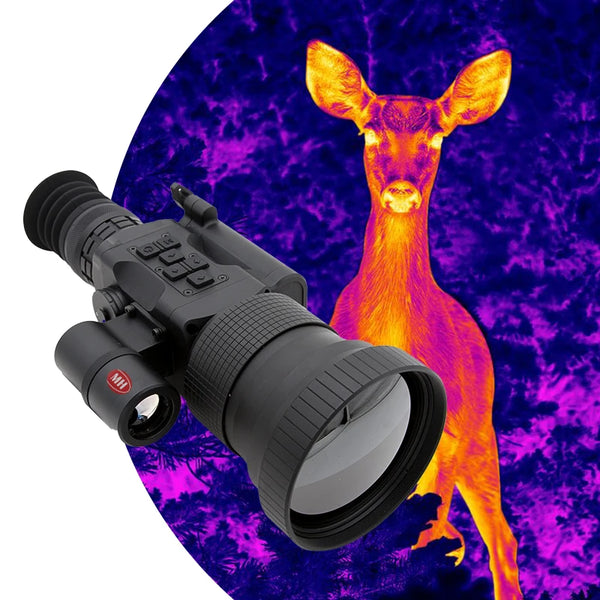

IP67 LRF 35/50/75mm Objective Lens Thermal Monocular Scope with Laser Rangefinder Hunting Night Vision Thermal Sight Scope

Observe heat signatures in complete darkness, low light, fog, smoke, and visually difficult outdoor environments with the MH-T675 Thermal Imaging Monocular. Available with either a 384 × 288 or 640 × 512 thermal detector, this portable device combines a high-resolution OLED display, digital zoom, Wi-Fi image transmission, photo and video recording, multiple thermal palettes, and optional laser rangefinding.

The MH-T675 may be configured with 35 mm, 50 mm, or 75 mm F1.0 objective lenses. Each lens and sensor combination should be listed separately because field of view, magnification, detection distance, dimensions, and price may vary.

Key Features

• 384 × 288 or 640 × 512 thermal sensor options

• 12 μm pixel pitch

• 1024 × 768 OLED display

• 35 mm, 50 mm, or 75 mm F1.0 lens options

• 1x, 2x, and 4x electronic zoom

• Optional laser rangefinder up to approximately 1,300 m

• Wi-Fi image transmission

• Photo and video recording

• Multiple thermal colour palettes

• Multiple digital reticle options

• IP67 weather protection, subject to selected configuration

• Up to approximately eight hours operating time

• Listed 1200G impact resistance

• Wide operating-temperature range

• OEM, ODM, OBM, and software customization support

Product Specifications

• Brand: MH or YTYIN, confirm before publishing

• Model: MH-T675

• Product Series: MH-T Series

• Product Type: Thermal Imaging Monocular

• Alternative Description: Thermal Monocular Sight Scope

• Sensor Resolution Options: 384 × 288 or 640 × 512 Pixels

• Pixel Pitch: 12 μm

• Thermal Sensitivity: Confirm NETD Before Publishing

• Listed MRTD: 550 mK, subject to clarification

• Refresh Rate: Confirm Before Publishing

• Display Type: OLED

• Display Resolution: 1024 × 768 Pixels

• Objective Lens Options: 35 mm, 50 mm, or 75 mm

• Lens Aperture: F1.0

• Field of View: Approximately 5.9° × 4.79°, subject to lens confirmation

• Electronic Zoom: 1x, 2x, or 4x

• Laser Rangefinder: Optional

• Maximum Listed Ranging Distance: Approximately 1,300 m

• Wi-Fi: Supported

• Photo Recording: Supported

• Video Recording: Supported

• Digital Reticles: Supported

• Thermal Palettes: White Hot, Black Hot, Red Hot, False Colour, and Outline Mode

• Protection Rating: IP67, subject to selected configuration

• Alternative Protection Option: IP65

• Impact Resistance: Listed at 1200G, subject to verification

• Operating Temperature: Approximately -40°C to 55°C

• Listed Operating Time: Up to Approximately Eight Hours

• Housing Material: Confirm Before Publishing

• Dimensions: Approximately 255 × 116 × 102 mm

• Weight: Approximately 1.2 kg

• Battery Type: Confirm Before Publishing

• Battery Capacity: Confirm Before Publishing

• Charging Time: Confirm Before Publishing

• Internal Storage: Confirm Before Publishing

• Charging Interface: Confirm Before Publishing

• Warranty: One Year

• Customization: OEM, ODM, OBM, and Software Reengineering

• Country of Origin: Shaanxi, China

Thermal Sensor Options

The MH-T675 is offered with two thermal detector options.

384 × 288 Sensor

The 384 × 288 configuration may provide a more cost-effective option for general thermal observation and monitoring.

640 × 512 Sensor

The 640 × 512 configuration provides a higher native pixel count, which may support:

• Greater visible detail

• Improved subject separation

• Better image quality during digital zoom

• Clearer viewing of smaller heat sources

• More detailed long-distance observation

Each sensor version should have a separate SKU and price.

12 μm Pixel Pitch

The thermal detector is listed with a 12 μm pixel pitch.

A smaller pixel pitch can support compact lens systems and higher apparent magnification, although overall image quality also depends on:

• Sensor resolution

• Thermal sensitivity

• Lens quality

• Image processing

• Display resolution

• Environmental conditions

Lens Options

The MH-T675 may be configured with:

• 35 mm F1.0 lens

• 50 mm F1.0 lens

• 75 mm F1.0 lens

35 mm Lens

A 35 mm lens generally provides a wider field of view and may be suitable for closer-range scanning and broader-area observation.

50 mm Lens

A 50 mm lens provides a balance between field of view and observation distance.

75 mm Lens

A 75 mm lens generally provides a narrower field of view and increased apparent subject size for longer-distance observation.

Exact field-of-view and detection-distance specifications should be assigned to each lens separately.

Field of View

The listed field of view is approximately 5.9° × 4.79°.

This value likely applies to only one sensor and lens combination. Confirm the correct field of view for:

• 384 × 288 with 35 mm lens

• 384 × 288 with 50 mm lens

• 384 × 288 with 75 mm lens

• 640 × 512 with 35 mm lens

• 640 × 512 with 50 mm lens

• 640 × 512 with 75 mm lens

OLED Display

The internal OLED display provides a listed resolution of 1024 × 768 pixels.

Potential benefits include:

• High contrast

• Clear menu visibility

• Detailed thermal-image presentation

• Smooth viewing in low-light conditions

• Improved performance in cold environments

Confirm display brightness levels, diopter range, eye relief, and refresh rate before publishing.

Electronic Zoom

The device supports:

• 1x electronic zoom

• 2x electronic zoom

• 4x electronic zoom

Digital zoom enlarges the displayed image but does not increase the detector’s native resolution. Image clarity may decrease at higher zoom settings.

Optional Laser Rangefinder

An optional laser rangefinder provides a listed measuring distance of up to approximately 1,300 m.

Before publishing, confirm:

• Minimum ranging distance

• Maximum ranging distance

• Measurement accuracy

• Laser classification

• Measurement units

• Continuous ranging mode

• Angle measurement

• Weather limitations

• Whether the rangefinder is included or optional

The rangefinder version should be listed as a separate product variant.

Thermal Colour Palettes

The listed thermal display modes include:

• White Hot

• Black Hot

• Red Hot

• False Colour

• Outline or Stroke Mode

Different palettes can help users interpret thermal scenes under different conditions.

The exact names and number of available palettes should be verified from the final firmware.

Wi-Fi Image Transmission

Built-in Wi-Fi may allow the device to connect with a compatible smartphone or tablet.

Possible functions may include:

• Live image viewing

• Remote control

• Photo transfer

• Video transfer

• Settings adjustment

• Firmware updates

Before publishing, confirm:

• Mobile application name

• Android support

• iOS support

• Maximum connection range

• Whether internet access is required

• Number of simultaneous connections

Photo and Video Recording

The MH-T675 supports image and video recording.

Confirm:

• Photo resolution

• Video resolution

• Video frame rate

• File formats

• Audio recording

• Internal storage capacity

• Memory-card support

• Maximum recording duration

• USB file transfer

• Date and time stamping

Recording specifications should not be confused with the sensor or display resolution.

Reticle Options

The device is described as supporting multiple digital reticles.

Before publishing, confirm:

• Number of reticle patterns

• Available reticle colours

• Reticle position adjustment

• Saved profiles

• Measurement units

• Reticle on/off control

• Whether reticle functions are available on every firmware version

Only verified software functions should appear in the final listing.

Thermal Sensitivity

The supplied specification lists MRTD at 550 mK but does not provide a NETD figure.

Before publication, confirm:

• NETD value

• MRTD test conditions

• Lens used during testing

• Sensor operating mode

• Ambient temperature

• Image-processing settings

MRTD and NETD measure different aspects of thermal performance and should not be treated as interchangeable.

Protection Rating

The selected model is listed with IP67 protection, while IP65 is mentioned as an alternative.

An IP67-rated configuration may provide:

• Dust-tight enclosure protection

• Resistance to temporary water immersion under defined conditions

Before publishing, verify:

• Exact covered model

• Valid test documentation

• Port-cover requirements

• Maximum immersion depth

• Maximum immersion duration

• Battery-compartment sealing

• Warranty limitations

Impact Resistance

The product is listed with impact resistance up to 1200G.

This claim should only be published when supported by documented testing that identifies:

• Test method

• Impact direction

• Number of cycles

• Device configuration

• Lens option

• Pass criteria

• Warranty coverage

Battery and Runtime

The device provides a listed operating time of up to approximately eight hours.

Before publishing, confirm:

• Battery type

• Battery capacity

• Built-in or replaceable design

• Number of batteries

• Charging time

• Charging port

• External power support

• Low-temperature runtime

• Battery warranty

Actual runtime may vary according to Wi-Fi usage, video recording, laser ranging, display brightness, and ambient temperature.

Operating Temperature

The listed operating range is approximately -40°C to 55°C.

Before using this specification, verify:

• Battery performance at -40°C

• Display performance

• Startup time

• Storage-temperature range

• Condensation protection

• Recommended warm-up procedure

Dimensions and Weight

The listed physical specifications are:

• Dimensions: Approximately 255 × 116 × 102 mm

• Weight: Approximately 1.2 kg

Confirm whether the stated weight includes:

• Battery

• Laser rangefinder

• Lens cap

• Carrying strap

• Mounting components

• Protective accessories

Suitable Applications

Depending on the selected configuration, the MH-T675 may be suitable for:

• Wildlife observation

• Farm monitoring

• Search and rescue support

• Security patrols

• Property inspection

• Industrial maintenance

• Night-time outdoor observation

• Heat-source detection

• Building inspection

• Long-distance thermal monitoring

Actual performance depends on the sensor, lens, weather, target size, and thermal contrast.

Customization Options

Available customization may include:

• Sensor resolution

• Objective lens

• Laser rangefinder

• Waterproof rating

• Firmware

• Menu language

• Reticle design

• Image palettes

• Housing finish

• Packaging

• Brand logo

• Mobile application integration

Each customized version should receive an approved final technical specification sheet.

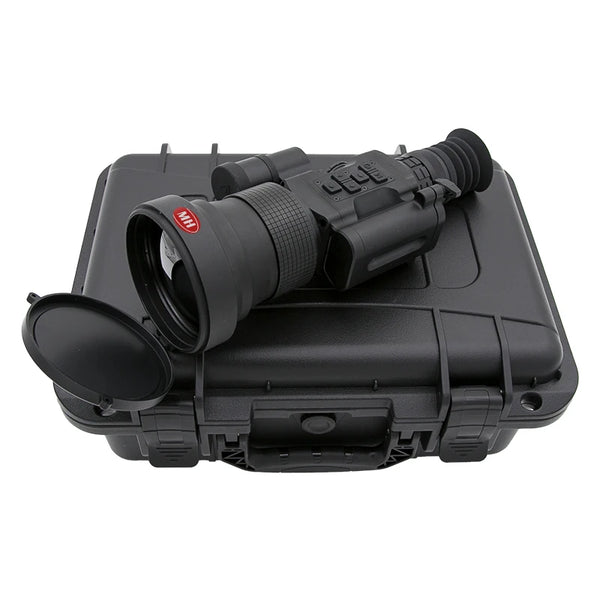

Package Contents

Confirm whether the standard safety case includes:

• MH-T675 thermal monocular

• Rechargeable battery

• Battery charger

• USB cable

• Protective lens cap

• Eye cup

• Carrying strap

• Cleaning cloth

• User manual

• Hard safety case

• Optional laser rangefinder module

Optional equipment should not be shown as included unless supplied with the selected configuration.

Warranty and Support

The listed warranty period is one year.

Before publishing, confirm coverage for:

• Thermal detector

• OLED display

• Battery

• Wi-Fi module

• Laser rangefinder

• Recording system

• Charging port

• Waterproof sealing

• Labour and shipping

• Warranty exclusions

Important Use Information

Avoid pointing the thermal detector directly at the sun, lasers, welding arcs, or other intense energy sources, as this may damage the sensor.

Use the device according to the manufacturer’s instructions and all applicable local laws and privacy requirements.

Keep the lens clean and dry, protect the device during transport, and inspect the housing, controls, battery, lens, and accessories before use.
