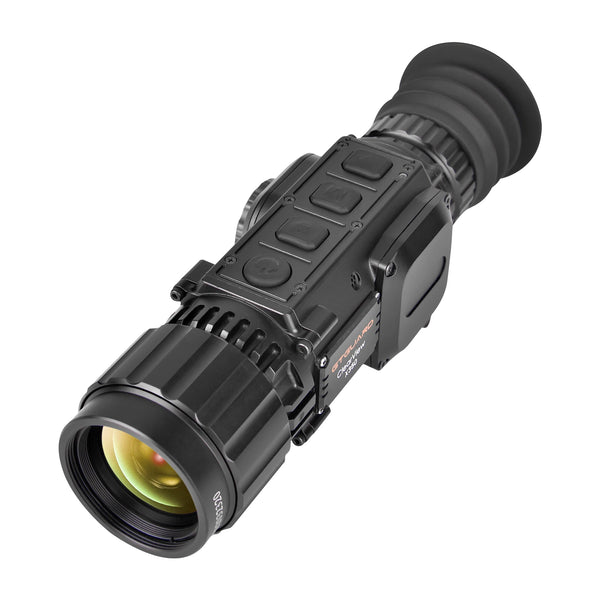

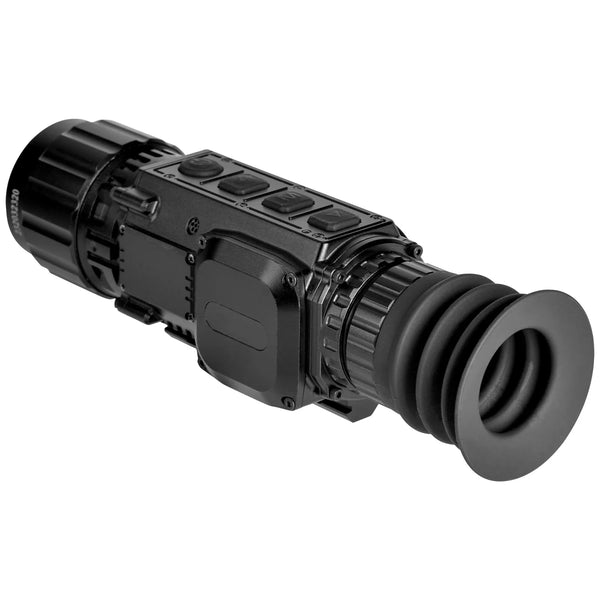

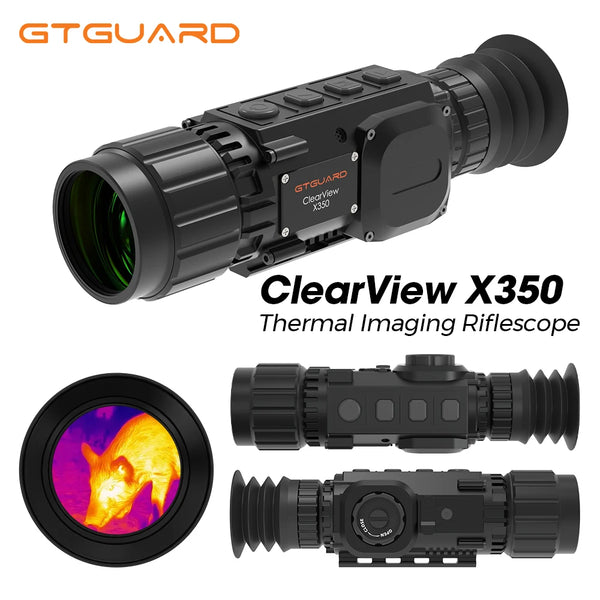

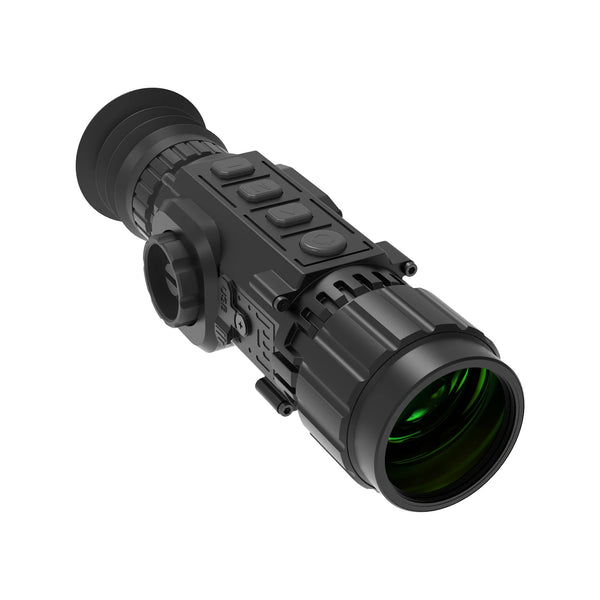

The ClearView X350 is a compact thermal imaging monocular designed for outdoor observation, property monitoring, wildlife viewing, equipment inspection, and general heat-source detection. It combines a 384 × 288 uncooled thermal detector with a 12 μm pixel pitch, 35 mm F1.0 objective lens, and a high-resolution 0.39-inch Micro-OLED display.
The device supports manual focusing, 2x base magnification, up to 4x digital enlargement, photo and video capture, Wi-Fi connectivity, internal 64GB storage, and multiple motion sensors. Its listed IP67 enclosure and rechargeable battery system support portable operation in demanding outdoor environments.
Branding should be verified before publication because the supplied data identifies both Ponbos and GTGUARD ClearView X350.
Key Features
- 384 × 288 uncooled thermal detector
- 12 μm pixel pitch
- NETD of 45 mK or lower
- 35 mm F1.0 objective lens
- Approximately 12.5° × 10° field of view
- 2x base magnification
- Up to 4x digital enlargement
- 0.39-inch Micro-OLED display
- 1024 × 768 display resolution
- Manual focusing
- Photo and video recording
- Built-in 64GB storage
- Wi-Fi connectivity
- USB Type-C charging and data transfer
- Gyroscope, accelerometer, and electronic compass
- Rechargeable battery system
- At least approximately four hours listed runtime
- IP67 environmental protection
- Approximately 550 g operating weight
Product Specifications
- Brand: Ponbos or GTGUARD, confirm before publishing
- Model: ClearView X350
- Product Type: Thermal Imaging Monocular
- Thermal Detector Type: Uncooled Microbolometer
- Thermal Resolution: 384 × 288 Pixels
- Pixel Pitch: 12 μm
- Spectral Response: Approximately 8–14 μm
- Thermal Sensitivity: NETD ≤45 mK
- Objective Lens: 35 mm
- Lens Aperture: F1.0
- Focus Method: Manual
- Listed Focus Range: Approximately 50 m to Infinity, subject to verification
- Field of View: Approximately 12.5° × 10°, with listed ±5% tolerance
- Base Magnification: 2x
- Digital Zoom: 1x–4x
- Display Type: Micro-OLED
- Display Size: 0.39 Inches
- Display Resolution: 1024 × 768 Pixels
- Eyepiece Diameter: Approximately 28 mm
- Eye Relief: Approximately 38 mm
- Diopter Adjustment: Approximately -5 to +3
- Photo Capture: Supported
- Video Recording: Supported
- Recording Resolution: Confirm Before Publishing
- Internal Storage: 64GB
- Media Management: Browse, Delete, and Export
- Wi-Fi: Supported
- Official Application: Confirm Before Publishing
- USB Interface: USB Type-C
- USB Functions: Charging and Computer Data Transfer
- Motion Sensors: Three-Axis Gyroscope, Three-Axis Accelerometer, and Three-Axis Electronic Compass
- Battery Type: Four Rechargeable 16340 or RCR123A Lithium-Ion Batteries, subject to confirmation
- Battery Voltage: 3.7 V per Cell
- Listed Battery Capacity: 900mAh per Cell
- Battery Life: At Least Approximately Four Hours
- Battery Included: Yes
- Charger Included: Listed as Included
- Protection Rating: IP67
- Operating Temperature: Approximately -40°C to 55°C
- Storage Temperature: Approximately -55°C to 70°C
- Mounting Interface: Picatinny-Style Rail, subject to exact compatibility verification
- Weight: Approximately 550 g Including Batteries
- Dimensions: Approximately 190 × 52 × 70 mm
- Package Weight: Approximately 1,280 g
- Package Dimensions: Approximately 245 × 225 × 98 mm
- Certification: CE, subject to documentation
- Warranty: Confirm Before Publishing
- Country of Origin: China
Brand and Model Clarification
The supplied data contains two different brand references:
- Ponbos
- GTGUARD

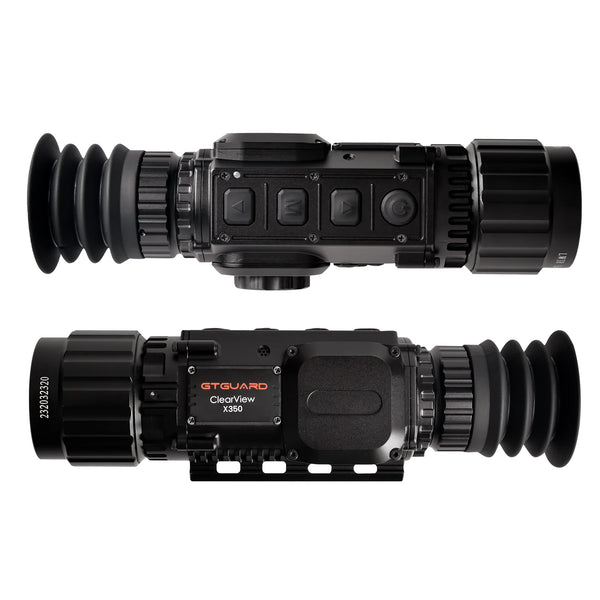

The product name is listed as ClearView X350.
Before publication, confirm which brand appears on:
- Product housing
- Packaging
- User manual
- Certification documents
- Warranty card
- Mobile application
- Product invoice
Use one verified brand consistently across the product page and Merchant Center feed.
384 × 288 Thermal Detector
The ClearView X350 uses a 384 × 288 uncooled thermal detector with a 12 μm pixel pitch.
This configuration may support:
- Detailed heat-signature presentation
- Outdoor observation without visible light
- Separation of nearby warm objects
- Improved image usability during digital enlargement
- Property and equipment monitoring
- Wildlife and livestock observation
Actual performance depends on thermal sensitivity, lens quality, focusing, target size, temperature contrast, humidity, weather, and image-processing settings.
Uncooled Microbolometer
The detector is identified as an uncooled microbolometer.
Uncooled thermal detectors generally offer:
- Fast startup
- Compact construction
- Lower power consumption
- Reduced mechanical complexity
- Portable operation
Confirm the detector material, such as VOx or amorphous silicon, before adding it to the final technical specification.
Thermal Sensitivity
The listed NETD is 45 mK or lower.
A lower NETD value generally indicates improved ability to distinguish small temperature differences.
This may support clearer thermal imaging in:
- Fog
- High humidity
- Light rain
- Low-contrast environments
- Uniform backgrounds
- Changing outdoor temperatures
Before publication, confirm the test temperature, lens aperture, processing mode, and laboratory method.
35 mm F1.0 Objective Lens
The device includes a 35 mm F1.0 thermal objective lens.
This lens may provide a balance between:
- Field of view
- Subject detail
- Medium- and long-distance observation
- Thermal-image brightness
- Overall product size
Before publication, confirm:
- Lens material
- Protective coating
- Minimum focusing distance
- Focus-ring range

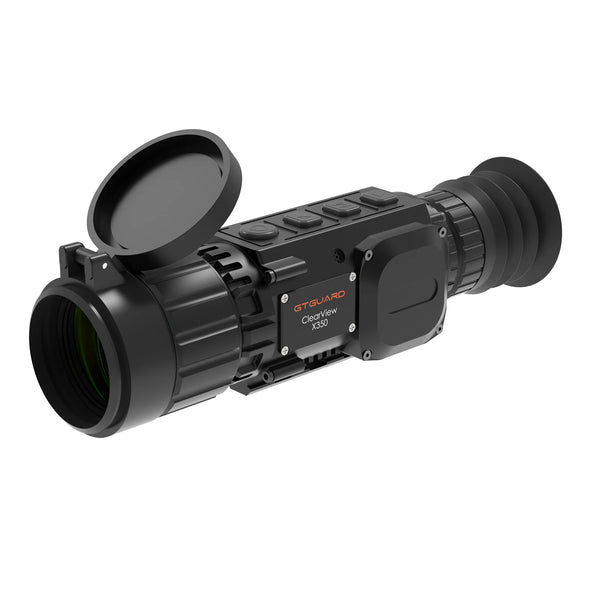

- Lens-cap inclusion
- Calibration conditions
Focus-Range Conflict
The supplied focus range is approximately 50 m to infinity.
This is unusually long for the minimum focusing distance of a handheld thermal device.
Before publication, verify whether the correct value is:
- 0.5 m
- 5 m
- 50 m
- Another distance
Do not publish the 50 m minimum until confirmed.
Field of View
The listed field of view is approximately:
- Horizontal: 12.5°
- Vertical: 10°
A tolerance of approximately ±5% is also supplied.
The final specification should confirm whether the field-of-view value applies to the 384 × 288 detector and 35 mm lens combination.
Magnification and Digital Zoom
The device has a listed base magnification of 2x and digital enlargement from 1x to 4x.
Before publication, confirm whether this produces:
- 2x native viewing
- 4x total viewing
- 8x maximum effective enlargement
- Another manufacturer-defined range
Digital zoom enlarges the displayed thermal image but does not increase native detector resolution. Fine detail may decrease at higher enlargement levels.
0.39-Inch Micro-OLED Display
The X350 includes a 0.39-inch Micro-OLED display with a listed resolution of 1024 × 768 pixels.
This may provide:
- High image contrast
- Clear thermal palette presentation
- Deep black levels
- Compact eyepiece construction
- Detailed menu and recording playback
Display resolution should be listed separately from the 384 × 288 thermal detector resolution.
Eyepiece and Diopter Adjustment
The eyepiece specifications include:
- Approximately 28 mm eyepiece diameter
- Approximately 38 mm eye relief
- Diopter adjustment from approximately -5 to +3
These controls may help users obtain a clearer screen image according to their eyesight.
Confirm whether the listed eye relief is measured from the final lens surface or rubber eye cup.
Photo and Video Recording
The ClearView X350 supports photo and video capture.
Before publication, confirm:
- Saved photo resolution
- Video resolution
- Recording frame rate
- File formats
- Audio recording
- Maximum recording duration
- Date and time stamping
- Thermal metadata
- Playback functions
64GB Internal Storage
The built-in 64GB memory supports extended media storage.
The device also supports:
- Browsing saved files
- Deleting files
- Exporting files to a computer
Before publication, confirm:
- Available user capacity
- Estimated photo capacity
- Estimated video duration
- File-overwrite behaviour
- Storage formatting
- Memory-card support
Wi-Fi Connectivity
Wi-Fi connectivity may support connection to a compatible smartphone or tablet.
Possible functions may include:
- Live thermal viewing
- Remote recording
- Photo transfer
- Video transfer
- Device configuration
- Firmware updates
Before publication, confirm:
- Official application name
- Android support
- iOS support
- Connection range
- Account requirements
- Required permissions
- Firmware compatibility
USB Type-C Connectivity
The USB Type-C interface is listed for:
- Battery charging
- Computer data transfer
Before publication, confirm:
- Charging voltage
- Charging current
- Full charging duration
- Operation while charging
- Power-bank compatibility
- Included cable specification
- Data-transfer speed
Motion Sensors
The device includes:
- Three-axis gyroscope
- Three-axis accelerometer
- Three-axis electronic compass
These sensors may support:
- Orientation information
- Direction display
- Motion-based features
- Image stabilization
- Automatic screen functions
The exact functions enabled by these sensors should be confirmed in the official manual.
Battery-System Clarification
The battery specification appears as “6340,” which is likely a typographical error.
The intended battery type may be:
- 16340 rechargeable lithium-ion
- RCR123A rechargeable lithium-ion
The device is listed as using four 3.7V 900mAh cells.
Before publication, confirm:
- Exact battery designation
- Cell chemistry
- Required protection circuit
- Battery orientation
- Whether all four batteries are included
- Charger compatibility
- Replacement battery requirements
Do not use disposable CR123A batteries in a charger unless the manufacturer explicitly approves them.
Battery Runtime
The device is listed with at least approximately four hours of battery life.
Actual runtime may vary according to:
- Display brightness
- Wi-Fi usage
- Recording activity
- Sensor operation
- Ambient temperature
- Battery age and capacity
The final listing should state the runtime test conditions.
IP67 Environmental Protection
The listed IP67 rating may provide:
- Dust-tight enclosure protection
- Resistance to temporary water immersion under defined laboratory conditions
Before publication, verify:
- Exact tested model
- Immersion depth
- Test duration
- Required port-cover position
- Battery-compartment sealing
- Warranty coverage
IP67 does not mean the device is intended for continuous underwater use.
Environmental Temperature Ranges
The listed ranges are:
- Operating Temperature: Approximately -40°C to 55°C
- Storage Temperature: Approximately -55°C to 70°C
These are demanding environmental claims and should be supported by test documentation.
Also confirm:
- Charging-temperature range
- Humidity tolerance
- Condensation protection
- Cold-weather battery runtime
- Display startup behaviour
Physical Dimensions and Weight
The device is listed at approximately:
- Dimensions: 190 × 52 × 70 mm
- Weight: 550 g including batteries
The package is listed at approximately:
- Package Size: 245 × 225 × 98 mm
- Package Weight: 1,280 g
Confirm whether device dimensions include the eyecup, lens cap, and mounting bracket.
Mounting Interface
A Picatinny-style rail mounting bracket is listed.
Before publication, confirm:
- Rail standard
- Rail width
- Mount length
- Mounting-hole spacing
- Centre height
- Quick-release or fixed attachment
- Included hardware
- Approved equipment compatibility
Avoid universal compatibility claims unless supported by exact dimensional testing.
Suitable Applications
The ClearView X350 may be suitable for:
- Wildlife observation
- Farm and livestock monitoring
- Property inspection
- Outdoor exploration
- Search-support activities
- Night-time observation
- Security monitoring
- Equipment inspection
- General heat-source detection
- Remote-area thermal surveying
Actual performance depends on lens focus, target size, thermal contrast, weather, distance, and device settings.

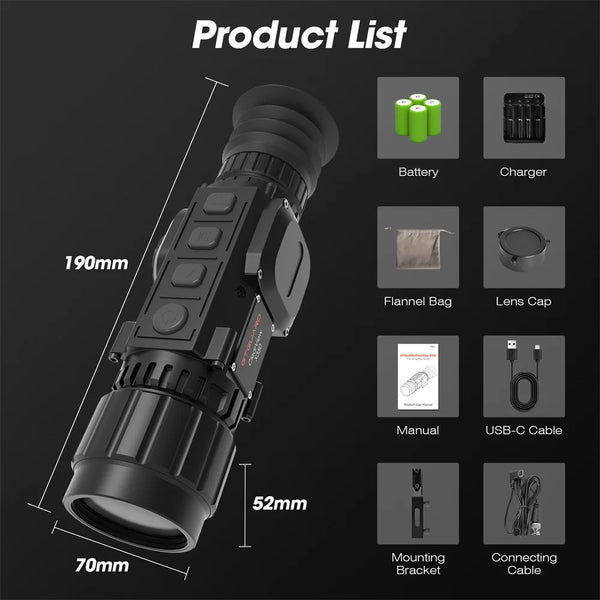

Package Contents
The listed package includes:
- ClearView X350 main unit
- Rechargeable batteries
- Battery charger
- Velvet storage pouch
- USB connecting cable
- Mounting bracket
Before publication, confirm whether the package also includes:
- Protective lens cap
- Rubber eye cup
- Carrying case
- Cleaning cloth
- User manual
- Warranty card
- Certification documents
Only verified accessories should appear in the final listing.
Certification and Warranty
The product is listed with CE certification.
Before publication, verify:
- Certificate number
- Testing laboratory
- Exact model coverage
- Final brand shown on the certificate
- Applicable directives
- Document validity
The warranty period is not supplied and should be confirmed before publication.
Important Use Information
Avoid pointing the thermal detector directly at the sun, lasers, welding arcs, or other intense energy sources, as these may permanently damage the sensor.
Use only manufacturer-approved rechargeable batteries, chargers, cables, mounting parts, and accessories. Keep all protective covers properly closed during outdoor operation.
Follow all applicable privacy, observation, equipment, and local-use regulations.
