    Four Wheel Battery Electric...

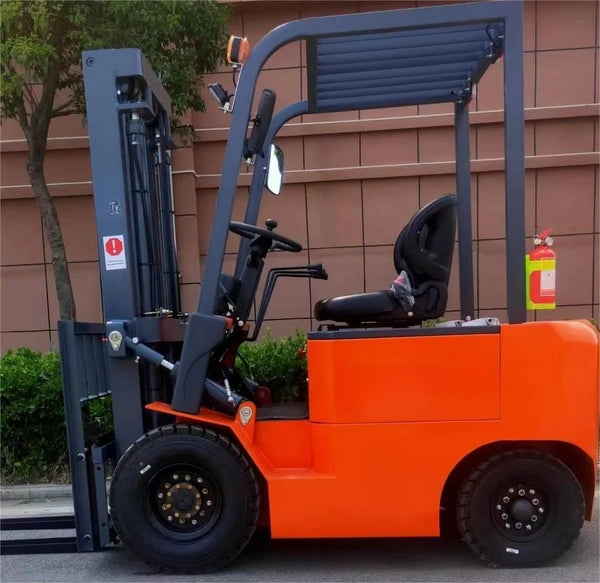

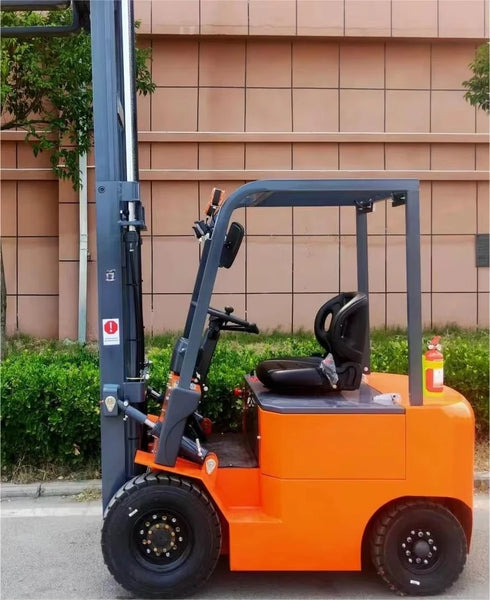

    Improve pallet handling, warehouse stacking, loading, and industrial material transport with the YG CPD-30 Electric Counterbalance Forklift. Designed for seated operation, the reference model provides a rated lifting capacity of 3,000 kg and a standard lifting height of approximately 3,000 mm.

    Its 48V/240Ah lead-acid battery system, 7,500W travel motor, USA CURTIS electric controller, pneumatic tyres, and side-shift function support warehouse, manufacturing, retail, construction-material, and suitable outdoor paved applications.

    The supplier also offers CPD-15, CPD-20, and CPD-25 models. Each capacity should be listed separately with its correct motor, weight, dimensions, battery configuration, mast, and final price.

    Key Features

    • 3,000 kg rated lifting capacity

    • 48V/240Ah lead-acid battery

    • 7,500W electric travel motor

    • USA CURTIS controller

    • Seated operator configuration

    • Front-wheel-drive layout

    • Two-stage or optional three-stage mast

    • Standard 3,000 mm lift height

    • Optional lift heights up to 6,000 mm

    • Side-shift function

    • Pneumatic industrial tyres

    • Approximately 4–6 hours charging time

    • Approximately 6–8 hours working time

    • Custom colour, mast, fork, battery, and logo options

    • 12-month main-component warranty

    Product Specifications

    • Brand: YG

    • Model: CPD-30

    • Product Type: Electric Counterbalance Forklift

    • Condition: New

    • Operating Mode: Seated Operation

    • Rated Lifting Capacity: 3,000 kg

    • Available Model Range: 1,500–3,000 kg

    • Power Source: Rechargeable Battery

    • Battery Type: Lead-Acid

    • Battery Voltage: 48V

    • Battery Capacity: 240Ah

    • Nominal Stored Energy: Approximately 11.52kWh

    • Electric Controller: USA CURTIS

    • Travel Motor Power: 7,500W

    • Drive Type: Front-Wheel Drive

    • Standard Mast: Two-Stage Mast

    • Optional Mast: Three-Stage Mast

    • Standard Lift Height: Approximately 3,000 mm

    • Optional Lift Height: Approximately 3,000–6,000 mm

    • Load Centre: 500 mm

    • Side Shifter: Electric Side Shifter, subject to mechanism confirmation

    • Listed Fork Length: Approximately 1,070 mm

    • Alternative Fork Length: Approximately 1,220 mm

    • Listed Fork Width: Confirm as 125 mm or 150 mm

    • Listed Fork Thickness: Approximately 50 mm

    • Tyre Type: Pneumatic

    • Wheelbase: Approximately 1,335 mm

    • Turning Radius: Approximately 2,240 mm

    • Charging Time: Approximately 4–6 Hours, subject to charger confirmation

    • Working Time: Approximately 6–8 Hours

    • Overall Dimensions Without Forks: Approximately 2,700 × 1,200 × 2,200 mm

    • Vehicle Weight: Approximately 3,700 kg

    • Terrain Suitability: Indoor Floors and Suitable Outdoor Pavement

    • Colour: Customizable

    • Packaging: Standard Export Packaging

    • Warranty: 12 Months for Listed Main Components

    • Country of Origin: China

    Three-Ton Lifting Capacity

    The CPD-30 is designed to lift loads up to 3,000 kg at a listed load centre of 500 mm.

    Actual safe capacity may be reduced by:

    • Greater load-centre distance

    • Higher lift positions

    • Longer forks

    • Side-shift installation

    • Optional attachments

    • Unevenly distributed loads

    • Slopes or unsuitable surfaces

    The final capacity plate should show the approved rating for the selected mast, forks, battery, and attachments.

    48V Lead-Acid Battery System

    The reference model uses a 48V/240Ah lead-acid battery, providing approximately 11.52kWh of nominal stored energy.

    Before publication, confirm:

    • Battery brand

    • Battery construction

    • Usable capacity

    • Charger input voltage

    • Charger output voltage and current

    • Full charging time

    • Recommended charging schedule

    • Watering requirements

    • Equalization-charging requirements

    • Ventilation requirements

    • Battery service life

    • Battery warranty

    Lithium-ion battery configurations should be listed separately with their own charger, runtime, weight, and price.

    USA CURTIS Controller

    The listed USA CURTIS electric controller is designed to manage travel-motor operation and speed control.

    Confirm the exact controller model and available functions, which may include:

    • Smooth acceleration

    • Direction control

    • Speed limitation

    • Hill-start assistance

    • Controlled descent

    • Fault-code display

    • Motor protection

    • Battery-level management

    Only verified functions should appear in the final listing.

    Charging and Operating Time

    The supplier lists:

    • Charging Time: Approximately 4–6 hours

    • Operating Time: Approximately 6–8 hours

    Actual results depend on:

    • Battery condition

    • Charger power

    • Load weight

    • Lift frequency

    • Travel distance

    • Surface condition

    • Ambient temperature

    • Operator behaviour

    A 4–6 hour full charge should be confirmed for the exact 48V/240Ah lead-acid battery and charger.

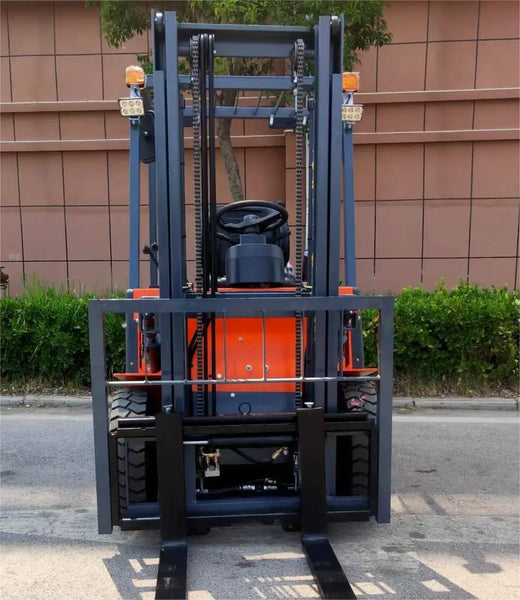

    Mast Options

    Two-Stage Mast

    The standard two-stage mast provides a listed lifting height of approximately 3,000 mm.

    Three-Stage Mast

    An optional three-stage mast may support lift heights up to approximately 6,000 mm while maintaining a lower collapsed profile.

    For each mast, confirm:

    • Lowered mast height

    • Free-lift height

    • Fully raised height

    • Lift and lowering speeds

    • Forward and rear tilt angles

    • Residual capacity at full height

    Side-Shift Function

    The side shifter allows the forks to move horizontally for more accurate pallet positioning without repeatedly moving the forklift.

    It may improve efficiency during:

    • Rack placement

    • Truck loading

    • Pallet alignment

    • Container handling

    • Production-line supply

    Confirm whether the system is electrically or hydraulically actuated and state the side-shift range.

    Fork Configuration

    The supplied information contains conflicting fork measurements:

    • Listed fork length: 1,070 mm

    • Alternative fork specification: 1,220 × 125 × 50 mm

    • Listed fork width: 150 mm

    Each fork option should clearly state:

    • Length

    • Width

    • Thickness

    • Adjustable spread

    • Load centre

    • Revised capacity

    Pneumatic Tyres

    Pneumatic tyres may provide improved ride comfort and traction on smooth outdoor pavement.

    They may be suitable for:

    • Warehouse entrances

    • Loading bays

    • Industrial yards

    • Paved construction-material facilities

    • Manufacturing areas

    The forklift should not be advertised for severe off-road use unless ground clearance, tyres, axle, braking, and stability are verified.

    Available Models

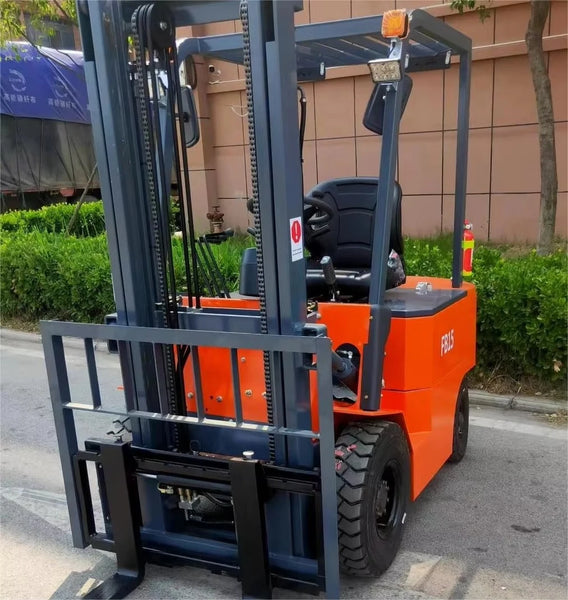

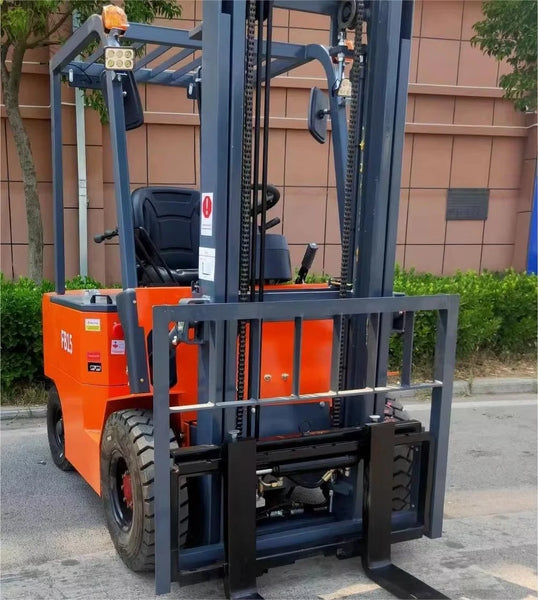

    CPD-15

    • Capacity: 1,500 kg

    • Lift height: approximately 3,000 mm

    • Travel motor: approximately 3,000W

    • Dimensions without forks: approximately 2,300 × 1,200 × 2,200 mm

    • Vehicle weight: approximately 2,200 kg

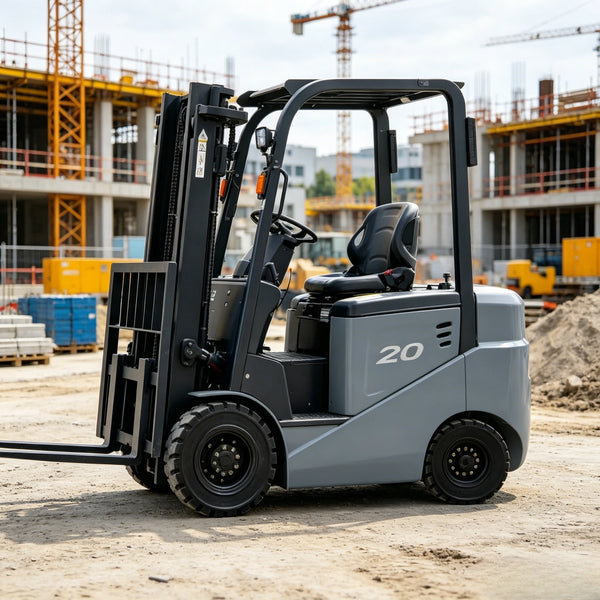

    CPD-20

    • Capacity: 2,000 kg

    • Lift height: approximately 3,000 mm

    • Travel motor: approximately 4,000W

    • Dimensions without forks: approximately 2,300 × 1,200 × 2,200 mm

    • Vehicle weight: approximately 2,700 kg

    CPD-25

    • Capacity: 2,500 kg

    • Lift height: approximately 3,000 mm

    • Travel motor: approximately 5,500W

    • Dimensions without forks: approximately 2,500 × 1,200 × 2,200 mm

    • Vehicle weight: approximately 3,200 kg

    CPD-30

    • Capacity: 3,000 kg

    • Lift height: approximately 3,000 mm

    • Travel motor: approximately 7,500W

    • Dimensions without forks: approximately 2,700 × 1,200 × 2,200 mm

    • Vehicle weight: approximately 3,700 kg

    Each model should have a separate product listing or clearly selectable variant.

    Suitable Applications

    The YG CPD-30 may be suitable for:

    • Warehouses

    • Manufacturing plants

    • Building-material stores

    • Machinery-repair facilities

    • Farms

    • Retail distribution

    • Food and beverage operations

    • Construction-material handling

    • Energy and mining support facilities

    • Loading docks

    • Outdoor paved industrial yards

    Special food-grade, cold-storage, hazardous, or rough-terrain environments may require additional equipment.

    Customization Options

    Available customization may include:

    • Lead-acid or lithium battery

    • Battery capacity

    • Charger specification

    • Two-stage or three-stage mast

    • Lift height

    • Fork dimensions

    • Side shifter

    • Carton clamp

    • Solid or pneumatic tyres

    • Body colour

    • Company logo

    • Operator cabin

    • Warning lights and alarms

    Each customized machine should receive a final approved technical sheet and accurate price.

    Warranty and Support

    The supplier lists a 12-month warranty for:

    • Motor

    • Controller

    • Battery

    • Hydraulic system

    Confirm operating-hour limits, parts coverage, labour terms, service location, maintenance requirements, and exclusions before publishing.

    Important Safety Information

    Only trained and authorized operators should use the forklift. Never exceed the capacity stated on the final data plate.

    Keep loads low while travelling, avoid sudden turns, and operate only on approved surfaces and slopes.

    Inspect the battery, forks, mast, chains, tyres, brakes, steering, hydraulics, lights, and warning devices before every shift.
