    （Factory Direct Sale）Outdoo...

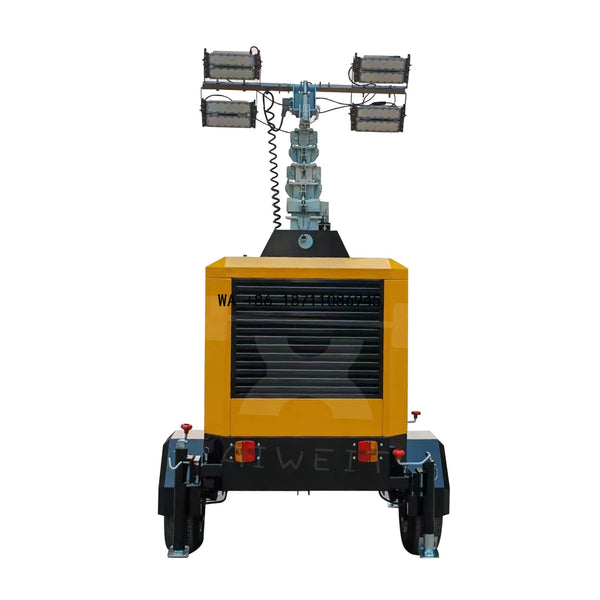

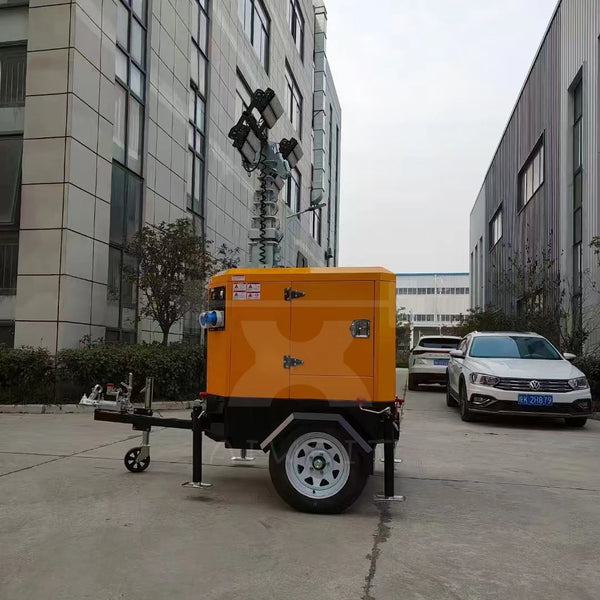

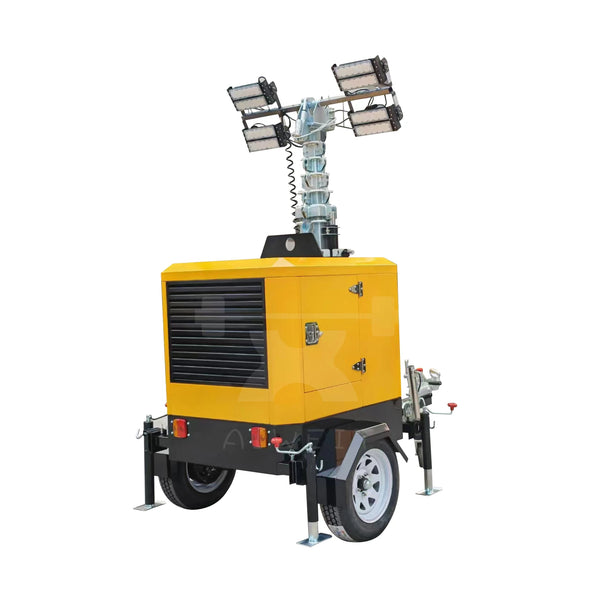

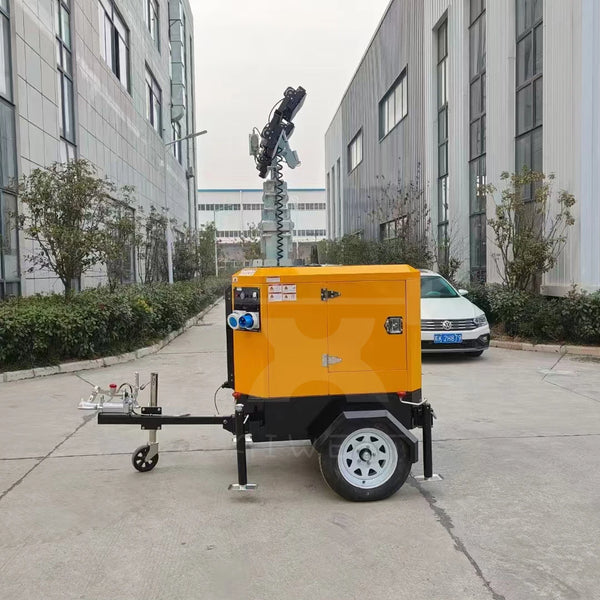

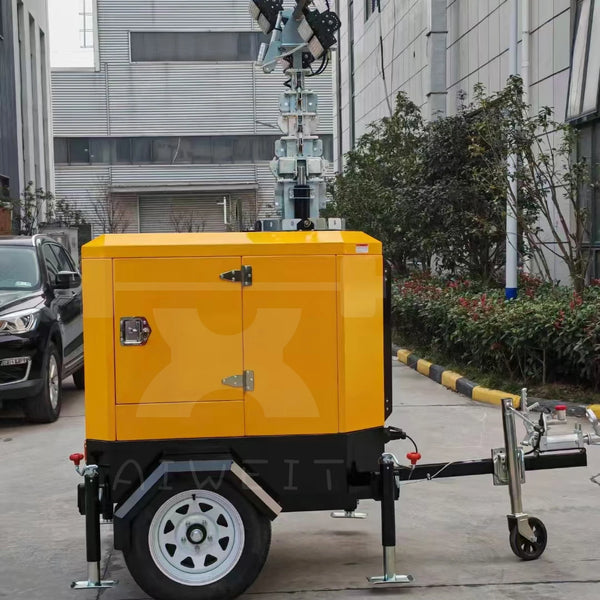

    Illuminate construction sites, outdoor events, emergency areas, farms, camps, and remote work locations with the ByaPower Trailer-Mounted Mobile Light Tower. Designed for portable high-area lighting, this system combines a 9-metre adjustable mast, a large-capacity battery, energy-efficient LED lighting, and a road-compatible trailer platform.

    The 360-degree lighting arrangement helps distribute illumination across a wide operating area. Solar and external power configurations may be available, while the MPPT controller supports efficient solar-energy management in compatible models.

    The mast can be raised using a manual winch, electric winch, or hydraulic lifting system depending on the selected configuration. US, Australian, and European trailer-standard options are available for different markets.

    Key Features

    • Trailer-mounted mobile lighting tower

    • 9-metre extendable mast

    • 360-degree area illumination

    • High-output LED lighting system

    • Up to 110,000 lumens, subject to confirmation

    • Large 38.4 kWh battery capacity

    • MPPT solar charge controller

    • Solar and external power configurations

    • Manual, electric, or hydraulic mast lifting

    • Rotating lighting assembly

    • US, Australian, and European trailer options

    • 15-inch trailer tyres

    • Custom dimensions and configurations available

    • Suitable for temperatures from -20°C to 50°C

    • Designed for remote and outdoor operations

    Product Specifications

    • Brand: ByaPower

    • Product Type: Trailer-Mounted Mobile Light Tower

    • Model: Confirm Before Publishing

    • Light Source: LED, subject to confirmation

    • Beam Coverage: 360 Degrees

    • Maximum Luminous Flux: Approximately 110,000 Lumens

    • Luminous Efficiency: Approximately 115 lm/W

    • Colour Rendering Index: Ra 80

    • Mast Height: 9 Metres

    • Mast Lifting Options: Manual Winch, Electric Winch, or Hydraulic System

    • Rotation: Yes

    • Battery Capacity: 38,400 Wh

    • Battery Type: Confirm Before Publishing

    • Power Supply: Solar, DC, or External AC, depending on configuration

    • Input Voltage Options: AC 110 V or 220 V

    • Solar Controller: MPPT

    • Trailer Standards: US, AU, or EU

    • Tyre Size: 15 Inches

    • Maximum Payload: 300 kg, subject to confirmation

    • Operating Temperature: -20°C to 50°C

    • Product Size: Customizable

    • Package Dimensions: Approximately 415 × 225 × 280 cm

    • Gross Shipping Weight: Approximately 1100 kg

    • Warranty: Confirm as 1 Year or 3 Years

    • Country of Origin: Zhejiang, China

    Lighting Performance

    The elevated mast and rotating lighting assembly help provide broad illumination for large outdoor areas. The stated 360-degree beam pattern can support activities where lighting is required in multiple directions.

    Suitable locations may include:

    • Construction projects

    • Road maintenance areas

    • Outdoor events

    • Emergency response sites

    • Agricultural properties

    • Mining and industrial facilities

    • Camps and temporary accommodation

    • Remote work zones

    • Security and inspection areas

    • Disaster-relief operations

    Solar and Battery System

    The high-capacity battery stores electrical energy for lighting when grid power is unavailable. In solar-equipped configurations, the MPPT controller helps regulate energy received from compatible solar panels.

    Actual operating time depends on:

    • Total lamp wattage

    • Number of lights in use

    • Battery condition

    • Solar charging conditions

    • Weather and temperature

    • Brightness setting

    • Additional connected electrical loads

    The exact solar-panel wattage, charging duration, and lighting runtime should be confirmed before publishing.

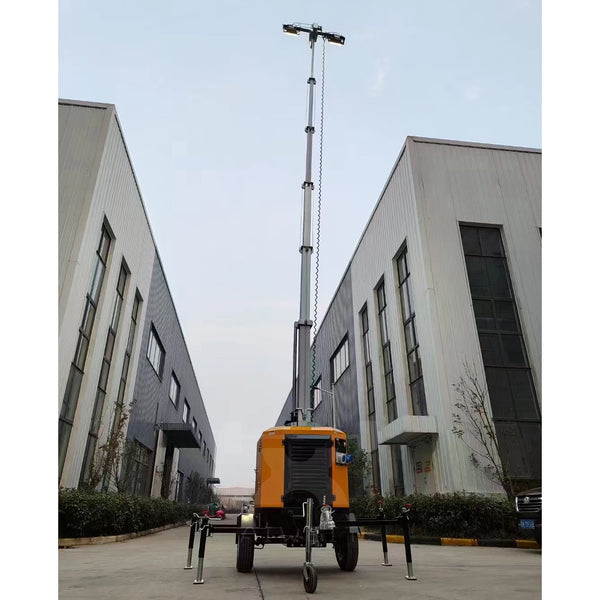

    Adjustable 9-Metre Mast

    The mast can be raised to provide elevated lighting over a wide area. Depending on the selected configuration, it may use:

    • Manual winch lifting

    • Electric winch lifting

    • Hydraulic lifting

    The mast must be fully stabilised before extension. Do not raise it during strong winds or on unstable ground.

    Trailer Configuration

    The mobile trailer platform allows the lighting tower to be moved between work areas. Regional trailer configurations may be supplied according to US, Australian, or European standards.

    Confirm the following before road use:

    • Trailer certification

    • Braking system

    • Lighting and reflectors

    • Towing connection

    • Maximum towing speed

    • Gross vehicle weight

    • Local registration requirements

    Optional Customisation

    Available custom options may include:

    • Trailer dimensions

    • Lamp quantity and wattage

    • Solar-panel capacity

    • Battery capacity

    • Mast lifting system

    • Trailer standard

    • Input voltage

    • Branding and colour

    • Control and monitoring system

    Only features included in the selected configuration should appear in the final product listing.

    Important Safety Information

    Deploy the trailer on firm and level ground. Engage all stabilisers before raising the mast, and keep the equipment away from overhead power lines.

    Do not operate or extend the mast in severe weather or high winds. Electrical installation, charging connections, towing preparation, and maintenance should be completed according to the manufacturer’s instructions and applicable local regulations.
