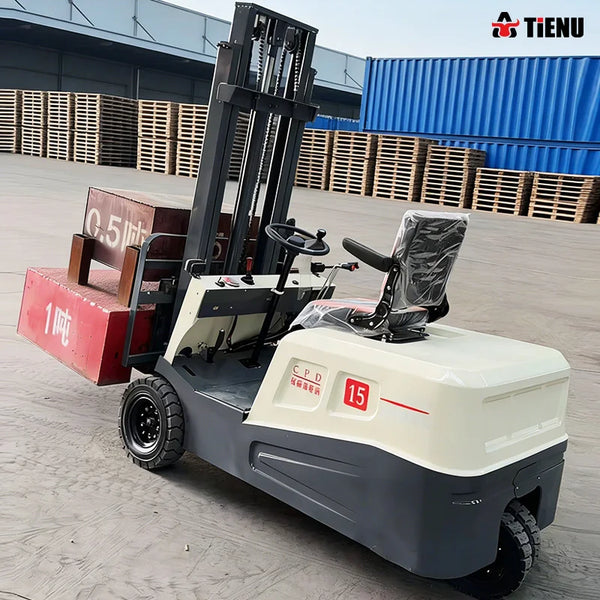

Improve pallet movement, warehouse stacking, loading, and material transport with the TN-1.5E Three-Wheel Electric Forklift. Designed for seated operation, this compact forklift provides a rated lifting capacity of 1,500 kg and a standard lifting height of approximately 3,000 mm.
Its three-point support design, low centre of gravity, hydraulic power steering, and compact body help improve manoeuvrability in warehouses, workshops, retail storage areas, and other locations where space is limited.
The electric power system supports lower operating noise and eliminates direct exhaust emissions at the point of use. Final battery chemistry, tyre specification, fork dimensions, mast details, and outdoor-terrain capability should be confirmed before publication.
Key Features
-
1,500 kg rated lifting capacity
-
Three-wheel electric forklift design
-
Seated operator position
-
Approximately 3,000 mm lifting height
-
60V electric power system
-
3,000W brushless AC travel motor
-
Hydraulic power steering
-
Reinforced steel body and forks
-
Low-centre-of-gravity design
-
Approximately four hours of continuous operation
-
Six- to eight-hour charging time
-
Headlights and signal lights
-
Electric horn
-
Suitable for narrow aisles and compact workspaces
-
Custom colour and battery options
-
CE certification, subject to verification
Product Specifications
-
Brand: Confirm Before Publishing
-
Model: TN-1.5E
-
Product Type: Three-Wheel Electric Forklift
-
Condition: New
-
Operating Mode: Seated Operation
-
Rated Lifting Capacity: 1,500 kg
-
Standard Lifting Height: Approximately 3,000 mm
-
Overall Dimensions Without Forks: Approximately 2,150 × 1,200 × 2,150 mm
-
Overall Length With Forks: Approximately 3,220 mm
-
Vehicle Weight: Approximately 2,100 kg
-
Body Construction: Thickened One-Piece Stamped Steel Body
-
Travel Motor: 3,000W Brushless AC Motor
-
System Voltage: 60V
-
Battery Type: Dry Battery, subject to confirmation
-
Battery Configuration: Five Battery Units
-
Listed Battery Capacity: 60V / 70Ah
-
Battery Chemistry: Confirm Before Publishing
-
Charging Time: Approximately 6–8 Hours
-
Continuous Working Time: Approximately 4 Hours
-
Steering System: Hydraulic Power Steering
-
Maximum Listed Gradeability: Approximately 12°
-
Lighting: Headlights, Turn Signals, Brake Lights, and Instrument Lights
-
Horn: Electric Horn
-
Terrain Compatibility: Indoor Flooring and Suitable Outdoor Surfaces
-
Colour: Customizable
-
Certification: CE, subject to valid documentation
-
Warranty: Confirm Before Publishing
-
Country of Origin: China
1.5-Ton Lifting Capacity
The TN-1.5E is designed to lift loads up to 1,500 kg under the manufacturer’s specified load-centre and mast conditions.
Actual lifting capacity may be reduced by:
-
Increased load-centre distance
-
Higher lift positions
-
Extended forks
-
Optional attachments
-
Unevenly distributed loads
-
Sloped or unstable surfaces
-
Non-standard mast configurations
The final forklift data plate should clearly state the approved capacity for the supplied configuration.
Three-Wheel Design
The three-wheel or three-point support layout is designed to provide compact turning performance for indoor material handling.
This design may be useful in:
-
Narrow warehouse aisles
-
Retail storage rooms
-
Manufacturing work areas
-
Loading zones
-
Small distribution centres
-
Workshops
-
Indoor logistics facilities
The exact turning radius should be confirmed before publishing.
Electric Power System
The forklift uses a 60V electrical system with a listed 3,000W brushless AC travel motor.
The detailed specifications describe a 60V / 70Ah dry-battery system. Before publication, confirm:
-
Battery chemistry
-
Number of battery modules
-
Nominal voltage
-
Rated capacity
-
Stored energy in kWh
-
Charger input requirements
-
Charger output voltage and current
-
Battery cycle life
-
Battery warranty
-
Battery-management protections
Do not advertise a lithium battery unless the selected configuration actually includes lithium-ion cells.
Working and Charging Time
The listed operating time is approximately four hours, with a charging time of approximately six to eight hours.
Actual working time depends on:
-
Load weight
-
Travel distance
-
Lifting frequency
-
Lift height
-
Floor condition
-
Driving speed
-
Ambient temperature
-
Battery age and condition
-
Operator behaviour
Publish runtime as an approximate value rather than a guaranteed duration.
Hydraulic Lifting System
The hydraulic lifting system is designed to provide controlled raising and lowering of pallets and goods.
Before publishing, confirm:
-
Mast type
-
Number of lift stages
-
Free-lift height
-
Lowered mast height
-
Raised mast height
-
Fork lowering speed
-
Hydraulic-pump power
-
Emergency lowering function
Hydraulic Power Steering
Hydraulic power steering helps reduce operator effort and improve manoeuvrability during repeated warehouse movements.
The final listing should also specify:
-
Steering-wheel arrangement
-
Turning radius
-
Steering angle
-
Rear-wheel steering configuration
-
Emergency steering procedure
Reinforced Body Construction
The forklift is described as using a thickened one-piece stamped body with reinforced structural components.
This construction is intended to support:
-
Stable load handling
-
Daily warehouse use
-
Reduced body flex
-
Improved durability
-
Better protection of internal components
Exact steel grade and frame thickness should only be listed when verified.
Lighting and Signals
The 1.5-ton configuration is listed with:
-
Headlights
-
Left and right turn signals
-
Brake lights
-
Instrument-panel lights
-
Electric horn
Confirm whether warning beacon, reversing alarm, mirrors, and rear work lights are included or optional.
Gradeability
The forklift is listed with a climbing ability of approximately 12°. This claim should be verified under clearly defined test conditions.
Gradeability can change according to:
-
Loaded or unloaded operation
-
Surface traction
-
Battery charge
-
Tyre type
-
Ramp length
-
Fork position
-
Load distribution
Do not operate on slopes beyond the verified manufacturer limit.
Suitable Applications
The TN-1.5E may be suitable for:
-
Warehouses
-
Retail stockrooms
-
Manufacturing plants
-
Workshops
-
Food and beverage facilities
-
Building-material stores
-
Hotels
-
Farms
-
Distribution centres
-
Loading bays
-
Small logistics operations
-
Indoor industrial transport
Outdoor use should be limited to surfaces approved for the forklift’s tyres, clearance, and electrical protection rating.
Customization Options
Available customization may include:
-
Body colour
-
Company logo
-
Battery type
-
Battery capacity
-
Mast configuration
-
Lift height
-
Fork length
-
Tyre type
-
Warning lights
-
Mirrors
-
Operator protection
-
Charger specification
Each customized configuration should receive its own final specification sheet and price.
Available Model Range
The supplier also lists the following related models:
-
0.5-ton model
-
0.8-ton model
-
1.0-ton model
-
2.0-ton model
-
3.0-ton model
These models differ in dimensions, weight, motor power, battery capacity, and lifting performance. They should be listed separately rather than grouped under the TN-1.5E product page.
Delivery and Commissioning
Professional commissioning is recommended before operation. Inspection should include:
-
Battery and charger compatibility
-
Hydraulic-fluid level
-
Mast and chain condition
-
Fork alignment
-
Steering response
-
Brake operation
-
Tyre condition
-
Lighting and horn
-
Emergency controls
-
Capacity plate
-
Safety labels
Important Safety Information
Only trained and authorized operators should use the forklift. Never exceed the rated load shown on the final capacity plate.
Keep the load low while travelling, avoid sudden turns, and do not operate on unverified slopes or unstable surfaces.
Inspect the battery, forks, mast, chains, tyres, steering, brakes, hydraulics, lights, and warning devices before every shift.
