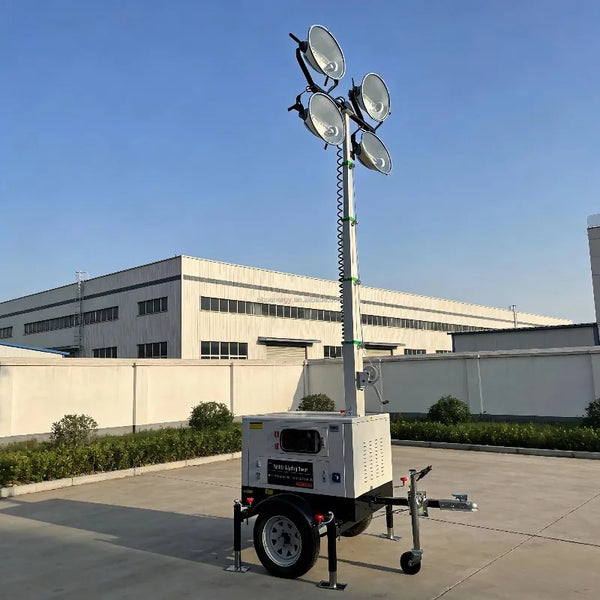

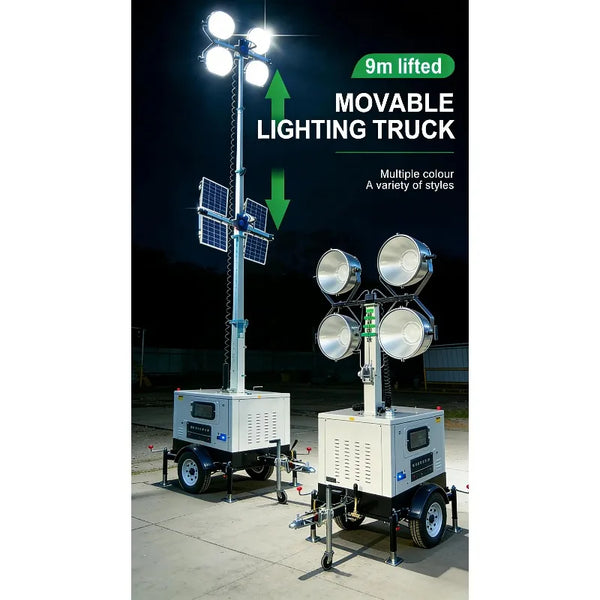

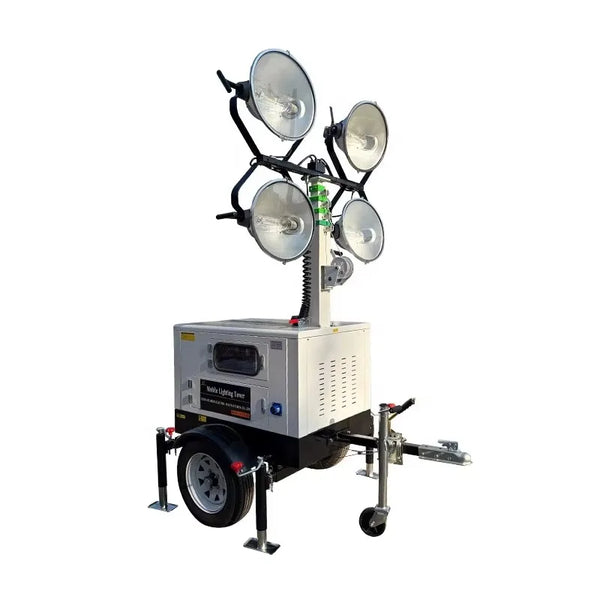

    Diesel Mobile Lighting Towe...

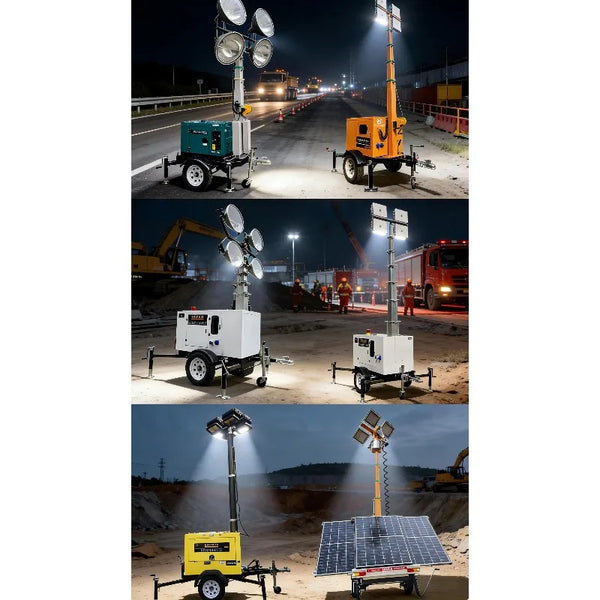

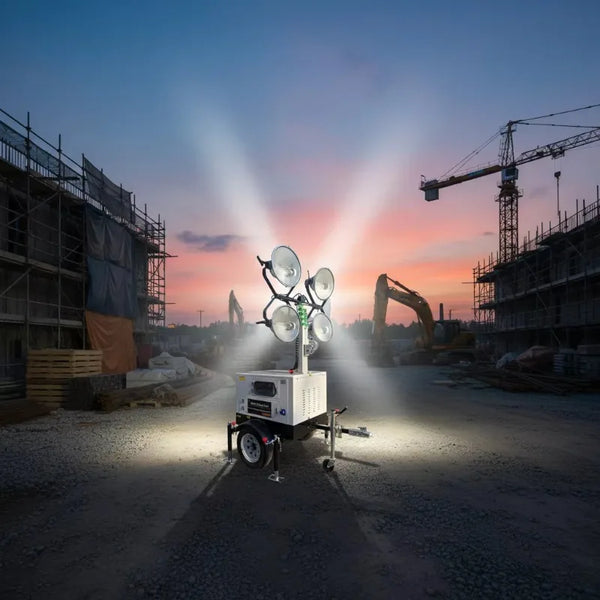

    Provide portable wide-area illumination for construction sites, road maintenance, mining operations, emergency response, outdoor events, industrial work, and remote locations with this Custom Mobile LED Lighting Tower.

    The system can be configured with two, four, six, or eight LED lamps, individual lighting power from approximately 50W to 400W, generator capacities from 700W to 5000W, and battery banks ranging from approximately 100Ah to 1000Ah.

    Available battery technologies include Gel, LiFePO4, AGM, and conventional lead-acid batteries. Mast options include manual, hand-cranked, electric, pneumatic, and hydraulic lifting systems, with carbon-steel or 304 stainless-steel construction.

    Because this is a configurable industrial product, the final lamp quantity, total lighting power, battery chemistry, battery capacity, generator size, mast height, input voltage, output voltage, runtime, dimensions, weight, and package contents must be confirmed for each selected configuration.

    Key Features

    • Custom mobile lighting-tower configuration

    • Two, four, six, or eight lamp options

    • Individual lamp power from approximately 50W to 400W

    • Generator power options from approximately 700W to 5000W

    • Battery capacities from approximately 100Ah to 1000Ah

    • Gel, LiFePO4, AGM, or lead-acid battery options

    • AC and multiple DC voltage configurations

    • Manual, electric, pneumatic, or hydraulic mast options

    • Carbon-steel or 304 stainless-steel mast construction

    • 5000K daylight illumination

    • Listed IP66 environmental protection

    • Metal lighting and structural components

    • Lighting and electrical-circuit design service

    • Custom output-voltage options

    • One-year warranty

    Product Specifications

    • Brand: Confirm Before Publishing

    • Product Name: Mobile Lighting Tower

    • Product Type: Custom Generator and Battery-Powered Lighting Tower

    • Primary Application: Temporary Outdoor and Industrial Lighting

    • Fixture Type: Customizable

    • Light Source: Confirm as LED Before Publishing

    • Lamp Quantity Options: Two, Four, Six, or Eight

    • Individual Lamp Power: Approximately 50W–400W

    • Total Lighting Power: Configuration Dependent

    • Listed Lighting Output: 40,000, exact unit and configuration to be confirmed

    • Colour Temperature: Approximately 5000K Daylight

    • Lamp and Housing Material: Metal

    • Battery Options: Gel, LiFePO4, AGM, or Lead-Acid

    • Battery Capacity Range: Approximately 100Ah–1000Ah

    • Battery Voltage: Confirm for Selected Configuration

    • Input Voltage Options: AC220V, DC24V, DC48V, or DC72V

    • Primary Listed Input: DC24V

    • Output Voltage Options: DC12V, DC24V, DC36V, DC48V, DC72V, or AC220V

    • Generator Power Options: 700W, 1000W, 2000W, 3000W, or 5000W

    • Power Source: Generator and Battery

    • Charging System: Confirm Before Publishing

    • Mast Types: Manual, Hand-Cranked, Electric, Pneumatic, or Hydraulic

    • Mast Material: Carbon Steel or 304 Stainless Steel

    • Mast Height: Confirm Before Publishing

    • Mast Rotation: Confirm Before Publishing

    • Lamp-Head Adjustment: Confirm Before Publishing

    • Protection Rating: IP66, subject to component verification

    • Mobility System: Confirm Before Publishing

    • Stabilizing Supports: Confirm Before Publishing

    • Assembly Required: Yes

    • Operating Temperature: Confirm Before Publishing

    • Continuous Runtime: Confirm Before Publishing

    • Charging Time: Confirm Before Publishing

    • Overall Dimensions: Confirm Before Publishing

    • Total Weight: Confirm Before Publishing

    • Customization: Supported

    • Warranty: One Year

    • Country of Origin: Henan, China

    Configurable Lighting System

    This mobile lighting tower is not a single fixed model.

    It can be configured according to:

    • Required illuminated area

    • Number of lamp heads

    • Wattage per lamp

    • Required runtime

    • Available charging source

    • Battery technology

    • Generator output

    • Mast height

    • Mobility requirements

    • Site environmental conditions

    Each completed configuration should receive its own technical data sheet, SKU, product images, price, and package information.

    Lamp Quantity Options

    Available lamp configurations include:

    • Two lamps

    • Four lamps

    • Six lamps

    • Eight lamps

    The selected quantity affects:

    • Total luminous output

    • Electrical load

    • Generator size

    • Battery runtime

    • Mast load

    • Weight

    • Wind resistance

    • Overall cost

    The final product page should show one exact lamp quantity per purchasable variant.

    Lamp Power Options

    Each lamp may be configured between approximately 50W and 400W.

    Possible total loads include:

    • Two 50W lamps: 100W total

    • Four 100W lamps: 400W total

    • Six 200W lamps: 1200W total

    • Eight 400W lamps: 3200W total

    These are examples only. The actual total load must include:

    • LED drivers

    • Mast motor

    • Charging system

    • Control equipment

    • Auxiliary outputs

    • System losses

    The generator and battery should be sized above the complete continuous load.

    Luminous-Output Error

    The supplied field states “Lamp Luminous Efficiency: 40000.”

    This is not a valid efficiency value because luminous efficiency should be expressed in lumens per watt.

    The 40,000 figure may represent:

    • Total luminous output

    • Output from one lamp configuration

    • A rounded marketing value

    • Incorrect supplier data

    Before publication, confirm:

    • Total lumens

    • Lumens per watt

    • Lamp wattage

    • Lamp quantity

    • Output after optical losses

    • Maintained lumen level

    5000K Daylight Illumination

    The standard listed colour temperature is approximately 5000K.

    This produces a daylight-style white appearance that may support:

    • Construction work

    • Road maintenance

    • Equipment operation

    • Security areas

    • Warehouses

    • Outdoor emergency work

    • Industrial maintenance

    Confirm the colour-rendering index and whether alternative colour temperatures are available.

    Battery Technologies

    The system may use several battery technologies.

    LiFePO4 Battery

    LiFePO4 batteries may offer:

    • High cycle life

    • Lower weight than many lead-acid systems

    • Stable voltage

    • Integrated battery-management compatibility

    • Improved usable capacity

    Confirm:

    • Cell manufacturer

    • Battery-management system

    • Cycle-life rating

    • Maximum discharge current

    • Charging temperature

    • Warranty period

    Gel Battery

    Gel batteries may offer:

    • Sealed construction

    • Reduced electrolyte leakage risk

    • Deep-cycle operation

    • Lower maintenance requirements

    Confirm recommended discharge depth and charging profile.

    AGM Battery

    AGM batteries may provide:

    • Sealed maintenance-free construction

    • High current delivery

    • Familiar charging requirements

    • Good vibration resistance

    Confirm cycle life and usable capacity.

    Lead-Acid Battery

    Conventional lead-acid batteries may provide a lower initial cost but are generally heavier and may require more maintenance.

    Battery types should not be combined within the same battery bank unless expressly approved by the manufacturer.

    Battery Capacity Range

    Available capacity is listed from approximately 100Ah to 1000Ah.

    Battery capacity alone does not define stored energy.

    The final specification must also include voltage.

    For example:

    • 24V × 100Ah = 2.4kWh nominal energy

    • 48V × 500Ah = 24kWh nominal energy

    • 72V × 1000Ah = 72kWh nominal energy

    Actual usable energy depends on battery chemistry, permitted discharge depth, system efficiency, temperature, and battery condition.

    Estimated Runtime

    Runtime must be calculated using:

    • Battery voltage

    • Battery capacity

    • Total lamp power

    • Driver efficiency

    • Inverter losses

    • Mast and control consumption

    • Permitted depth of discharge

    A verified runtime test should be provided for each configuration.

    Do not advertise a universal runtime across 100Ah and 1000Ah battery systems.

    Generator Options

    Available generator capacities include:

    • 700W

    • 1000W

    • 2000W

    • 3000W

    • 5000W

    Before publication, confirm whether these are:

    • Continuous output ratings

    • Maximum output ratings

    • Charging-generator ratings

    • Combined AC output ratings

    A 700W generator will not support a high-power multi-lamp configuration if the total continuous load exceeds its rated capacity.

    Generator and Battery Hybrid Operation

    The lighting tower may combine a generator with battery storage.

    Possible operating modes may include:

    • Generator directly powers lamps

    • Generator charges batteries

    • Batteries power lamps quietly

    • Automatic generator start at low battery

    • Generator and battery operate together

    • External AC charging

    Before publication, confirm:

    • Automatic transfer function

    • Generator-start logic

    • Charging power

    • Battery-management system

    • Inverter rating

    • Low-voltage protection

    • Emergency shutdown

    • Manual override

    Input Voltage Options

    The product lists multiple input voltages:

    • AC220V

    • DC24V

    • DC48V

    • DC72V

    These should be treated as separate electrical configurations.

    The final listing should state:

    • Exact input voltage

    • Voltage tolerance

    • Frequency for AC input

    • Maximum input current

    • Connector type

    • Required circuit protection

    • Charging method

    Output Voltage Options

    Available output voltages include:

    • DC12V

    • DC24V

    • DC36V

    • DC48V

    • DC72V

    • AC220V

    Before publication, confirm:

    • Output socket quantity

    • Maximum current per output

    • Continuous output capacity

    • Surge capacity

    • Inverter type

    • Pure sine wave or modified sine wave

    • Overload protection

    • Grounding arrangement

    Do not list all outputs as standard unless the selected control system includes them.

    Manual Mast

    A manual mast may use direct mechanical lifting or sectional extension.

    Potential benefits include:

    • Simple construction

    • Lower maintenance

    • Reduced power consumption

    • Easier repair

    Confirm:

    • Maximum height

    • Number of sections

    • Locking pins

    • Raising procedure

    • Maximum load

    • Wind-speed limitation

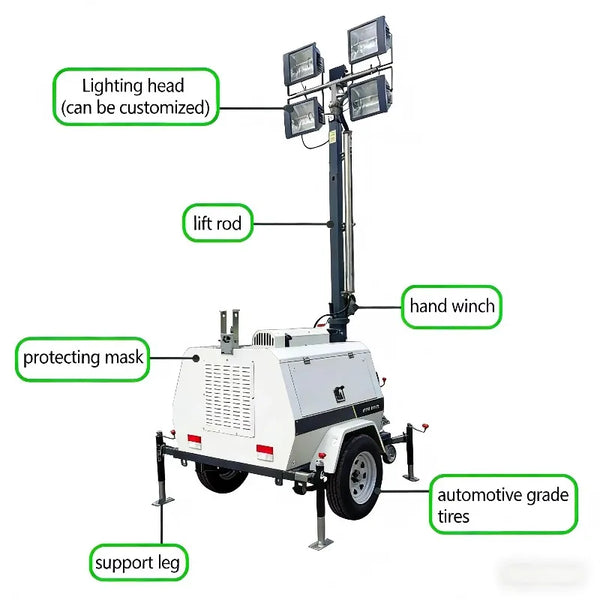

    Hand-Cranked Mast

    A hand-cranked mast may use a mechanical winch.

    Before publication, confirm:

    • Winch load rating

    • Cable material

    • Safety brake

    • Mechanical lock

    • Inspection interval

    • Emergency lowering method

    Electric Mast

    An electric mast may use an electric winch or actuator.

    Confirm:

    • Operating voltage

    • Motor power

    • Raising time

    • Lowering time

    • Limit switches

    • Manual emergency operation

    • Overload protection

    Pneumatic Mast

    A pneumatic mast may use compressed air for extension.

    Confirm:

    • Required pressure

    • Integrated compressor

    • Extension time

    • Maximum height

    • Locking system

    • Air-leak protection

    • Maintenance requirements

    Hydraulic Mast

    A hydraulic mast may offer powered lifting for heavier lamp assemblies.

    Confirm:

    • Hydraulic-pump type

    • Operating pressure

    • Oil specification

    • Safety valve

    • Manual emergency release

    • Extension time

    • Maintenance interval

    Mast Material Options

    The mast may be manufactured from:

    • Carbon steel

    • 304 stainless steel

    Carbon Steel

    Carbon steel may provide:

    • High structural strength

    • Lower cost

    • Easy fabrication

    • Powder-coating options

    Its corrosion resistance depends on surface treatment.

    304 Stainless Steel

    304 stainless steel may provide:

    • Improved corrosion resistance

    • Better appearance

    • Reduced coating requirements

    • Suitability for demanding environments

    It may increase product weight and cost.

    IP66 Environmental Protection

    The listed IP66 rating may provide:

    • Dust-tight enclosure protection

    • Resistance to strong water jets under defined test conditions

    Before publication, confirm whether IP66 applies to:

    • Lamp heads

    • Battery cabinet

    • Electrical control enclosure

    • Generator controls

    • Connectors

    • Complete machine

    IP66 does not mean the lighting tower is designed for underwater use.

    Required Assembly

    The product is listed as requiring assembly.

    Before publication, explain whether assembly includes:

    • Installing lamp heads

    • Connecting cables

    • Attaching mast sections

    • Mounting wheels

    • Installing outriggers

    • Connecting battery terminals

    • Filling generator fluids

    • Commissioning the control panel

    Heavy or electrical assembly should be completed by qualified personnel.

    Mobility and Stabilization

    The listing does not identify whether the unit uses:

    • Hand-push wheels

    • Trailer chassis

    • Skid base

    • Forklift pockets

    • Lifting points

    • Self-loading system

    Confirm:

    • Total weight

    • Wheel and axle specification

    • Towing requirements

    • Stabilizer quantity

    • Maximum permitted slope

    • Wind-speed restrictions

    Lighting Design Service

    Lighting and circuitry design may help determine:

    • Lamp quantity

    • Lamp wattage

    • Mast height

    • Required lux level

    • Battery size

    • Generator capacity

    • Cable sizing

    • Control-panel design

    • Runtime

    • Charging requirements

    A final electrical load calculation should be completed before production.

    Suitable Applications

    The mobile lighting tower may be suitable for:

    • Construction sites

    • Road repairs

    • Mining and quarry operations

    • Emergency response

    • Disaster-relief work

    • Outdoor events

    • Ports and warehouses

    • Utility maintenance

    • Railway work

    • Industrial shutdowns

    • Remote job sites

    • Temporary security lighting

    The final configuration should match the required output, runtime, environmental conditions, and transport method.

    Customization Options

    Available customization may include:

    • Lamp quantity

    • Lamp power

    • Total luminous output

    • Battery chemistry

    • Battery voltage

    • Battery capacity

    • Generator size

    • Input voltage

    • Output voltage

    • Mast type

    • Mast height

    • Mast material

    • Wheel or trailer configuration

    • Control system

    • Automatic generator start

    • Remote monitoring

    • Housing colour

    • Branding

    Each customized tower should receive an approved engineering drawing and technical specification before production.

    Package Contents

    Depending on the selected configuration, the package may include:

    • Mobile lighting-tower frame

    • Two, four, six, or eight lamp heads

    • Telescopic mast

    • Generator

    • Battery bank

    • Battery-management system

    • Charger

    • Inverter

    • Electrical control cabinet

    • Power and output sockets

    • Wheels, trailer, or skid base

    • Stabilizing outriggers

    • Power cables

    • Assembly hardware

    • User manual

    • Wiring diagram

    Only verified included items should appear in the final listing.

    Warranty

    The product includes a listed one-year warranty.

    Before publication, confirm coverage for:

    • LED lamp heads

    • Drivers

    • Battery bank

    • Battery-management system

    • Generator

    • Inverter

    • Charger

    • Mast

    • Lifting system

    • Control cabinet

    • Wheels or trailer

    • Labour

    • Replacement parts

    • Return shipping

    Battery, generator, and electrical components may have separate warranty periods.

    Important Safety Information

    Install and assemble the lighting tower according to the approved engineering drawings and wiring diagram.

    Deploy all stabilizers on firm, level ground before extending the mast. Never move or transport the tower while the mast is raised.

    Use qualified personnel for battery installation, high-voltage wiring, generator service, inverter connection, mast repairs, and system commissioning.

    Observe correct battery polarity and use only the approved charger for the selected battery chemistry. Never mix different battery technologies, capacities, ages, or voltage ratings in the same battery bank.

    Operate generator-equipped models only in properly ventilated outdoor areas because exhaust gases contain carbon monoxide.

    Translation missing: en.general.search.loading
