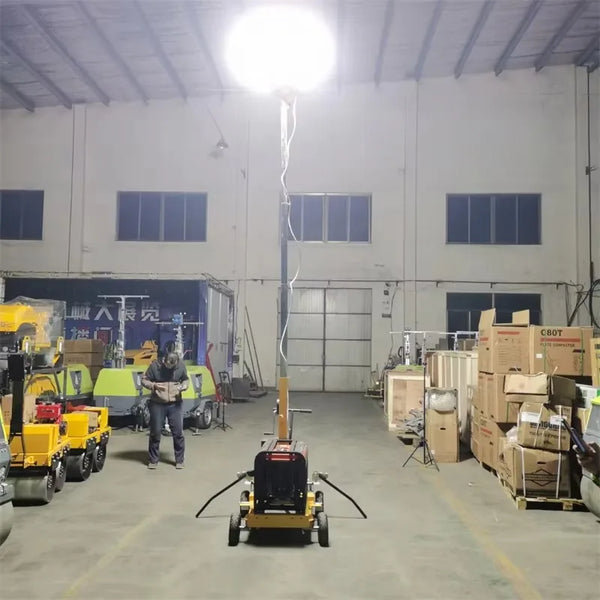

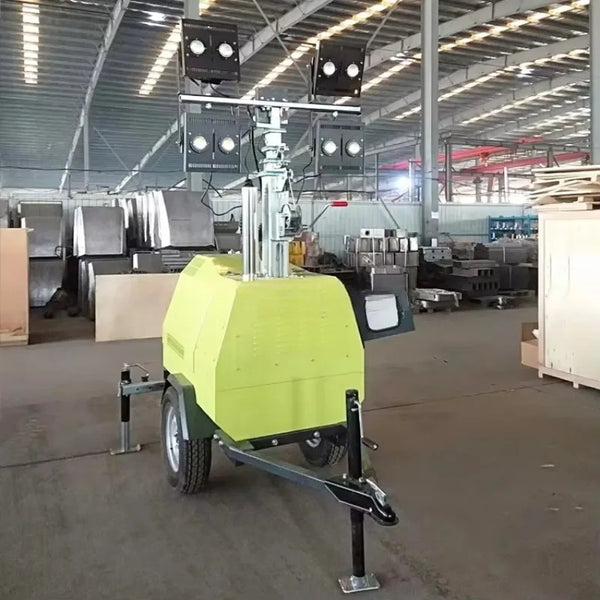

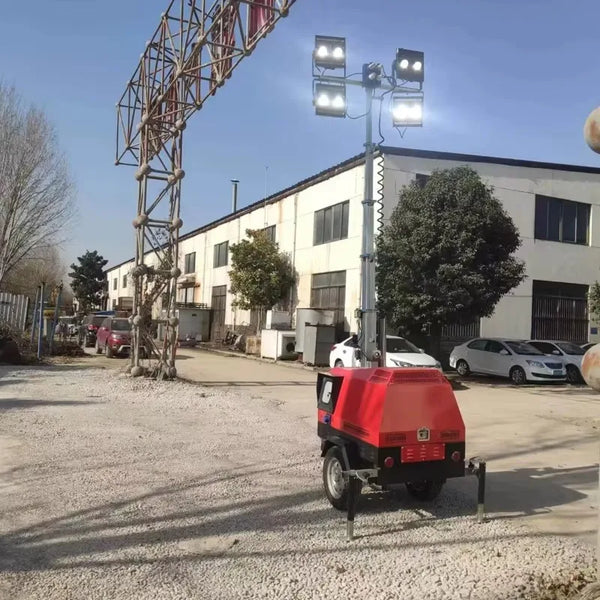

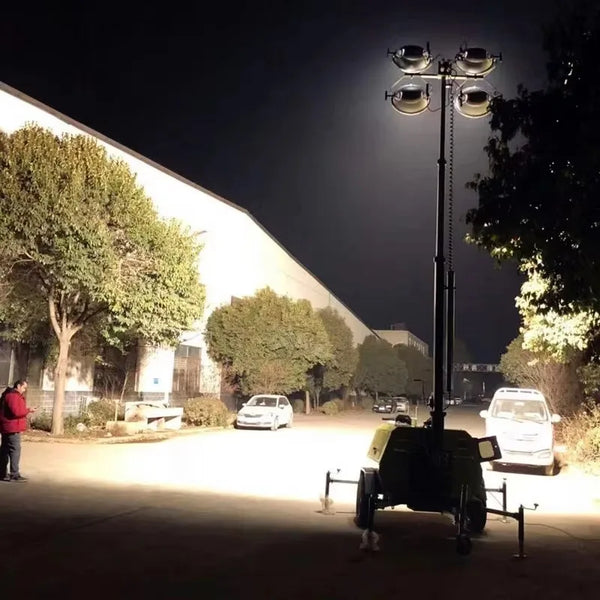

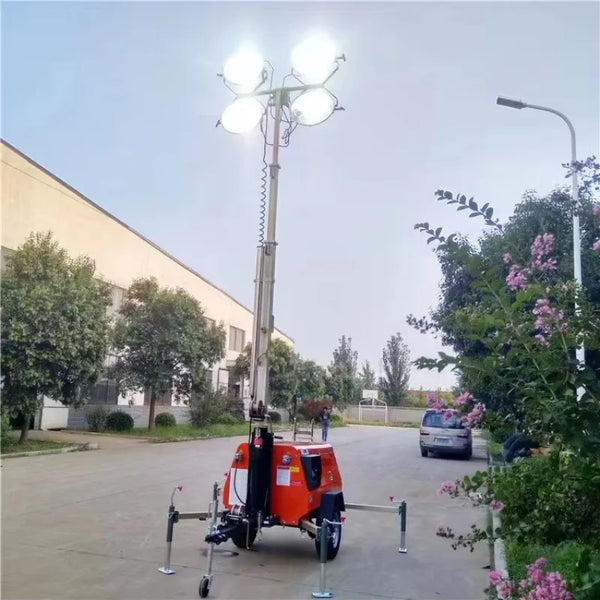

    Diesel Generator Mobile Lig...

    Provide temporary wide-area illumination for construction sites, road maintenance, emergency response, mining operations, outdoor events, warehouses, and remote work locations with the YG 5M Portable Mobile Lighting Tower.

    The standard configuration includes four 1,000W lighting heads, a hand-push mobile base, and a telescopic mast adjustable from approximately 1.7 to 4.8 metres. Depending on the selected configuration, the tower may use LED or halogen lamps and operate from an external AC supply or an integrated generator system.

    The exact lamp technology, total luminous output, generator specification, fuel runtime, beam distribution, environmental rating, dimensions, and included accessories should be confirmed before publication.

    Key Features

    • Four 1,000W lighting heads

    • Approximately 4,000W total lighting power

    • Telescopic mast adjustable from approximately 1.7 to 4.8 m

    • Hand-push portable design

    • LED or halogen lamp configurations

    • AC 110–240V operating options

    • 50 Hz electrical frequency

    • Approximately 360° total lighting coverage

    • 5000K daylight colour option

    • White or yellow emitting-light options

    • 25 L listed fuel-tank capacity on generator-equipped models

    • IP67 protection claim, subject to system verification

    • Suitable for temporary outdoor lighting

    • Custom configurations available

    • One-year warranty

    Product Specifications

    • Brand: YG, subject to final confirmation

    • Model: 5M

    • Product Type: Portable Mobile Lighting Tower

    • Alternative Product Name: 5M Tower Crane Light

    • Mobility: Hand Push

    • Light Source Options: LED or Halogen

    • Lamp Quantity: Four

    • Lamp Power: 4 × 1,000W

    • Total Lamp Power: Approximately 4,000W

    • Listed LED Efficiency: Approximately 110 lm/W

    • Alternative Efficiency Range: Approximately 110–140 lm/W, subject to verification

    • Total Luminous Output: Confirm Before Publishing

    • Beam Coverage: Approximately 360° Total Coverage

    • Colour Temperature: Approximately 5000K Daylight

    • Emitting Colours: White or Yellow

    • Colour Rendering Index: Listed as Ra 70 or Above 75, subject to confirmation

    • Input Voltage: AC 110–240V

    • Electrical Frequency: 50 Hz

    • Power Supply: AC

    • Fuel-Tank Capacity: 25 L on Applicable Generator Configuration

    • Generator Included: Confirm Before Publishing

    • Fuel Type: Confirm Before Publishing

    • Mast Type: Telescopic

    • Minimum Mast Height: Approximately 1,700 mm

    • Maximum Mast Height: Approximately 4,800 mm

    • Model Height Classification: Approximately 5 m

    • Mast-Lifting Method: Confirm Before Publishing

    • Mast Rotation: Confirm Before Publishing

    • Lamp-Head Adjustment: Confirm Before Publishing

    • Dimming: Not Supported

    • Ingress Protection: IP67, subject to component verification

    • Operating Temperature: Approximately -20°C to 45°C

    • Listed Lamp Life: Approximately 10,000 Hours

    • Alternative Working-Life Range: 3,000–50,000 Hours, subject to clarification

    • Warranty: One Year

    • Customization: Supported

    • Country of Origin: Henan, China

    Product Configuration Clarification

    The supplied specifications combine several possible configurations:

    • LED lamps

    • Halogen lamps

    • External AC power

    • Generator power with a 25 L fuel tank

    • Portable hand-push base

    • General trailer-mounted lighting-tower descriptions

    The final product should be divided into separate configurations, such as:

    • AC-powered LED mobile light tower

    • Generator-powered LED mobile light tower

    • AC-powered halogen mobile light tower

    • Generator-powered halogen mobile light tower

    Each configuration should have a separate SKU, images, price, power consumption, luminous output, runtime, and package contents.

    Four-Lamp Lighting System

    The standard tower includes four lamps rated at approximately 1,000W each.

    This gives a combined lamp load of:

    • Lamp Quantity: Four

    • Power per Lamp: 1,000W

    • Total Lighting Load: Approximately 4,000W

    Before publication, confirm whether the 1,000W rating applies to:

    • LED lamps

    • Halogen lamps

    • Metal-halide lamps

    • Mixed lamp options

    A 1,000W LED light and a 1,000W halogen light have significantly different luminous outputs, operating temperatures, efficiency, and service life.

    LED Configuration

    The LED version is listed with an efficiency of approximately 110 lm/W.

    At this efficiency, the estimated raw luminous output would be approximately:

    • Per 1,000W Lamp: 110,000 lm

    • Four Lamps Combined: 440,000 lm

    This calculated value should not be published as actual system output without a verified photometric report.

    Confirm:

    • Complete-luminaire efficiency

    • Output after optical losses

    • Beam angle

    • Driver efficiency

    • Maintained lumen output

    • Colour temperature

    • CRI

    Halogen Configuration

    The listing also mentions halogen bulbs.

    Halogen lamps generally provide:

    • Warm light output

    • Instant startup

    • Simpler lamp replacement

    • Lower luminous efficiency

    • Higher heat generation

    • Shorter service life than LED

    The listed 110–140 lm/W efficiency should not be applied to the halogen version.

    Luminous-Flux Error

    The field “Lamp Luminous Flux: 110–140 lm/W” is incorrectly formatted.

    Lumens per watt measure efficiency, not total luminous flux.

    The final specification should separately show:

    • Luminous Efficiency: lm/W

    • Total Luminous Output: lm

    • Lamp Power: W

    • Lamp Quantity: Units

    360-Degree Lighting Coverage

    The listed 360° beam angle likely refers to the combined coverage created by four adjustable lamp heads.

    Before publication, confirm:

    • Individual lamp beam angle

    • Horizontal rotation

    • Vertical tilt

    • Total illuminated area

    • Recommended mast height

    • Lux levels at selected distances

    • Dark-zone and overlap performance

    A single directional lamp may not provide a true 360° beam.

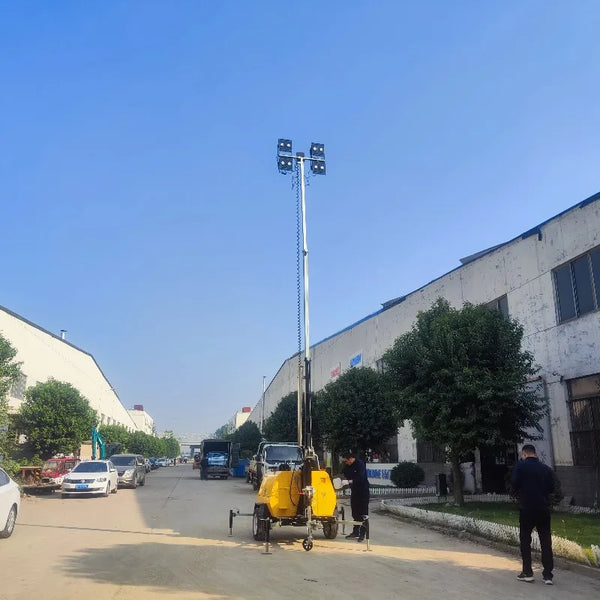

    Telescopic Mast

    The mast extends from approximately:

    • Minimum Height: 1.7 m

    • Maximum Height: 4.8 m

    The product name rounds the maximum height to approximately 5 m.

    Before publication, confirm:

    • Number of mast sections

    • Mast material

    • Lifting mechanism

    • Extension time

    • Retraction time

    • Mechanical locking system

    • Rotation range

    • Maximum wind-speed rating

    • Emergency lowering system

    Hand-Push Mobile Base

    The lighting tower uses a hand-push mobility system.

    This may support:

    • Movement around work sites

    • Positioning without a towing vehicle

    • Temporary indoor or outdoor deployment

    • Compact storage

    • Short-distance relocation

    Before publication, confirm:

    • Wheel quantity

    • Wheel diameter

    • Tyre type

    • Parking brakes

    • Handle design

    • Maximum slope

    • Total machine weight

    • Stabilizing supports

    AC Power Configuration

    The product lists an input range of AC 110–240V at 50 Hz.

    Before publication, confirm:

    • Single-phase or three-phase input

    • Maximum input current

    • Plug type

    • Cable length

    • Circuit-breaker requirement

    • Grounding system

    • Residual-current protection

    • Whether 60 Hz is also supported

    A 4,000W lighting load may require a dedicated electrical circuit.

    Generator and Fuel-Tank Configuration

    A 25 L fuel tank is listed, suggesting an optional generator-powered model.

    Before publication, confirm:

    • Generator manufacturer

    • Generator model

    • Fuel type

    • Continuous output

    • Maximum output

    • Fuel consumption

    • Runtime at full lighting load

    • Noise level

    • Engine starting method

    • Emissions compliance

    • Low-oil shutdown

    • Fuel-level indicator

    Do not list the fuel tank on AC-only configurations.

    Colour Temperature

    The standard listed colour temperature is approximately 5000K daylight.

    This may provide:

    • Bright neutral-white illumination

    • Good general work-site visibility

    • Clear equipment and surface detail

    • Suitable outdoor task lighting

    Yellow emitting-light options may refer to:

    • Warm-colour lamps

    • Amber warning lights

    • Halogen lamps

    • Custom safety lighting

    The exact colour specification should be confirmed.

    Colour Rendering Conflict

    Two different CRI values are supplied:

    • Ra 70

    • CRI above 75

    Before publication, confirm the tested value for each lamp type.

    CRI affects the accuracy with which colours appear under the lighting system.

    IP67 Protection

    The tower is listed with an IP67 rating.

    Before publication, verify whether IP67 applies to:

    • Individual lamp housings

    • Electrical control box

    • Cable connectors

    • Generator enclosure

    • Complete machine

    IP67 generally indicates dust-tight protection and resistance to temporary water immersion under defined conditions.

    The complete tower should not inherit the lamp-head rating unless the full assembly has been tested.

    Working-Life Conflict

    The listing provides several service-life values:

    • 3,000–50,000 hours

    • 10,000 hours

    • 3,000–50,000 working hours

    These may correspond to different lamp technologies:

    • Halogen: lower lifetime

    • Traditional discharge lamps: medium lifetime

    • LED: higher lifetime

    Each lamp version should have its own verified service-life specification.

    Working Temperature

    The listed operating-temperature range is approximately:

    • Minimum: -20°C

    • Maximum: 45°C

    Before publication, confirm:

    • Starting performance

    • Cable flexibility

    • Generator operation

    • Battery performance, if fitted

    • LED-driver derating

    • Maximum humidity

    • Storage-temperature range

    Lighting Design Service

    Lighting and circuitry design may be available for project installations.

    A professional lighting plan can help determine:

    • Required number of towers

    • Recommended mast height

    • Lamp direction

    • Average lux level

    • Cable sizing

    • Electrical load

    • Shadow control

    • Work-area coverage

    Suitable Applications

    The portable lighting tower may be suitable for:

    • Construction sites

    • Road repair

    • Mining and quarry work

    • Emergency response

    • Disaster-relief activities

    • Outdoor events

    • Port and warehouse operations

    • Industrial maintenance

    • Utility work

    • Railway projects

    • Temporary parking areas

    • Remote job sites

    The selected lamp type and power system should match the site’s required illumination, runtime, mobility, and power availability.

    Customization Options

    Available custom options may include:

    • LED or halogen lamps

    • Lamp wattage

    • Total luminous output

    • Beam angle

    • Colour temperature

    • Mast height

    • Mast-lifting method

    • Generator capacity

    • Fuel-tank size

    • Input voltage

    • Cable length

    • Wheel and chassis design

    • Housing colour

    • Branding

    Each customized version should receive a final approved technical data sheet.

    Package Contents

    Depending on the selected configuration, the package may include:

    • Portable mobile base

    • Telescopic mast

    • Four 1,000W lamp heads

    • Electrical control panel

    • AC power cable

    • Generator and 25 L fuel tank, if selected

    • Stabilizing supports

    • Operating handle

    • User manual

    • Maintenance documentation

    Only verified included components should appear in the final listing.

    Warranty

    The listed warranty period is one year.

    Before publication, confirm whether coverage includes:

    • Lamp heads

    • LED drivers or halogen fittings

    • Mast

    • Lifting mechanism

    • Generator

    • Control panel

    • Wheels

    • Electrical cables

    • Fuel system

    • Labour

    • Replacement parts

    • Return shipping

    Important Safety Information

    Position the lighting tower on firm, level ground and deploy all stabilizers before extending the mast.

    Do not move the tower while the mast is raised. Maintain safe clearance from overhead electrical lines, cranes, buildings, trees, and other obstructions.

    Use qualified personnel for electrical connection, lamp replacement, generator servicing, mast maintenance, and cable repairs.

    Operate generator-equipped models only in properly ventilated outdoor areas because exhaust gases contain carbon monoxide.
