    Customized Small 1.5 Tons 2...

    Improve pallet transport, warehouse stacking, loading, and industrial material handling with the YG 1.5-Ton Electric Forklift. Designed for seated operation, this compact four-wheel forklift provides a rated lifting capacity of 1,500 kg and a standard lifting height of approximately 3,000 mm.

    Its 3,000W electric drive motor, hydraulic steering system, solid industrial tyres, and compact turning radius support warehouse, manufacturing, retail, workshop, and general logistics applications.

    The supplied information also includes specifications for manual pallet trucks, 2-ton forklifts, diesel forklifts, and gasoline forklifts. These should be published as separate products.

    Key Features

    • 1,500 kg rated lifting capacity

    • Approximately 3,000 mm lift height

    • 3,000W electric drive motor

    • 72V rechargeable battery system

    • Hydraulic power-assisted steering

    • Solid industrial tyres

    • Approximately 1,550 mm turning radius

    • Regenerative braking capability, subject to controller verification

    • Ramp braking and fault diagnostics, subject to configuration

    • Compact four-wheel chassis

    • Customizable lift height

    • Custom colour and logo options

    • One-year machine warranty

    • Machinery test report available

    • Video outgoing inspection available

    Product Specifications

    • Brand: YG, subject to confirmation

    • Model: Confirm Exact Model Number

    • Product Type: Electric Counterbalance Forklift

    • Condition: New

    • Rated Lifting Capacity: 1,500 kg

    • Power Source: Rechargeable Battery

    • Drive Motor: 3,000W Electric Motor

    • Motor Type: Confirm as AC or Brushless AC

    • Rated Voltage: 72V

    • Battery Capacity: Listed as 130Ah × 6, subject to clarification

    • Battery Chemistry: Confirm Before Publishing

    • Charging Time: Approximately 8–10 Hours

    • Standard Lift Height: Approximately 3,000 mm

    • Custom Lift Height: Available

    • Loaded Lift Speed: Approximately 160 mm/s

    • Unloaded Lift Speed: Approximately 190 mm/s

    • Travel Speed: Approximately 12–13 km/h

    • Turning Radius: Approximately 1,550 mm

    • Steering System: Hydraulic Power-Assisted Steering

    • Axle Type: Integrated Cast-Steel Axle

    • Fork Dimensions: Approximately 1,070 × 100 × 30 mm

    • Maximum Fork Spread: Approximately 980 mm

    • Minimum Fork Spread: Approximately 300 mm

    • Vehicle Length: Approximately 2,300 mm

    • Vehicle Width: Approximately 1,200 mm

    • Vehicle Height: Confirm Before Publishing

    • Machine Weight: Approximately 2,700 kg

    • Wheelbase: Approximately 1,700 mm

    • Front/Rear Track Width: Approximately 1,000/930 mm

    • Front Tyres: Approximately 650-10 Solid Tyres

    • Rear Tyres: Approximately 500-8 Solid Tyres

    • Colour: Customizable

    • Certification: CE, subject to valid documentation

    • Warranty: 12 Months

    • Core Component Warranty: 12 Months

    • Country of Origin: Henan, China

    1.5-Ton Lifting Capacity

    The forklift is designed to lift loads up to 1,500 kg under the manufacturer’s approved load-centre, fork, mast, and attachment conditions.

    Actual lifting capacity may be reduced by:

    • Increased load-centre distance

    • Higher lift positions

    • Extended forks

    • Optional attachments

    • Uneven load distribution

    • Sloped surfaces

    • Non-standard mast configurations

    The final forklift must include an accurate capacity plate showing the approved lifting capacity.

    Three-Metre Lift Height

    The standard mast provides a listed lifting height of approximately 3,000 mm.

    Before publication, confirm:

    • Mast type

    • Number of mast stages

    • Lowered mast height

    • Extended mast height

    • Free-lift height

    • Forward and rear tilt angles

    • Residual capacity at maximum height

    • Lowering speed

    Custom lift heights should be listed as separate configurations where they significantly change the machine dimensions or capacity.

    Electric Drive System

    The forklift uses a listed 3,000W electric drive motor.

    Before publishing, confirm:

    • Exact motor technology

    • Rated and peak power

    • Lift-motor power

    • Controller brand and model

    • Maximum loaded speed

    • Maximum unloaded speed

    • Regenerative braking

    • Hill-hold function

    • Motor protection features

    The supplier mentions an imported controller, but the exact manufacturer and model should be verified.

    Battery System

    The listed electrical system is 72V with a battery specification shown as 130Ah × 6.

    This should be clarified before publication because it may refer to:

    • Six battery cells or modules forming a 72V/130Ah system

    • Six independent 130Ah batteries

    • An incorrectly formatted supplier specification

    Confirm:

    • Battery chemistry

    • Total system voltage

    • Total battery capacity

    • Stored energy in kWh

    • Battery module count

    • Charger input voltage

    • Charging current

    • Working duration

    • Battery warranty

    • Maintenance requirements

    Lithium-ion and lead-acid versions should be published separately if both are available.

    Charging Time

    The listed charging time is approximately 8–10 hours.

    Actual charging time depends on:

    • Battery chemistry

    • Battery capacity

    • Charger output

    • Starting charge level

    • Battery temperature

    • Battery condition

    • Power-supply voltage

    The listing should state whether the charger is included with the forklift.

    Fork Configuration

    The individual fork dimensions are listed as approximately:

    • Length: 1,070 mm

    • Width: 100 mm

    • Thickness: 30 mm

    The listed 300 mm value appears to represent minimum fork spacing rather than individual fork width.

    Additional fork information includes:

    • Minimum Fork Spread: Approximately 300 mm

    • Maximum Fork Spread: Approximately 980 mm

    Confirm the applicable load centre and residual capacity for the selected fork spread.

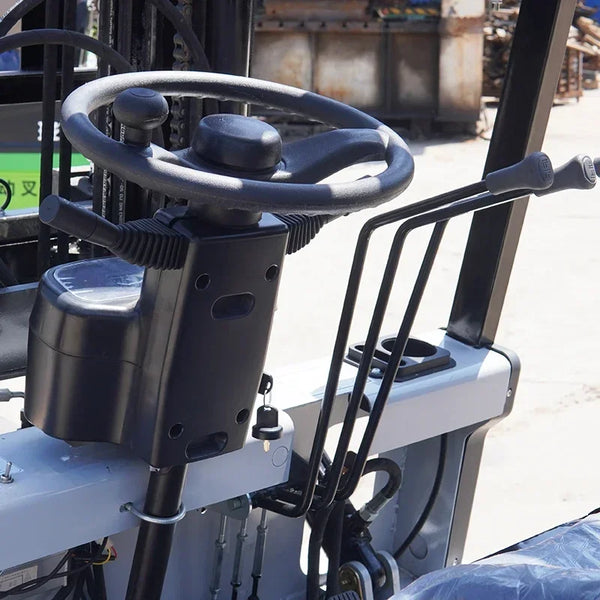

    Hydraulic Steering

    The hydraulic power-assisted steering system is designed to reduce steering effort and improve low-speed manoeuvrability.

    It may support:

    • Easier aisle positioning

    • Smoother steering response

    • Improved loading accuracy

    • Reduced operator fatigue

    The exact steering angle and minimum aisle width should be added to the final specification sheet.

    Solid Industrial Tyres

    The forklift uses solid tyres designed to resist punctures and reduce routine maintenance.

    Listed tyre sizes include:

    • Front: 650-10

    • Rear: 500-8

    These tyres may be suitable for:

    • Warehouse floors

    • Manufacturing facilities

    • Loading bays

    • Workshops

    • Smooth outdoor pavement

    • Industrial yards

    They are not automatically suitable for severe rough terrain, mud, or deep gravel.

    Travel and Manoeuvrability

    The listed performance includes:

    • Travel speed of approximately 12–13 km/h

    • Turning radius of approximately 1,550 mm

    • Wheelbase of approximately 1,700 mm

    Confirm whether the two travel-speed values represent loaded and unloaded performance.

    Braking and Control Features

    Depending on the final controller and braking configuration, the forklift may include:

    • Regenerative braking

    • Ramp braking

    • Hydraulic service braking

    • Mechanical parking brake

    • Fault self-diagnosis

    • Speed control

    • Emergency stop

    Only verified standard features should be shown in the published product package.

    Chassis and Maintenance Access

    The forklift is described as using:

    • An integrated cast-steel axle

    • A compact remote-drive unit

    • A low-centre-of-gravity chassis

    • A fully opening hood

    • Removable side access panels

    These features may simplify access to the battery, controller, motor, and hydraulic components during maintenance.

    Suitable Applications

    The YG 1.5-Ton Electric Forklift may be suitable for:

    • Warehouses

    • Manufacturing plants

    • Garment facilities

    • Building-material stores

    • Machinery-repair workshops

    • Food and beverage factories

    • Restaurants

    • Retail storage

    • Printing facilities

    • Farms

    • Energy and mining support facilities

    • Construction-material operations

    Special food-grade, cold-storage, hazardous, or outdoor environments may require additional equipment.

    Optional Attachments

    Depending on hydraulic capacity and model compatibility, available attachments may include:

    • Side shifter

    • Fork positioner

    • Extended forks

    • Carton clamp

    • Bale clamp

    • Rotator

    • Drum handler

    • Load backrest

    Every attachment can change the forklift’s residual lifting capacity and should be reflected on the final capacity plate.

    Customization Options

    Available customization may include:

    • Lift height

    • Mast type

    • Fork dimensions

    • Battery chemistry

    • Battery capacity

    • Charger specification

    • Tyre type

    • Body colour

    • Company logo

    • Safety lights

    • Warning beacon

    • Reversing alarm

    • Operator cabin

    Each customized machine should receive a final approved technical specification sheet and accurate price.

    Inspection and Warranty

    The supplier states that a machinery test report and outgoing inspection video are available.

    The listed warranty period is 12 months for the machine and core components.

    Before publishing, confirm coverage for:

    • Battery

    • Drive motor

    • Controller

    • Hydraulic pump

    • Steering system

    • Mast and lift chains

    • Labour

    • Operating-hour limits

    • Warranty exclusions

    Important Safety Information

    Only trained and authorized operators should use the forklift. Never exceed the capacity shown on the final data plate.

    Keep loads low while travelling and avoid sudden turns, unstable floors, and slopes beyond the verified manufacturer limit.

    Inspect the forks, mast, chains, battery, tyres, steering, brakes, hydraulics, controls, and warning devices before every shift.
