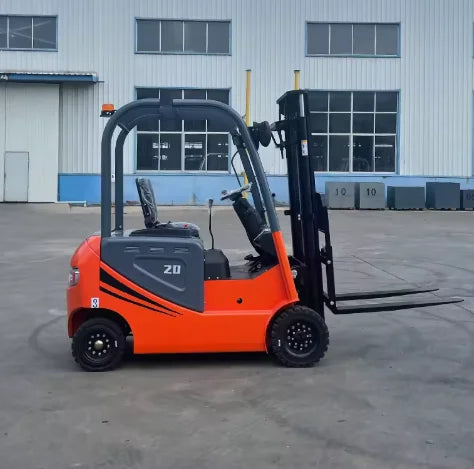

    Improve pallet transport, warehouse stacking, loading, and industrial material handling with this 2-Ton Electric Counterbalance Forklift. Designed for seated operation, the reference configuration provides a rated lifting capacity of approximately 2,000 kg and may be customized with two-stage or three-stage mast options.

    The electric drive system supports quieter operation and produces no direct exhaust emissions at the point of use. Depending on the selected configuration, the forklift may be supplied with a lithium-ion or lead-acid battery, solid industrial tyres, custom lift height, and optional attachments.

    The supplied information also contains specifications for stackers, pallet trucks, diesel forklifts, rough-terrain forklifts, and models from 1.5 to 20 tons. These should be listed as separate products.

    Key Features

    • 2,000 kg reference lifting capacity

    • Electric counterbalance forklift

    • Seated operator configuration

    • Lithium-ion battery option

    • Lead-acid battery option

    • Two-stage or three-stage mast

    • Standard 1,220 mm forks

    • Solid industrial tyres

    • Brushless AC drive motor

    • Custom lift-height options

    • Custom colour and logo options

    • Suitable for warehouse and industrial operations

    • CE certification, subject to verification

    • Approximately 18-month warranty

    Product Specifications

    • Brand: YG or HILT, subject to confirmation

    • Model: Confirm Exact 2-Ton Model

    • Product Type: Electric Counterbalance Forklift

    • Condition: New

    • Operating Mode: Seated Operation

    • Reference Rated Capacity: 2,000 kg

    • Power Source: Rechargeable Electric Battery

    • Battery Type: Lithium-Ion or Lead-Acid

    • Battery Voltage: Confirm Before Publishing

    • Battery Capacity: Confirm in Ah and kWh

    • Charging Time: Approximately 2.5 Hours for Selected Lithium Configuration, subject to verification

    • Operating Time: Confirm Before Publishing

    • Drive Configuration: Confirm as Rear-Wheel Drive or Four-Wheel Drive

    • Mast Options: Two-Stage or Three-Stage

    • Standard Lift Height: Approximately 3,000 mm

    • Optional Lift Height: Up to 8,000 mm, subject to model verification

    • Fork Length: Approximately 1,220 mm

    • Fork Width: Listed as 70 mm, subject to correction

    • Load Centre: Confirm Before Publishing

    • Travel Motor: Brushless AC Motor

    • Motor Power: Confirm for 2-Ton Model

    • Tyre Type: Solid Industrial Tyres

    • Rear Tyre Reference: 500-8, subject to configuration

    • Gradeability: Listed Above 30%, subject to verified test conditions

    • Turning Radius: Confirm Before Publishing

    • Travel Speed: Confirm Before Publishing

    • Overall Dimensions: Confirm Before Publishing

    • Vehicle Weight: Confirm Before Publishing

    • Terrain Suitability: Indoor Floors and Suitable Outdoor Paved Surfaces

    • Colour: Customizable

    • Warranty: Approximately 18 Months, subject to terms

    • Certification: CE, subject to valid model documentation

    • Country of Origin: Henan or Shandong, China, subject to manufacturer confirmation

    Two-Ton Lifting Capacity

    The reference configuration is intended to lift loads up to 2,000 kg under the manufacturer’s approved load-centre, mast, fork, and attachment conditions.

    Actual safe lifting capacity may be reduced by:

    • Increased load-centre distance

    • Greater lift height

    • Extended forks

    • Side-shift attachments

    • Uneven load distribution

    • Sloped or unstable surfaces

    • Non-standard mast configurations

    The final forklift must include a verified capacity plate for the supplied configuration.

    Electric Drive System

    The forklift may use a brushless AC travel motor for smooth low-speed control and efficient warehouse operation.

    Before publishing, confirm:

    • Travel-motor rated power

    • Peak motor power

    • Lift-motor power

    • Controller brand and model

    • Regenerative braking

    • Maximum travel speed

    • Loaded travel speed

    • Emergency stopping system

    • Drive-wheel arrangement

    Battery Options

    The supplier references lithium-ion, lead-acid, and traction-battery options.

    Each battery configuration should be listed separately with:

    • Nominal voltage

    • Capacity in Ah

    • Stored energy in kWh

    • Battery chemistry

    • Charger input requirements

    • Charging time

    • Typical working duration

    • Cycle-life rating

    • Battery-management system

    • Battery warranty

    Do not state that all models use lithium batteries when lead-acid options are also available.

    Fast Charging

    A charging time of approximately 2.5 hours is mentioned for lithium-equipped versions.

    This claim should only be published when confirmed for the selected:

    • Battery capacity

    • Charger output

    • Input power supply

    • Battery temperature

    • Starting charge level

    • Battery-management system

    Lead-acid batteries normally require a different charging process and should not use the same charging-time claim.

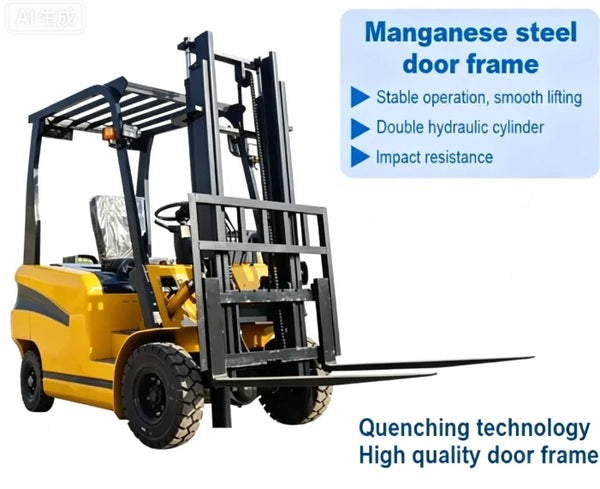

    Mast and Lift-Height Options

    The forklift may be available with:

    • Two-stage mast

    • Three-stage mast

    • Standard 3,000 mm lift

    • Custom lift heights

    • High-lift configurations up to 8,000 mm, subject to confirmation

    For each mast, confirm:

    • Lowered mast height

    • Free-lift height

    • Fully raised height

    • Mast tilt angles

    • Lift speed

    • Lowering speed

    • Residual capacity at maximum height

    An 8,000 mm lift configuration may require a different chassis, counterweight, and capacity rating.

    Fork Configuration

    The listed fork length is approximately 1,220 mm.

    The stated 70 mm fork width should be verified because forklift forks are normally specified by:

    • Length

    • Width

    • Thickness

    • Adjustable spread

    • Load-centre rating

    Longer or narrower forks can affect load stability and lifting capacity.

    Solid Industrial Tyres

    Solid tyres are designed to resist punctures and reduce routine tyre maintenance.

    They may be suitable for:

    • Warehouse floors

    • Manufacturing facilities

    • Loading bays

    • Smooth outdoor pavement

    • Industrial yards

    • Retail distribution areas

    A standard solid-tyre forklift should not be marketed for severe rough terrain without verified ground clearance, axle, suspension, traction, and stability data.

    Terrain and Drive Configuration

    The supplier lists both rear-wheel drive and four-wheel drive.

    These should be treated as separate configurations:

    Standard Warehouse Version

    May use rear-wheel steering or a conventional counterbalance drivetrain for indoor and paved-surface operation.

    Rough-Terrain Version

    May require four-wheel drive, pneumatic tyres, greater ground clearance, reinforced axles, and verified gradeability.

    Do not describe a standard warehouse forklift as a rough-terrain forklift unless the exact machine is designed for that use.

    Available Related Models

    The supplier provides the following reference models:

    CPD-15

    • Rated capacity: 1,500 kg

    • Standard lift height: approximately 3,000 mm

    • Travel motor: approximately 5kW

    • Rear tyre: 500-8 solid tyre

    CPD-25

    • Rated capacity: 2,500 kg

    • Standard lift height: approximately 3,000 mm

    • Travel motor: approximately 8kW

    • Rear tyre: 500-8 solid tyre

    CPD-30

    • Rated capacity: 3,000 kg

    • Standard lift height: approximately 3,000 mm

    • Travel motor: approximately 10kW

    • Rear tyre: 500-8 solid tyre

    A dedicated 2-ton model must be confirmed before publishing this listing.

    Suitable Applications

    This electric forklift may be suitable for:

    • Warehouses

    • Manufacturing plants

    • Construction-material stores

    • Farms

    • Retail distribution

    • Energy facilities

    • Mining support operations

    • Loading bays

    • Indoor logistics

    • Outdoor paved industrial yards

    Special rough-terrain, cold-storage, hazardous, or food-grade applications may require additional equipment.

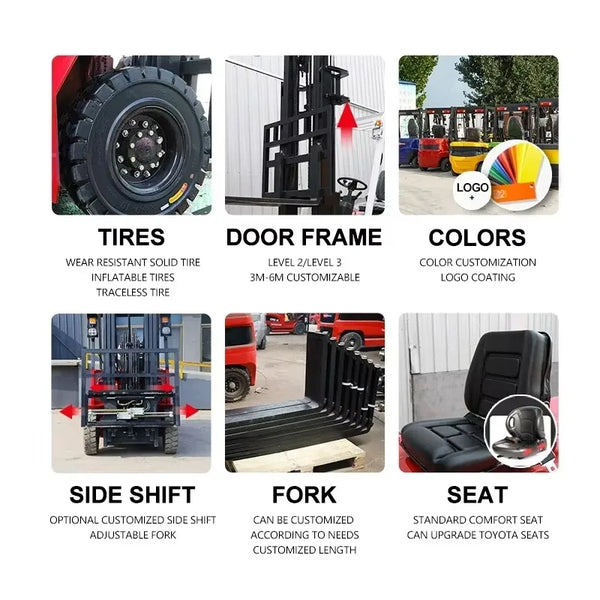

    Customization Options

    Possible customization may include:

    • Load capacity

    • Lithium-ion or lead-acid battery

    • Battery capacity

    • Charger specification

    • Two-stage or three-stage mast

    • Lift height

    • Fork dimensions

    • Side shifter

    • Fork positioner

    • Solid or pneumatic tyres

    • Body colour

    • Company logo

    • Operator cabin

    • LED lights

    • Mirrors

    • Warning beacon

    • Reversing alarm

    Each customized unit should receive a final approved technical specification sheet.

    Warranty and Support

    The listed warranty period is approximately 1.5 years. Before publishing, confirm:

    • Covered components

    • Battery coverage

    • Motor and controller coverage

    • Hydraulic-system coverage

    • Labour terms

    • Operating-hour limit

    • Spare-parts policy

    • Service location

    • Warranty exclusions

    Important Safety Information

    Only trained and authorized operators should use the forklift. Never exceed the capacity shown on the final data plate.

    Keep loads low while travelling and avoid sudden turns, unstable terrain, and slopes beyond the verified limit.

    Inspect the forks, mast, chains, battery, tyres, brakes, steering, hydraulics, lights, and warning devices before every shift.
