    Customized Best Selling Hea...

    Improve warehouse, factory, logistics, and material-handling operations with the YG CPD Series Electric Forklift. Available in 1.5-ton, 2.5-ton, and 3-ton configurations, the range combines brushless AC drive motors, customizable lifting masts, solid or pneumatic tyre options, and lithium-ion or lead-acid battery systems.

    The forklifts are designed for lifting, transporting, loading, and stacking palletized materials across indoor floors, outdoor paved areas, warehouses, workshops, manufacturing facilities, and logistics centres.

    Each capacity and configuration should be listed separately with its exact battery voltage, battery capacity, lifting height, load centre, turning radius, wheelbase, travel speed, dimensions, weight, charger, tyres, and price.

    Key Features

    • 1.5-ton, 2.5-ton, and 3-ton standard models

    • Additional custom capacities from 1 to 5 tons

    • Fully electric drive system

    • Lithium-ion battery configuration

    • Optional lead-acid or traction battery

    • Brushless AC travel motor

    • Single-, two-, or three-stage mast options

    • Standard lifting height of approximately 3 m

    • Custom lifting heights available

    • Four-wheel or selected three-wheel configurations

    • Solid, pneumatic, polyurethane, or non-marking tyre options

    • Reinforced steel frame and mast

    • LED working lights

    • Operator seat with safety belt

    • Low-noise electric operation

    • Custom colours

    • CE certification, subject to model verification

    Product Specifications

    • Brand: YG, subject to final confirmation

    • Series: CPD Electric Forklift Series

    • Models: CPD-15, CPD-25, and CPD-30

    • Product Type: Counterbalanced Electric Forklift

    • Condition: New

    • Drive System: Fully Electric

    • Drive Type: Front-Wheel Drive

    • Rated Capacities: 1.5 Ton, 2.5 Ton, or 3 Ton

    • Additional Custom Capacities: Approximately 1–5 Tons

    • Standard Lifting Height: Approximately 3 m

    • Custom Lifting Height: Available

    • Mast Options: Single-Stage, Two-Stage, or Three-Stage

    • Fork Length: Listed as Approximately 1220 mm

    • Fork Width: Listed as Approximately 70 mm

    • Lowered Fork Height: Listed as Approximately 30 mm, subject to verification

    • Load Centre Options: Approximately 300, 400, 500, 600, 800, or 1200 mm

    • Battery Type: Lithium-Ion

    • Optional Battery Types: Lead-Acid or Traction Battery

    • Listed Battery Voltage: 60 V, capacity to be confirmed

    • Travel Motor: Brushless AC

    • Travel Motor Power: 5 kW, 8 kW, or 10 kW

    • Travel Speed: Listed as 30, unit and model applicability to be confirmed

    • Turning-Radius Options: Approximately 1950–2400 mm

    • Wheelbase Options: Approximately 1335–1760 mm

    • Wheel Configurations: Four-Wheel or Selected Three-Wheel Designs

    • Tyre Options: Solid, Pneumatic, Polyurethane, or Non-Marking

    • Listed Rear Tyre: 5.00-8 Solid Tyre

    • Terrain Options: Indoor Flooring, Outdoor Pavement, or Selected Rough-Terrain Configuration

    • Listed Gradeability: Above 30%, subject to testing

    • Frame Material: Reinforced Steel

    • Working Lights: LED

    • Operator Restraint: Seat Belt

    • Charging Time: Listed at Approximately 2.5 Hours for Selected Lithium Configuration

    • Controller: Confirm Manufacturer and Model Before Publishing

    • Certification: CE, subject to exact model documentation

    • Packing: Wooden Case or Export Packaging

    • Customization: Available

    • Warranty: Confirm Before Publishing

    • Country of Origin: Henan, China

    Available Models

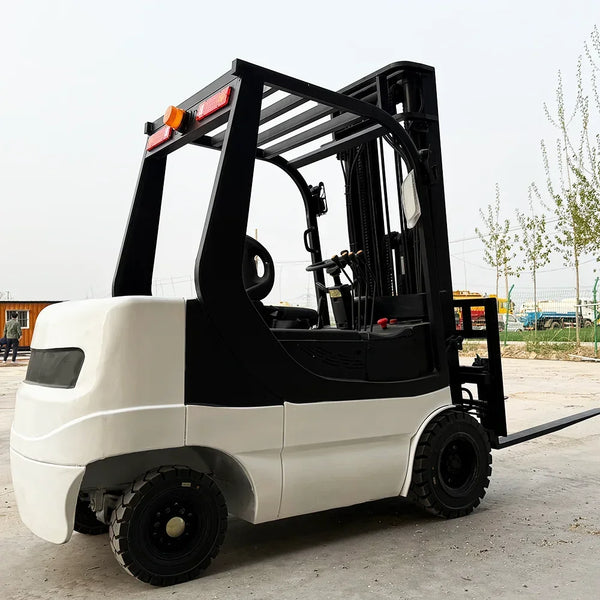

    CPD-15 Electric Forklift

    The CPD-15 is designed for lighter warehouse and industrial material-handling work.

    • Rated Capacity: Approximately 1500 kg

    • Standard Lift Height: Approximately 3 m

    • Travel Motor: Approximately 5 kW Brushless AC

    • Frame: Thickened Monolithic Stamped Construction

    • Rear Tyre: Listed as 5.00-8 Solid Tyre

    • Battery: Exact Voltage and Capacity to Be Confirmed

    • Load Centre: Confirm Before Publishing

    • Turning Radius: Confirm Before Publishing

    • Machine Weight: Confirm Before Publishing

    CPD-25 Electric Forklift

    The CPD-25 provides a higher lifting capacity for warehouses, production facilities, and loading operations.

    • Rated Capacity: Approximately 2500 kg

    • Standard Lift Height: Approximately 3 m

    • Travel Motor: Approximately 8 kW Brushless AC

    • Frame: Thickened Monolithic Stamped Construction

    • Rear Tyre: Listed as 5.00-8 Solid Tyre

    • Battery: Exact Voltage and Capacity to Be Confirmed

    • Load Centre: Confirm Before Publishing

    • Turning Radius: Confirm Before Publishing

    • Machine Weight: Confirm Before Publishing

    CPD-30 Electric Forklift

    The CPD-30 is the largest model included in the supplied comparison table.

    • Rated Capacity: Approximately 3000 kg

    • Standard Lift Height: Approximately 3 m

    • Travel Motor: Approximately 10 kW Brushless AC

    • Frame: Thickened Monolithic Stamped Construction

    • Rear Tyre: Listed as 5.00-8 Solid Tyre

    • Battery: Exact Voltage and Capacity to Be Confirmed

    • Load Centre: Confirm Before Publishing

    • Turning Radius: Confirm Before Publishing

    • Machine Weight: Confirm Before Publishing

    Capacity Clarification

    The general specifications also mention:

    • 1-ton forklift

    • 2-ton forklift

    • 5-ton electric forklift

    • 3-ton diesel farm forklift

    • 2.5-ton electric forklift

    • CPD16 small electric forklift

    These appear to refer to the supplier’s broader product range rather than one machine.

    The final listing should not combine electric and diesel forklifts in the same purchasable variant.

    Electric Drive System

    The CPD Series uses an all-electric power system.

    Potential operational benefits include:

    • Lower operating noise

    • No direct exhaust emissions during use

    • Reduced routine engine maintenance

    • Smooth acceleration

    • Precise low-speed movement

    • Suitability for many indoor environments

    • Lower energy consumption than comparable combustion models

    Actual operating efficiency depends on load, battery capacity, travel distance, lifting frequency, floor conditions, tyre type, and operator behaviour.

    Brushless AC Motors

    The listed configurations use brushless AC travel motors.

    Model-specific travel motor ratings include:

    • CPD-15: approximately 5 kW

    • CPD-25: approximately 8 kW

    • CPD-30: approximately 10 kW

    Before publication, also confirm:

    • Lift-motor power

    • Steering-motor power

    • Motor controller manufacturer

    • Motor protection rating

    • Continuous and peak ratings

    • Regenerative braking support

    Battery-System Options

    Available battery technologies may include:

    • Lithium-ion

    • Lead-acid

    • Traction battery

    Each battery type should be treated as a separate configuration.

    Lithium-Ion Battery

    Lithium-ion batteries may offer:

    • Faster charging

    • Lower maintenance

    • Reduced weight

    • Opportunity charging

    • Stable output voltage

    • Longer cycle life, depending on cell quality

    Confirm:

    • Battery chemistry

    • Voltage

    • Capacity in Ah

    • Stored energy in kWh

    • Battery-management system

    • Cycle-life rating

    • Charger power

    • Warranty

    Lead-Acid Battery

    Lead-acid batteries may provide:

    • Lower initial purchase cost

    • Familiar service requirements

    • Established replacement availability

    They may require:

    • Longer charging time

    • Ventilated charging areas

    • Regular maintenance

    • Water-level checks on flooded batteries

    • Battery-change equipment on larger models

    Battery-Voltage Clarification

    The supplied specification lists battery voltage as “60,” but the complete voltage and capacity format is missing.

    Before publication, confirm values such as:

    • 60V/100Ah

    • 60V/200Ah

    • 80V/300Ah

    • Another model-specific configuration

    Battery capacity directly affects runtime, charging time, machine weight, and price.

    Charging Time

    A charging time of approximately 2.5 hours is claimed for the lithium-battery configuration.

    Before publication, confirm:

    • Battery capacity

    • Charger output

    • Charging from 0% to 100% or another range

    • Maximum charging current

    • Required input voltage

    • Fast-charging limitations

    • Battery cooling requirements

    • Charging-temperature range

    Do not apply the 2.5-hour claim to lead-acid models.

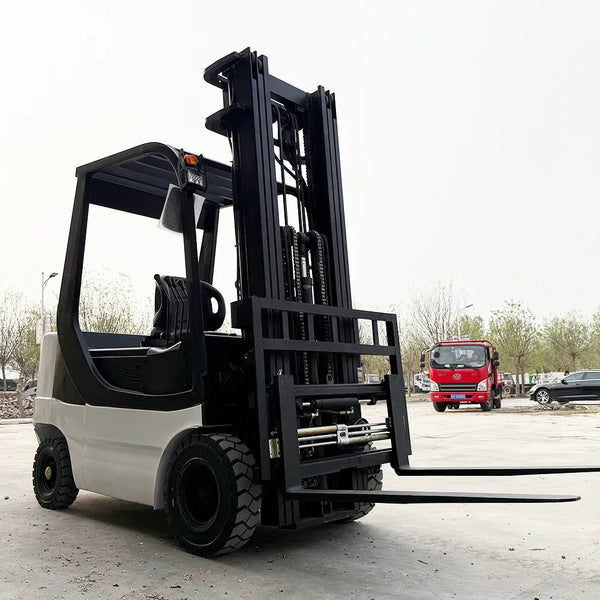

    Mast Options

    Available mast configurations include:

    • Single-stage mast

    • Two-stage mast

    • Three-stage mast

    The final specification should define:

    • Maximum fork height

    • Collapsed mast height

    • Free-lift height

    • Mast tilt angle

    • Overall raised height

    • Load-capacity reduction at increased heights

    • Attachment compatibility

    Standard and Custom Lifting Heights

    The comparison table lists a standard lifting height of approximately 3 m.

    Custom lift heights may be available, but increasing the mast height may affect:

    • Residual lifting capacity

    • Stability

    • Closed mast height

    • Overall machine weight

    • Turning behaviour

    • Required aisle width

    Every custom mast should have a verified load chart.

    Fork Dimensions

    The supplied values include:

    • Fork length: approximately 1220 mm

    • Fork width: approximately 70 mm

    • Lowered fork height: approximately 30 mm

    The 30 mm lowered height appears unusually low for a counterbalanced forklift and may belong to a pallet truck.

    Confirm for each model:

    • Fork length

    • Fork width

    • Fork thickness

    • Minimum fork spacing

    • Maximum fork spacing

    • Carriage class

    • Fork-tip height

    Load-Centre Options

    Several load-centre values are listed:

    • 300 mm

    • 400 mm

    • 500 mm

    • 600 mm

    • 800 mm

    • 1200 mm

    The rated lifting capacity changes when the load centre increases.

    Each model should state its standard rated capacity at a defined load centre, such as:

    • 1500 kg at 500 mm

    • 2500 kg at 500 mm

    • 3000 kg at 500 mm

    Custom long-load configurations require a separate capacity assessment.

    Turning-Radius Conflict

    Multiple turning-radius values are supplied:

    • 1950 mm

    • 2170 mm

    • 2240 mm

    • 2400 mm

    These likely correspond to different forklift models.

    The exact turning radius should be provided for each model to help determine:

    • Required aisle width

    • Warehouse suitability

    • Manoeuvrability

    • Rack-layout compatibility

    Wheelbase Options

    Listed wheelbase values range from approximately 1335 mm to 1760 mm.

    The correct value depends on:

    • Rated capacity

    • Three-wheel or four-wheel design

    • Battery compartment

    • Chassis length

    • Counterweight

    • Tyre configuration

    Do not combine all wheelbase values into one model specification.

    Travel-Speed Claim

    Travel speed is listed as 30 for both laden and unladen operation, but no unit is supplied.

    If the intended value is 30 km/h, this would be unusually high for many compact warehouse forklifts.

    Before publication, confirm:

    • Unit of measurement

    • Loaded speed

    • Unloaded speed

    • Indoor speed limit

    • Speed-control settings

    • Reverse speed

    • Acceleration modes

    Gradeability Claim

    The listing claims gradeability above 30%.

    Before publication, confirm:

    • Laden or unladen condition

    • Ramp length

    • Surface condition

    • Maximum sustainable speed

    • Battery state

    • Tyre type

    • Test standard

    High gradeability should not be treated as authorization to operate on unsafe slopes.

    Tyre Options

    Available tyre options include:

    • Solid tyres

    • Pneumatic tyres

    • Polyurethane tyres

    • Non-marking tyres

    Solid Tyres

    Suitable for:

    • Warehouses

    • Industrial yards

    • Puncture-prone environments

    • Low-maintenance operation

    Pneumatic Tyres

    May provide:

    • Improved ride comfort

    • Better traction on uneven surfaces

    • Greater shock absorption

    Non-Marking Tyres

    May be suitable for:

    • Food facilities

    • Retail warehouses

    • Clean production areas

    • Finished indoor floors

    The correct tyre size should be confirmed for every model.

    Terrain Suitability

    The listing references:

    • Indoor floors

    • Outdoor pavement

    • Off-road use

    • Rough terrain

    • All-terrain operation

    Standard CPD counterbalanced forklifts should not automatically be described as rough-terrain forklifts.

    True rough-terrain suitability may require:

    • Increased ground clearance

    • Larger pneumatic tyres

    • Differential lock

    • Higher traction

    • Reinforced axle

    • Weather-protected electrical components

    List rough-terrain models separately.

    Three-Wheel and Four-Wheel Options

    Both three-wheel and four-wheel configurations are mentioned.

    Three-wheel models may offer:

    • Smaller turning radius

    • Improved manoeuvrability

    • Better use in narrow aisles

    Four-wheel models may provide:

    • Greater stability

    • Higher-capacity options

    • Better outdoor performance

    Each chassis type should have a separate model specification.

    Frame and Mast Construction

    The forklifts use reinforced steel structures and thickened stamped body components.

    Before publication, confirm:

    • Steel grade

    • Mast-channel specification

    • Welding standard

    • Surface treatment

    • Paint thickness

    • Corrosion protection

    • Counterweight material

    Avoid broad claims such as “will not deform” unless supported by engineering data.

    Operator Area

    The listed operator features include:

    • Adjustable or cushioned seat

    • Safety belt

    • Large operating space

    • Thickened overhead guard

    • LED working lights

    Before publication, confirm:

    • Adjustable steering column

    • Suspension seat

    • Operator-presence sensor

    • Hand brake

    • Rear-view mirror

    • Horn

    • Reverse alarm

    • Blue safety light

    • Seat-switch interlock

    Lighting System

    LED working lights may improve visibility during:

    • Warehouse operation

    • Trailer loading

    • Night-time outdoor work

    • Dim industrial environments

    Confirm whether the standard package includes:

    • Front work lights

    • Rear lights

    • Brake lights

    • Warning beacon

    • Turn indicators

    • Reverse light

    Safety Equipment to Confirm

    Before publication, verify whether the selected forklift includes:

    • Operator safety belt

    • Overhead guard

    • Emergency power disconnect

    • Parking brake

    • Horn

    • Reverse alarm

    • Speed limiting

    • Overload protection

    • Mast safety valve

    • Battery-management protection

    • Anti-rollback function

    • Operator-presence system

    • Fire extinguisher bracket

    Only installed and verified features should be advertised.

    CE Certification

    The product is listed with CE certification.

    Before publication, verify:

    • Declaration of Conformity

    • Exact model numbers

    • Applicable machinery standards

    • Electrical-system documentation

    • Battery and charger coverage

    • Final branding on certificates

    • Technical-file availability

    A general supplier certificate should not be applied automatically to every customized model.

    Suitable Applications

    The YG CPD Series may be suitable for:

    • Warehouses

    • Distribution centres

    • Manufacturing facilities

    • Loading docks

    • Logistics operations

    • Workshops

    • Indoor material handling

    • Outdoor paved yards

    • Pallet stacking

    • Truck and container loading

    • Retail distribution

    • Industrial production areas

    The selected model should match the required load, lift height, load centre, aisle width, floor condition, duty cycle, and operating environment.

    Customization Options

    Available custom options may include:

    • Rated capacity

    • Lift height

    • Mast stage

    • Fork dimensions

    • Battery chemistry

    • Battery voltage and capacity

    • Charger

    • Tyre type

    • Three-wheel or four-wheel chassis

    • Cabin or weather cover

    • Fork positioner

    • Side shift

    • Warning lights

    • Camera system

    • Speed limits

    • Paint colour

    • Branding

    Each customized forklift should receive an approved specification, load chart, and final quotation.

    Package Contents

    Depending on the selected configuration, the shipment may include:

    • Electric forklift

    • Lithium-ion or lead-acid battery

    • Battery charger

    • Fork arms

    • Operator seat and restraint

    • LED working lights

    • Tool kit

    • User manual

    • Maintenance manual

    • Parts catalogue

    • CE documentation

    • Wooden or export packaging

    Only verified included items should appear on the final product page.

    Warranty and Parts Support

    The warranty period is not clearly stated in the supplied data.

    Before publication, confirm coverage for:

    • Drive motor

    • Lift motor

    • Controller

    • Battery

    • Charger

    • Mast

    • Hydraulic system

    • Steering system

    • Axles

    • Tyres

    • Electrical components

    • Labour

    • Replacement parts

    • Shipping costs

    Do not promise free replacement parts without clearly defined warranty terms.

    Important Safety Information

    Only trained and authorized operators should use the forklift.

    Never exceed the rated capacity or the capacity shown on the machine’s load chart. The rated capacity may decrease with higher mast positions, longer forks, attachments, or increased load centres.

    Inspect the forks, mast, chains, tyres, brakes, steering, battery, hydraulic system, lights, warning devices, and safety equipment before each shift.

    Use the correct charger for the installed battery. Lead-acid batteries require proper ventilation during charging, while lithium systems require a compatible battery-management system and approved charging equipment.

    Operate only on surfaces and gradients approved for the selected model. Keep pedestrians away from the operating area and lower the forks when the forklift is parked.

    Translation missing: en.general.search.loading
