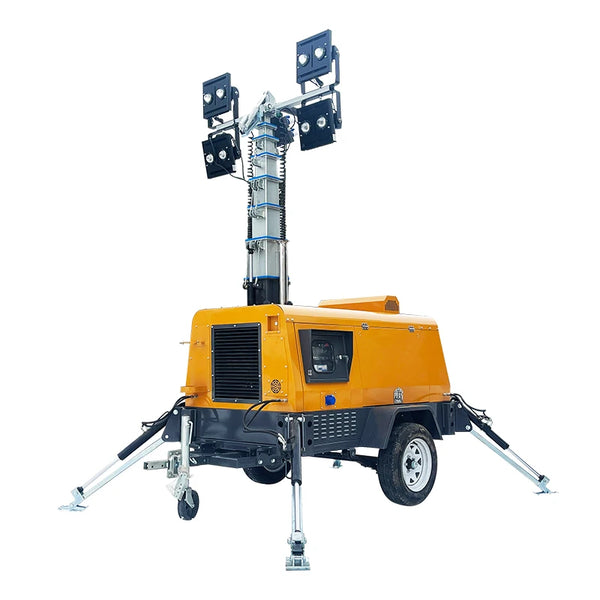

9m Telescopic Hydraulic Lifting Led Light Tower Trailer Mobile Lighting Tower

Provide high-output illumination for roadworks, construction projects, municipal maintenance, emergency operations, and remote worksites with the Storike 4HVP1600 Mobile LED Light Tower.

This heavy-duty lighting system features four adjustable 1000W LED lamp heads mounted on a three-section mast that extends to a maximum height of approximately 9 metres. Its 360-degree lighting arrangement helps illuminate large outdoor work areas where permanent electricity or fixed lighting is unavailable.

A 38-litre fuel tank supports extended operation, while the stated continuous working time of up to 25 hours can reduce the need for frequent refuelling. The dimmable lighting system allows operators to adjust brightness according to the working environment and available power.

Key Features

• Mobile LED lighting tower

• Four high-output 1000W LED lamp heads

• Total installed lighting power of 4000W

• Adjustable 360-degree lighting coverage

• Three-section retractable mast

• Maximum mast height of approximately 9 metres

• Dimmable lighting system

• Up to 25 hours of continuous operation

• 38-litre fuel tank

• IP55-rated lighting protection

• Durable steel and aluminum-alloy construction

• Suitable for construction and municipal work

• Designed for nighttime and remote operations

• One-year warranty

Product Specifications

• Brand: Storike

• Model: 4HVP1600

• Product Type: Mobile LED Light Tower

• Light Source: LED

• Number of Lamp Heads: 4

• Power per Lamp: 1000W

• Total Lighting Power: 4000W

• Claimed Luminous Flux: Up to 440,000 Lumens, subject to verification

• Luminous Efficiency: Approximately 50 lm/W

• Beam Coverage: 360 Degrees

• Colour Temperature: 2700K, subject to confirmation

• Colour Rendering Index: Ra 70

• Dimming Support: Yes

• IP Rating: IP55

• Maximum Mast Height: 9 Metres

• Number of Mast Sections: 3

• Fuel Tank Capacity: 38 Litres

• Continuous Working Time: Up to 25 Hours

• Input Voltage: AC 220 V ±10%, subject to configuration

• Power Supply: Generator, AC, or DC System, subject to confirmation

• Main Materials: Steel, Metal, and Aluminum Alloy

• Operating Life: Approximately 10,000 Hours

• Wind Resistance: Confirm Rating and Unit

• Colour: White

• Warranty: 1 Year

• Country of Origin: Shandong, China

Lighting Performance

The four LED lamp heads can be directed toward different sections of the work area, helping provide broad panoramic illumination.

The elevated 9-metre mast helps reduce shadows caused by vehicles, machinery, construction materials, and other obstructions.

The lighting system may be suitable for:

• Wide-area work lighting

• Nighttime road maintenance

• Construction-site illumination

• Emergency and rescue operations

• Outdoor industrial work

• Municipal maintenance

• Remote infrastructure projects

• Security and temporary area lighting

The exact total lumen output should be confirmed through the manufacturer’s photometric test report before it is used as a guaranteed specification.

Adjustable Mast

The three-section mast can extend to a maximum height of approximately 9 metres. This allows the lamp heads to distribute light over a larger area than ground-level lighting equipment.

Before extending the mast:

• Position the tower on stable and level ground

• Apply the parking brake

• Deploy all stabilising supports

• Check for overhead electrical cables

• Confirm safe wind conditions

• Secure all lamp heads and mast sections

Do not raise or operate the mast during severe weather or winds exceeding the manufacturer’s approved limit.

Extended Operation

The 38-litre fuel tank is designed to support long-duration lighting work. The stated continuous operating time is up to approximately 25 hours.

Actual runtime may vary according to:

• Generator load

• Brightness setting

• Number of lamps operating

• Engine efficiency

• Fuel quality

• Environmental temperature

• Maintenance condition

Suitable Applications

The Storike 4HVP1600 can be used for:

• Highway and road construction

• Municipal engineering

• Building projects

• Railway maintenance

• Mining operations

• Airports and large outdoor facilities

• Emergency response areas

• Disaster-relief operations

• Outdoor events

• Industrial maintenance

• Remote nighttime work

IP55 Protection

The IP55-rated lighting components are designed to resist dust exposure and low-pressure water jets from different directions.

IP55 does not mean the equipment is waterproof under submersion or flooding. Follow the manufacturer’s instructions during heavy rain and extreme weather.

Important Safety Information

Operate fuel-powered light towers outdoors or in properly ventilated locations. Engine exhaust may contain carbon monoxide and other harmful gases.

Keep the mast away from overhead power lines. Stabilise the trailer or mobile base before raising the mast, and do not move the unit while the mast is extended.

Electrical installation, generator maintenance, towing, refuelling, and mast operation should be completed according to the manufacturer’s instructions and applicable local regulations.
