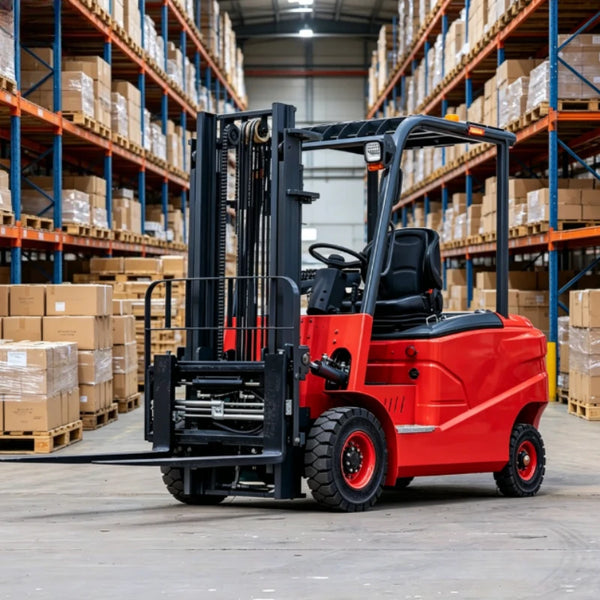

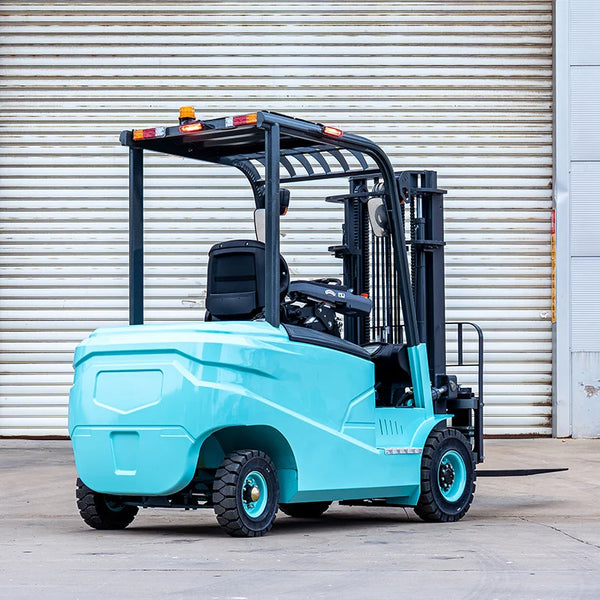

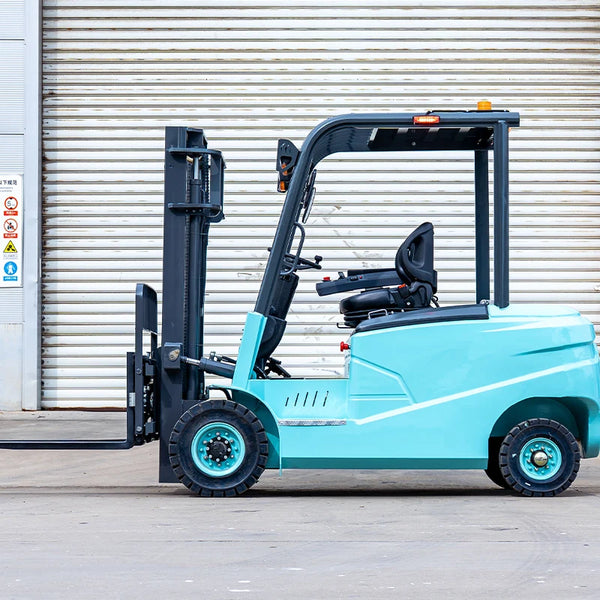

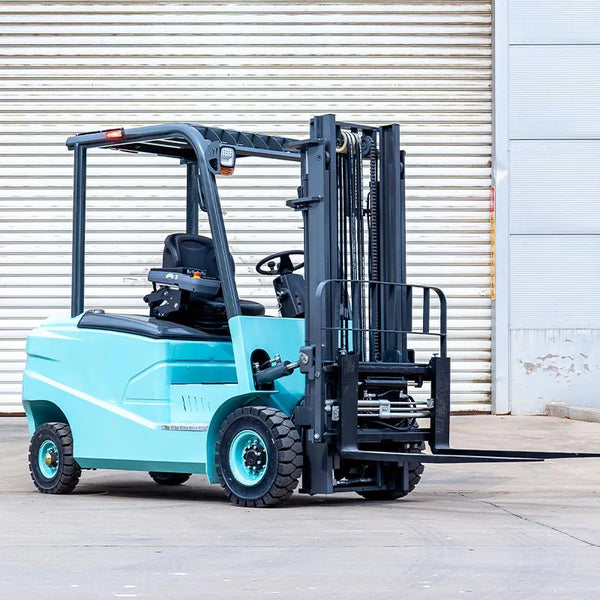

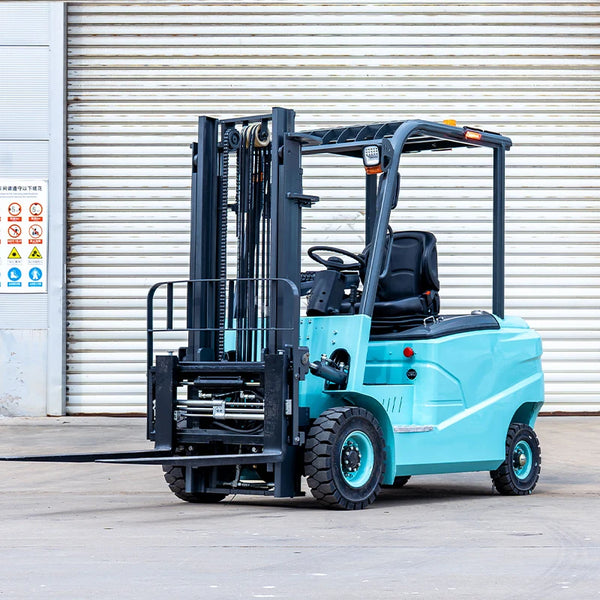

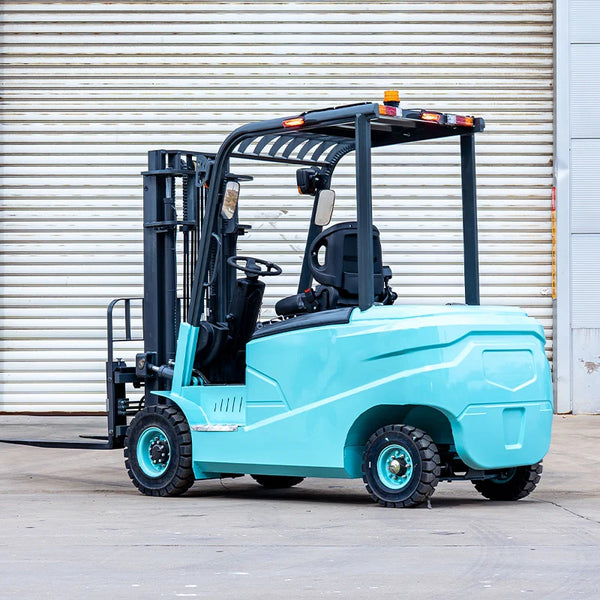

3 Ton 3.5 Ton 4Ton Fully Electric Forklift With Lead Acid Battery Lifting Stacker For Supermarket Goods Loading Unloading

Improve warehouse transport, pallet stacking, loading, and industrial material handling with the YG 3.5-Ton Electric Counterbalance Forklift. Designed for seated operation, this electric forklift combines a rechargeable lithium battery system, two-stage mast, solid tyres, and a hydraulic side shifter for controlled load positioning.

The compact electric drivetrain supports quieter operation and produces no direct exhaust emissions at the point of use. It may be suitable for warehouses, manufacturing facilities, building-material operations, retail distribution, farms, and selected outdoor paved areas.

The exact rated capacity, battery specifications, lift height, dimensions, weight, and terrain capability must be confirmed before publication because the supplied information includes both 3.5-ton and 5-ton configurations.

Key Features

• Electric counterbalance forklift

• 3,500 kg reference lifting capacity

• Optional 5,000 kg configuration

• Rechargeable lithium battery

• 60V power system, subject to confirmation

• Seated operator position

• Two-stage mast

• Hydraulic side shifter

• Solid industrial tyres

• Rear-wheel-drive configuration

• Approximately 14 km/h unloaded travel speed

• Custom fork dimensions available

• Custom colour options

• Suitable for warehouses and industrial facilities

• CE and RoHS documentation, subject to verification

Product Specifications

• Brand: YG, subject to confirmation

• Model: Confirm Before Publishing

• Product Type: Electric Counterbalance Forklift

• Condition: New

• Operating Mode: Seated Operation

• Reference Rated Capacity: 3,500 kg

• Optional Capacity: Up to 5,000 kg, subject to separate model confirmation

• Power System: Rechargeable Electric Battery

• Battery Type: Lithium-Ion

• System Voltage: Listed as 60V, subject to confirmation

• Battery Capacity: Confirm in Ah and kWh

• Charging Time: Approximately 4–6 Hours, subject to battery configuration

• Operating Time: Confirm Before Publishing

• Drive Type: Rear-Wheel Drive

• Mast Type: Two-Stage Mast

• Maximum Lift Height: Listed as up to 3,500 mm, subject to confirmation

• Load Centre: Confirm Before Publishing

• Fork Length: Approximately 1,220 mm or Custom

• Fork Width: 100 mm, 125 mm, or Custom

• Hydraulic Side Shifter: Included

• Tyre Type: Solid Industrial Tyres

• Wheelbase: Approximately 1,700 mm

• Turning Radius: Listed as 2,400 mm, subject to confirmation

• Alternative Turning-Radius Claim: 1,800 mm, not verified

• Unloaded Travel Speed: Approximately 14 km/h

• Gradeability: Confirm in Degrees or Percentage

• Vehicle Weight: Confirm Before Publishing

• Terrain Suitability: Indoor Floors and Suitable Outdoor Paved Surfaces

• Colour: Customizable

• Certification: CE and RoHS, subject to valid model documents

• Warranty: Confirm Before Publishing

• Country of Origin: Henan, China

Lifting Capacity

The reference configuration is described as a 3.5-ton forklift, while a 5-ton version is also mentioned.

These should be sold as separate models because capacity affects:

• Chassis construction

• Counterweight size

• Mast design

• Battery size

• Motor power

• Braking system

• Vehicle weight

• Turning radius

• Final price

The final forklift data plate must show the rated capacity at the specified load centre and lift height.

Lithium Battery System

The forklift is described as using a 60V lithium-ion battery. Before publication, confirm:

• Nominal battery voltage

• Battery capacity in Ah

• Stored energy in kWh

• Battery chemistry

• Battery-management system

• Charger input voltage

• Charger output voltage and current

• Typical charging time

• Expected working time

• Battery cycle-life rating

• Battery warranty

• Battery heating or cooling system

Do not publish operating-time or battery-life claims without verified test data.

Two-Stage Mast

The standard two-stage mast is designed for routine loading, stacking, and pallet-handling applications.

Confirm:

• Maximum fork height

• Lowered mast height

• Free-lift height

• Overall raised height

• Mast tilt angles

• Lift and lowering speeds

• Residual capacity at maximum height

Different lift-height configurations should be listed separately.

Hydraulic Side Shifter

The hydraulic side shifter allows the operator to move the forks horizontally without repositioning the entire forklift.

It may improve alignment during:

• Truck loading

• Rack placement

• Container handling

• Pallet positioning

• Warehouse stacking

The residual lifting capacity with the side shifter installed should be shown on the final capacity plate.

Fork Options

The listed fork options include:

• 1,220 mm standard length

• 100 mm width

• 125 mm width

• Custom dimensions

Longer or wider forks may change load distribution and reduce the forklift’s safe lifting capacity. Only manufacturer-approved fork configurations should be used.

Solid Tyres

Solid industrial tyres are designed to resist punctures and reduce tyre-maintenance requirements.

They may be suitable for:

• Warehouse flooring

• Manufacturing facilities

• Loading bays

• Smooth outdoor pavement

• Industrial yards

The forklift should not be advertised for rough terrain unless ground clearance, tyres, axle design, suspension, and stability have been verified for that use.

Travel and Manoeuvrability

The supplied specifications list:

• Unloaded travel speed of approximately 14 km/h

• Wheelbase of approximately 1,700 mm

• Turning radius of approximately 2,400 mm

A separate marketing section claims a turning radius of 1,800 mm. Use only the verified technical figure.

Suitable Applications

The YG electric forklift may be suitable for:

• Warehouses

• Manufacturing plants

• Building-material stores

• Food and beverage facilities

• Retail distribution centres

• Farms

• Energy facilities

• Loading bays

• Advertising production facilities

• Construction-material handling

• Indoor logistics operations

• Outdoor paved yards

Wet, rough, dusty, hazardous, or food-grade environments may require additional equipment or certification.

Customization Options

Available customization may include:

• Body colour

• Company logo

• Battery capacity

• Charger specification

• Lift height

• Fork dimensions

• Tyre type

• Operator cabin

• Weather cover

• Mirrors

• Warning beacon

• Reversing alarm

• Lighting

• Attachments

• Control panel

Each customized configuration should receive its own accurate specification sheet and final price.

Charging and Operation

Use only the charger approved for the supplied battery. Charging requirements should specify:

• Mains input voltage

• Charger output voltage

• Maximum charging current

• Charging connector

• Ventilation requirements

• Indoor charging conditions

• Emergency isolation procedure

Do not charge the forklift near open flames, standing water, or combustible materials.

Delivery and Commissioning

Professional delivery and commissioning are recommended. The inspection should include:

• Battery and charger verification

• Hydraulic-fluid checks

• Mast and chain inspection

• Fork alignment

• Steering and brake testing

• Side-shifter operation

• Tyre inspection

• Lighting and alarm checks

• Capacity-plate verification

• Operator training

Important Safety Information

Only trained and authorized personnel should operate the forklift. Never exceed the rated load shown on the final capacity plate.

Keep loads low while travelling, avoid sudden turns, and do not operate on unverified slopes or rough terrain.

Inspect the forks, mast, chains, hydraulics, tyres, battery, brakes, steering, lights, and warning devices before every shift.
