1.8 Ton Lithium Battery Electric Forklift 4-Wheel with 2.5m/6m Height Option Special Configuration for Cold Storage Customized

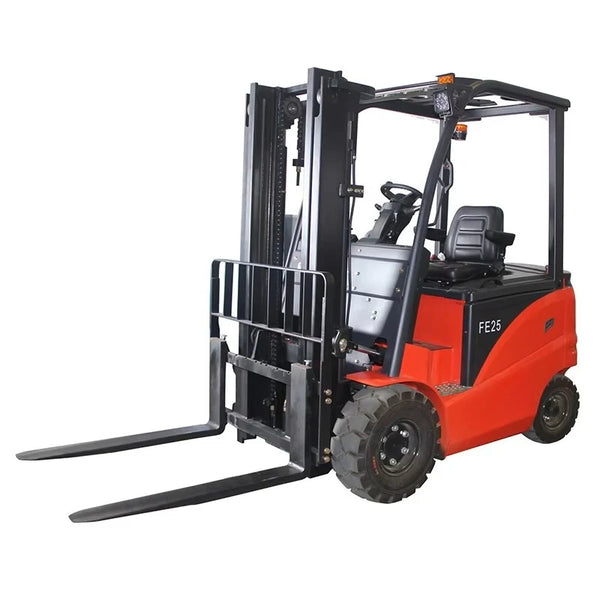

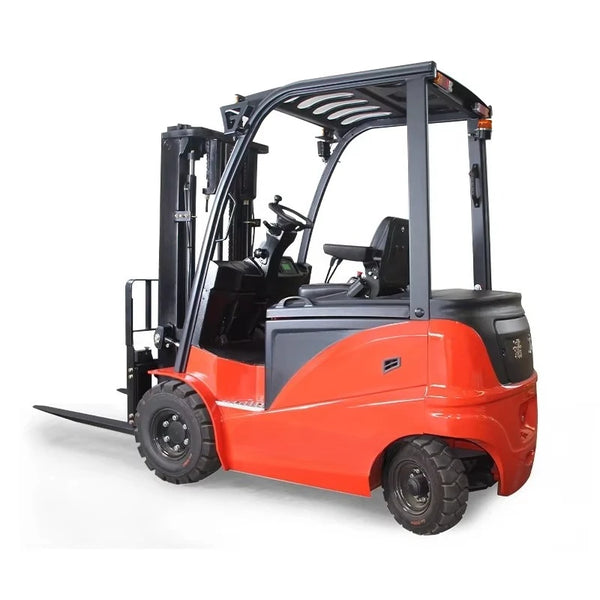

Improve pallet handling, loading, warehouse transport, and industrial material movement with the YG CPD-35 Electric Counterbalance Forklift. Designed for seated operation, this battery-powered forklift provides a rated lifting capacity of 3,500 kg and a standard lift height of approximately 3 metres.

Its lithium-ion power system supports low-emission indoor operation and outdoor use on suitable paved surfaces. A two-stage mast is supplied as the standard configuration, while a three-stage mast, side shifter, extended forks, custom colours, and other equipment may be available as optional upgrades.

The exact battery voltage, capacity, charger specification, operating time, mast dimensions, and final configuration should be confirmed before publication.

Key Features

• 3,500 kg rated lifting capacity

• Battery-powered counterbalance forklift

• Lithium-ion battery system

• Seated operator configuration

• Standard two-stage mast

• Optional three-stage mast

• Approximately 3,000 mm standard lift height

• Optional side-shift attachment

• Pneumatic tyres

• Indoor and outdoor paved-surface operation

• Adjustable fork-length options

• Hydraulic service and parking brakes

• Custom colour and logo options

• Video technical support

• Spare-parts support

• One-year warranty

Product Specifications

• Brand: YG, subject to confirmation

• Model: CPD-35

• Product Type: Electric Counterbalance Forklift

• Condition: New

• Rated Lifting Capacity: 3,500 kg

• Load Centre: 500 mm

• Power Source: Rechargeable Battery

• Battery Type: Lithium-Ion

• Battery Voltage: Confirm Before Publishing

• Battery Capacity: Listed as 300Ah, subject to confirmation

• Alternative Battery Reference: 150A, specification requires clarification

• Charging Time: Approximately 4–5 Hours

• Operating Time per Charge: Confirm Before Publishing

• Operating Mode: Seated

• Drive Configuration: Confirm Front-Wheel-Drive Specification

• Standard Mast: Two-Stage Mast

• Optional Mast: Three-Stage Mast

• Standard Lift Height: Approximately 3,000 mm

• Maximum Lift Height: Customizable

• Mast Tilt: 6° Forward / 10° Rearward

• Standard Fork Length: 920 mm

• Alternative Fork Lengths: Approximately 1,070–1,520 mm

• Fork Width: 100 mm

• Fork Thickness: 35 mm

• Standard Fork Dimensions: 920 × 100 × 35 mm

• Wheelbase: Approximately 1,360 mm

• Turning Radius: Approximately 1,820 mm

• Tyre Type: Pneumatic

• Loaded Travel Speed: Approximately 13 km/h

• Unloaded Travel Speed: Approximately 15 km/h

• Service Brake: Hydraulic Oil Brake

• Parking Brake: Handbrake

• Lift Cylinders: Reinforced Dual Hydraulic Cylinders

• Optional Attachment: Side Shifter

• Operating Surfaces: Indoor Floors and Outdoor Paved Areas

• Self-Weight: Approximately 3,260 kg

• Warranty: 1 Year

• Country of Origin: China

3.5-Ton Lifting Capacity

The CPD-35 is designed to lift loads up to 3,500 kg at a listed load centre of 500 mm.

Actual safe capacity may be reduced by:

• Greater load-centre distance

• Increased lift height

• Extended forks

• Side-shift attachment

• Non-standard mast

• Uneven load distribution

• Slopes or unsuitable ground conditions

The forklift’s data plate should show the final rated capacity for the exact mast and attachment configuration.

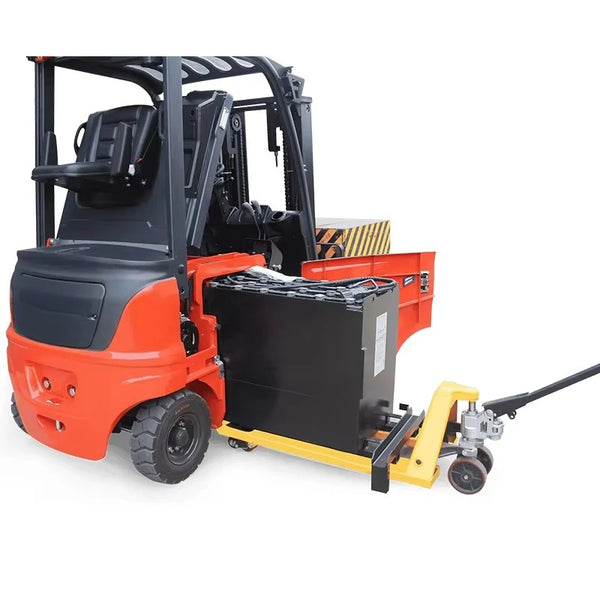

Lithium-Ion Power System

The lithium-ion battery system is designed for rechargeable electric operation without direct exhaust emissions at the point of use.

Before publishing, confirm:

• Nominal battery voltage

• Battery capacity in Ah

• Stored energy in kWh

• Battery chemistry

• Charger input voltage

• Charger output voltage and current

• Charging connector

• Typical operating time

• Battery cycle-life rating

• Battery-management-system protections

• Battery warranty

The listed “300AH/150A” field is incomplete and should not be used as the final battery specification.

Mast Options

Two-Stage Mast

The standard two-stage mast is suitable for general loading, unloading, stacking, and warehouse operations.

Confirm:

• Maximum fork height

• Mast lowered height

• Free-lift height

• Overall raised height

• Visibility configuration

Three-Stage Mast

An optional three-stage mast may provide greater lifting height while maintaining a lower collapsed mast profile.

Each mast option should be listed separately with its dimensions and revised capacity chart.

Fork Options

The standard forks measure approximately:

• 920 mm long

• 100 mm wide

• 35 mm thick

Longer fork options between approximately 1,070 mm and 1,520 mm may be available.

Extended forks can affect load distribution and remaining lifting capacity. Use only a configuration approved by the manufacturer.

Optional Side Shifter

The optional side shifter allows the operator to move the forks horizontally without repositioning the entire forklift.

This can improve pallet alignment during:

• Truck loading

• Rack placement

• Container handling

• Warehouse stacking

• Narrow positioning tasks

The residual lifting capacity with the side shifter installed should be confirmed.

Travel and Manoeuvrability

The listed performance includes:

• Loaded travel speed of approximately 13 km/h

• Unloaded travel speed of approximately 15 km/h

• Wheelbase of approximately 1,360 mm

• Turning radius of approximately 1,820 mm

The claim that the forklift can turn in place should be removed unless the exact steering system supports zero-radius rotation.

Pneumatic Tyres

Pneumatic tyres may provide improved ride comfort and traction on suitable outdoor paved surfaces.

Confirm whether the tyres are:

• Air-filled pneumatic

• Solid pneumatic

• Non-marking

• Standard industrial tread

• Suitable for indoor floors

Tyre selection should match the operating environment.

Braking System

The forklift is described as using:

• Hydraulic service brakes

• Mechanical hand-operated parking brake

Before publication, confirm:

• Front and rear brake arrangement

• Regenerative braking capability

• Emergency brake system

• Parking-brake warning

• Brake maintenance intervals

Suitable Applications

The YG CPD-35 may be suitable for:

• Warehouses

• Manufacturing plants

• Construction-material facilities

• Farms

• Hotels

• Retail distribution

• Food and beverage operations

• Machinery-repair facilities

• Energy and mining operations

• Loading bays

• Logistics centres

• Outdoor paved yards

Food, hazardous, or specialized environments may require additional certification or equipment.

Customization Options

Available customization may include:

• Body colour

• Company logo

• Mast height

• Two-stage or three-stage mast

• Fork length

• Side shifter

• Tyre type

• Battery capacity

• Charger type

• Warning lights

• Mirrors

• Operator cabin

• Weather protection

Only confirmed options should appear in the final purchasable configuration.

After-Sales Support

The supplier lists:

• Video technical support

• Spare-parts support

• Remote troubleshooting

• One-year warranty

Before publishing, confirm the warranty coverage, service location, labour terms, battery coverage, and replacement-parts availability.

Delivery and Commissioning

The forklift may require professional unloading and commissioning. Typical steps include:

• Battery inspection

• Charger compatibility check

• Hydraulic-fluid inspection

• Mast and chain inspection

• Brake testing

• Steering inspection

• Tyre-pressure check

• Safety-device testing

• Capacity-plate verification

• Operator training

Important Safety Information

Only trained and authorized operators should use the forklift. Never exceed the rated capacity shown on the final data plate.

Inspect the forks, mast, chains, tyres, brakes, battery, hydraulics, warning systems, and steering before each shift.

Keep personnel away from raised loads and never carry passengers unless an approved passenger seat is installed.
