052848v60v72v universal remote gasoline generator electric two-wheel range extender battery car three-wheel small

Extend the operating range of compatible electric bicycles, tricycles, and small electric vehicles with the ZQ1000 Petrol-Powered DC Range Extender. The unit combines a compact four-stroke gasoline engine with an adjustable DC generator output designed to provide supplementary charging power while travelling or operating away from a mains charging point.

Its adjustable 1–12A output and listed 48–84V compatibility make it suitable for several electric-vehicle voltage systems, subject to correct battery, controller, connector, and charging-profile compatibility.

This product must be professionally matched and installed. Incorrect voltage, polarity, grounding, ventilation, or charging configuration may damage the vehicle or create a serious safety risk.

Key Features

• Petrol-powered DC electric-vehicle range extender

• 700W rated output

• Up to 1000W maximum output

• Adjustable 1–12A charging current

• Supports listed 48V, 60V, 72V, and 84V systems

• Custom lower-voltage options may be available

• Compact 139F four-stroke engine

• Electric-start system

• Two-litre fuel tank

• Pin-style cable connector

• Suitable for selected electric two-, three-, and four-wheel vehicles

• Compact approximately 8 kg design

• Standard 1.2-metre output cable

Product Specifications

• Brand: Confirm Before Publishing

• Model: ZQ1000

• Product Type: Petrol-Powered DC Electric-Vehicle Range Extender

• Engine Model: 139F

• Engine Type: Four-Stroke Petrol Engine

• Starting System: Electric Start

• Output Type: Direct Current

• Rated Output Power: 700W

• Maximum Output Power: 1000W

• Adjustable Output Current: 1–12A

• Standard Voltage Compatibility: 48V, 60V, 72V, or 84V

• Optional Voltage Configurations: 12V, 24V, or 36V, subject to confirmation

• Fuel Type: Unleaded Petrol

• Recommended Fuel Grade: 92–97 RON, subject to regional fuel specifications

• Fuel-Tank Capacity: Approximately 2 Litres

• Recommended Engine Oil: SAE 10W-40

• Cold-Weather Oil Option: SAE 5W-30

• Listed Operating Autonomy: More Than 2 Hours, subject to load

• Cable Length: Approximately 1.2 Metres

• Connector Type: Pin-Style Connector

• Optional Extension Cable: Approximately 1.2 Metres

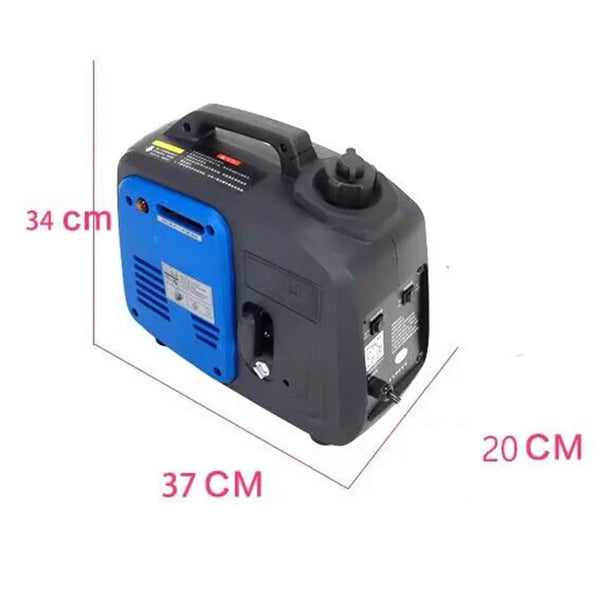

• Product Dimensions: Approximately 37 × 20 × 34 cm

• Net Weight: Approximately 8 kg

• Country of Origin: China

Compatible Vehicle Types

The supplier lists the following approximate compatibility limits:

• Two-Wheel Electric Vehicles: Motors up to 2500W

• Three-Wheel Electric Vehicles: Motors up to 1500W

• Four-Wheel Small Electric Vehicles: Motors up to 1500W

Motor wattage alone does not determine compatibility. The following must also match:

• Battery nominal voltage

• Maximum charging voltage

• Battery chemistry

• Battery-management system

• Charging-current limit

• Connector design

• Connector polarity

• Vehicle-controller requirements

• Electrical grounding and isolation

Adjustable DC Output

The generator provides an adjustable current range of approximately 1–12A. Output current should be set according to the battery manufacturer’s approved charging specification.

Using excessive charging current may cause:

• Battery overheating

• Battery-management-system shutdown

• Wiring damage

• Connector overheating

• Reduced battery life

• Fire or electrical hazards

The output should not be connected directly until the voltage, polarity, charging profile, and current limit have been verified.

Voltage Options

The ZQ1000 is described as supporting common electric-vehicle systems including:

• 48V

• 60V

• 72V

• 84V

Custom versions may also be available for:

• 12V

• 24V

• 36V

Each voltage option should be sold as a separate clearly labelled configuration. Users should not assume one unit automatically supports every voltage unless this is confirmed by the manufacturer.

Four-Stroke Petrol Engine

The compact 139F engine uses a four-stroke design. Engine oil and petrol must be filled separately.

Recommended maintenance may include:

• Engine-oil checks

• Scheduled oil replacement

• Spark-plug inspection

• Air-filter cleaning

• Fuel-line inspection

• Exhaust-system inspection

• Fastener checks

• Electrical-connector inspection

Follow the manufacturer’s exact maintenance schedule.

Fuel Consumption

The supplier reports a test using approximately 2.1 litres of petrol with a 60V 800W electric vehicle. It also claims a maximum distance above 200 km and approximately one litre per 100 km.

These results should not be treated as guaranteed performance. Actual fuel consumption and added range depend on:

• Vehicle weight

• Passenger and cargo load

• Battery condition

• Motor efficiency

• Terrain

• Riding speed

• Wind

• Tyre pressure

• Charging current

• Generator operating time

• Traffic conditions

• Ambient temperature

Only verified test results with clearly stated conditions should appear in advertising.

Recommended Operating Method

The supplier suggests operating the range extender while the vehicle battery still has approximately half of its charge remaining.

Before using this method, confirm that the vehicle manufacturer permits simultaneous charging and driving. Some battery-management systems or vehicle controllers may not support charging while the vehicle is moving.

Cable and Connector

The standard cable length is approximately 1.2 metres and is described as using a pin-style connector.

Before installation, verify:

• Positive and negative polarity

• Connector current rating

• Locking mechanism

• Cable gauge

• Heat resistance

• Fuse requirement

• Waterproof rating

• Strain relief

• Vehicle-side connector compatibility

An optional extension cable may be available, but excessive cable length can increase voltage drop and heat.

Installation Requirements

Installation should be completed by a qualified electric-vehicle technician or electrical professional.

A safe installation may require:

• Secure vibration-resistant mounting

• Heat shielding

• Exhaust routing

• Fuel-system protection

• Correct wiring gauge

• Fuses or circuit breakers

• Emergency isolation switch

• Waterproof connectors

• Ventilation

• Protection from moving parts

• Separation from passengers and cargo

Do not install or operate the generator inside an enclosed passenger compartment.

Suitable Applications

The ZQ1000 may be suitable for compatible:

• Electric bicycles

• Electric scooters

• Electric cargo tricycles

• Small electric utility vehicles

• Farm vehicles

• Mobility and delivery vehicles

• Remote-area electric transport

Compatibility must be confirmed for each vehicle before purchase or installation.

Package Contents

The standard package may include:

• ZQ1000 petrol DC range extender

• Approximately 1.2-metre output cable

• Connector assembly

• Basic mounting hardware

• User instructions

Confirm whether the following are included:

• Starter battery

• Fuel hose

• Exhaust components

• Fuse

• Extension cable

• Mounting frame

• Remote-start control

• Charging controller

Certifications

The supplier mentions EPA, FCC, GMP, and TGA. These certifications do not all typically apply to the same type of generator product.

Only certifications supported by valid documentation for the exact ZQ1000 model should be published.

Important Safety Information

This product burns petrol and produces carbon monoxide, hot exhaust gases, vibration, noise, and electrical output.

Operate it only outdoors in a well-ventilated location. Keep exhaust away from passengers, windows, doors, and air intakes.

Do not refuel while the engine is running or hot. Keep fuel away from sparks, flames, batteries, controllers, and electrical connections.

Professional installation and compatibility testing are strongly recommended before use.
