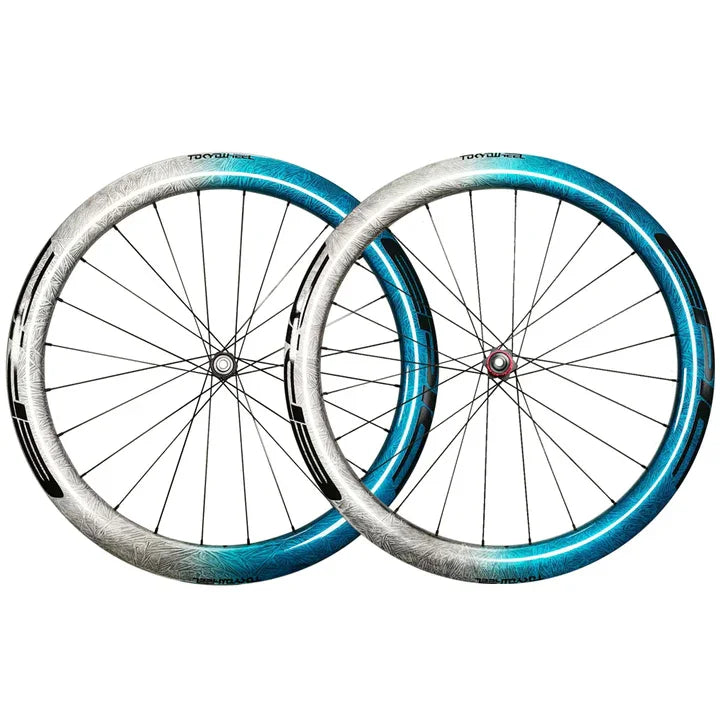

EPIC 50 Disc Brake Ice Crack Road Bicycle Carbon Fiber Wheel Set
EPIC 50 Disc Brake Ice Crack Road Bicycle Carbon Fiber Wheel Set

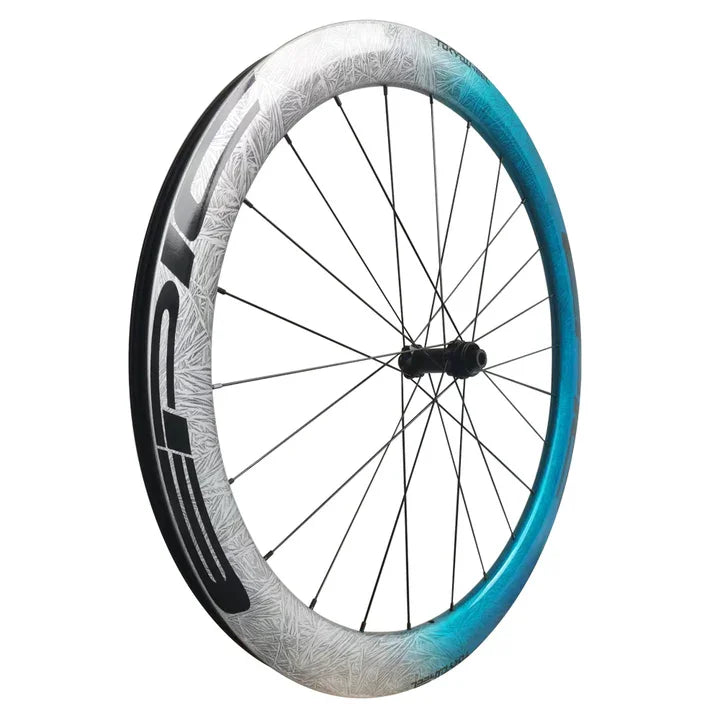

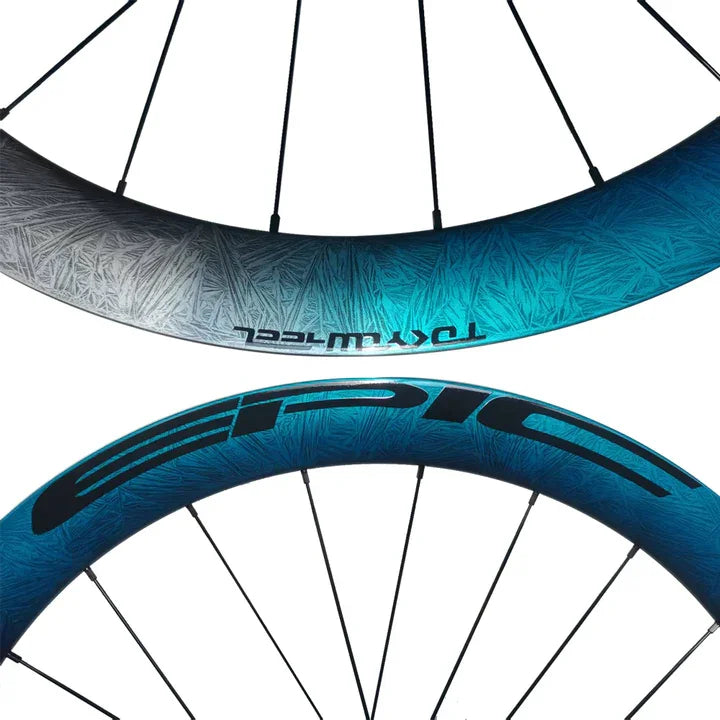

Silver to Blue Gradient ICE CRACK Finish
The wheel rims feature a striking silver-to-blue gradient finish, layered with intricate ice-crack textures that mimic frost spreading across a frozen surface. The metallic sheen shifts dynamically under light, creating a mesmerizing interplay between cool blue hues and shimmering silver highlights. Delicate crack-like patterns add depth and a touch of rugged elegance, evoking the raw beauty of glacial fissures—perfect for a bike that blends futuristic style with nature-inspired detailing.
Wider 28mm Outer Width (21mm Inner)
Wider tires 28mm offer most riders a more comfortable, stable, and practical choice. Modern bike designs increasingly favor wider tires, reflecting this trend.
Recommended Use Cases
Road Cycling: Speed + Comfort Balance
Gravel/Adventure: Mixed-terrain Readiness
Commuting/Touring: Durable and Smooth
Weight* |
Standard: 1600g, Pro: 1450g |
Rim |
700c Carbon Clincher Tubeless ready |
Rim Weight* |
Standard: 465g±15g, Pro:430g±10g |
Rim Depth |
50mm |
Internal Rim Width |
21mm |
ERD |
540 |
Brake Track |
None |
Tire Mount Width |
700x25C-28C |
Rim External Width |
28mm |
Offset |
≤ 0.2mm |
Roundness |
≤ 0.2mm |
Tubeless |
Compatible |
Valve Balanced |
Yes |
Rim Finish |
Gloss Silver to Blue Gradient Ice Crack |

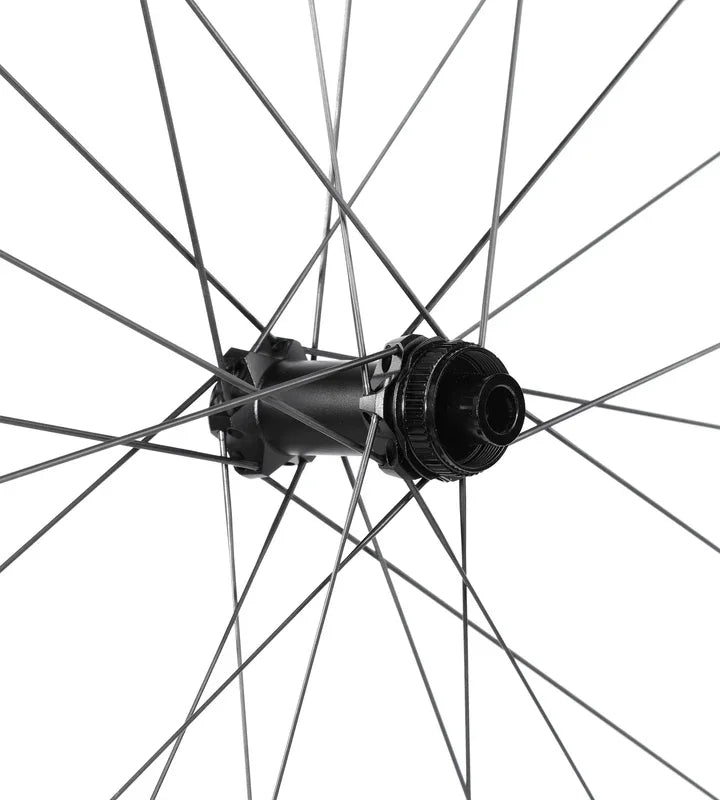

Hub |
VAPOR 3 DISC or VAPOR 3 DISC Pro |
Axle Options |
Thru-Axle: 12x100mm/12x142mm , QR9x100mm/10*135mm |
Disc Rotor Compatibility |
Center-Lock |

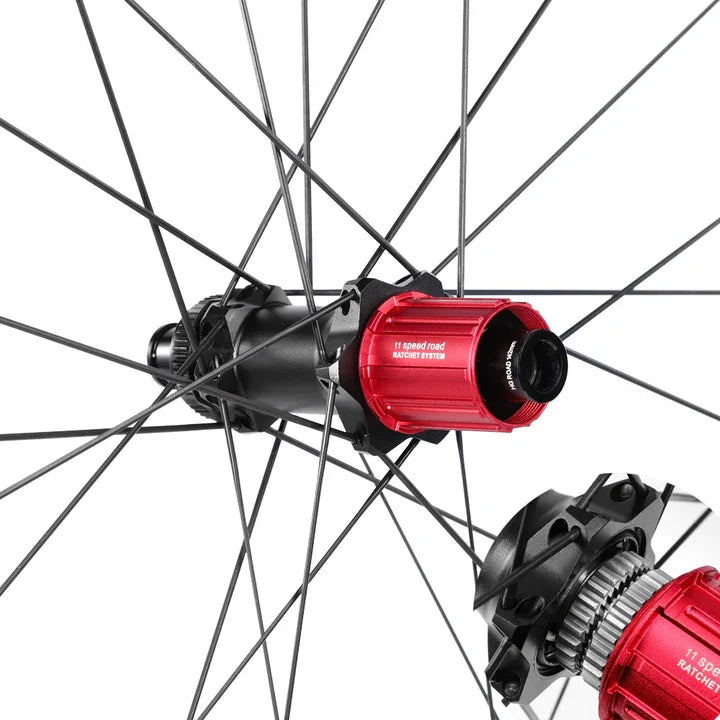

Free Hub |
Shimano HG, SRAM XDR,Campagnolo, Shimano Microspline |
Bearing Type |
Standard: Cartridge - Steel Balls, Pro: TPI Cartridge - Ceramic Balls |
Bearing numbers |
VAPOR 3 Disc (Pro): F 6902LLU (2), R 6902LLU (1), 6902LB (1), 6802LU (1), 6802LLU (1) |
Spokes |
Standard: Pillar Wing 20 Striaght-Pull (Black), Pro: Tokyowheel Carbon Straigh-Pull (Carbon) |
Spoke Count |
Front: 24, Rear: 24 |
Spoke Pattern |
Front: 2x, Rear: 2x |
Max spoke tension (kgf) |
F 125, R 90/130 |
Nipples |
Pillar Brass (black) |
Recommended Tire |
Continental GP5000s (25mm x 700c or 28mm x 700c) |
Recommended Tire Pressure |
110 psi |
Max Tire Pressure |
140 psi |
Rider Weight Limit |
254lbs / 115kg |
Included Accessories |
Titanium QR Skewers (for QR hubs), Nylon Rim Strips (applied), Valve Extensions, Spacer |
Engineering |
Tokyowheel |
Generation |
5th |
Note |
* Weights are subject to a +/- 15% variance |
